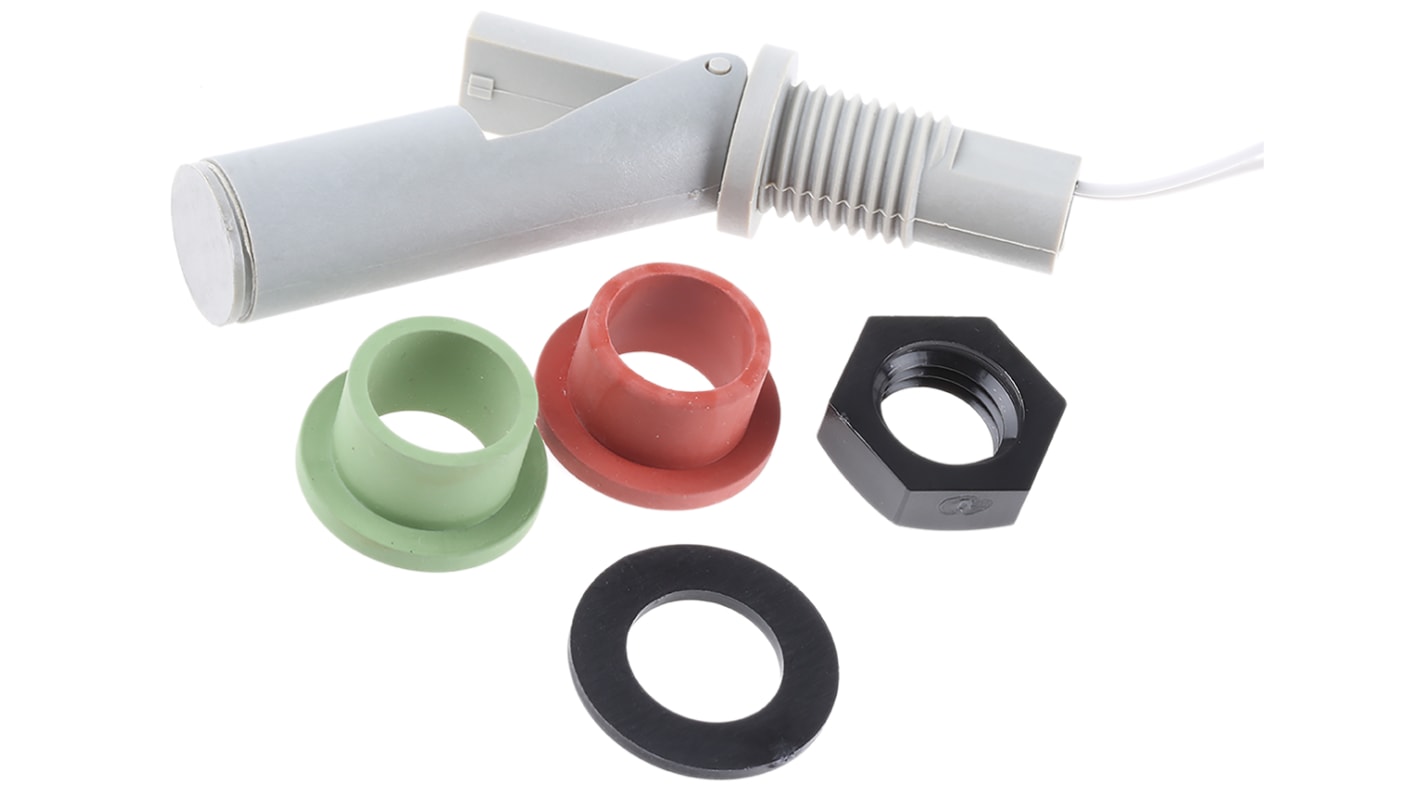

Use this horizontal float switch from Sensata Cynergy3 to monitor liquid levels in a tank. It consists of an actuator magnet that pivots as liquid rises or falls and a reed switch that closes or opens in response to changes in the magnetic field. The switch is designed for mounting on the outside of a tank, so no internal access is required. An ample cable length of 1m ensures a flexible electrical connection. This type of switch is commonly used in commercial dishwashers, vending machines and auxiliary tanks on vehicles.

• Wide operating temperature range of -10°C to +120°C for use in demanding conditions
• Made of PPS (polyphenylene sulfide) for chemical and corrosion resistance

To mount the switch, drill a 23mm hole in the tank and insert the switch horizontally from the outside.

This product protects your tank against leaks thanks to a gasket with a back nut for a tight seal. The gasket is made of Viton, a synthetic rubber that's resistant to chemicals and mould for reliable performance over a long lifespan.
