Sensata Cynergy3 RSF70 Series Horizontal Polyvinylidene Fluoride Float Switch, Float, 1m Cable, NO/NC, 300V ac Max,

View all Float Switches

Subtotal (1 unit)*

£50.56

(exc. VAT)

£60.67

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • 3 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
1 +£50.56

*price indicative

RS Stock No.:
124-2581
Mfr. Part No.:
RSF77H100GV/RS
Brand:
Sensata / Cynergy3
Find similar products by selecting one or more attributes.
Select all

Brand

Sensata / Cynergy3

Device Type

Float

Mounting Type

Horizontal

Switch Output

NO/NC

Body Material

Polyvinylidene Fluoride

Cable Length

1m

Minimum Operating Temperature

-10°C

Maximum Operating Temperature

+105°C

Maximum AC Voltage

300V

Maximum DC Voltage

300V

Maximum Current

1 A

Gasket Material

Viton

Series

RSF70

Standards Met

UL File No.E171218

COO (Country of Origin):
CN

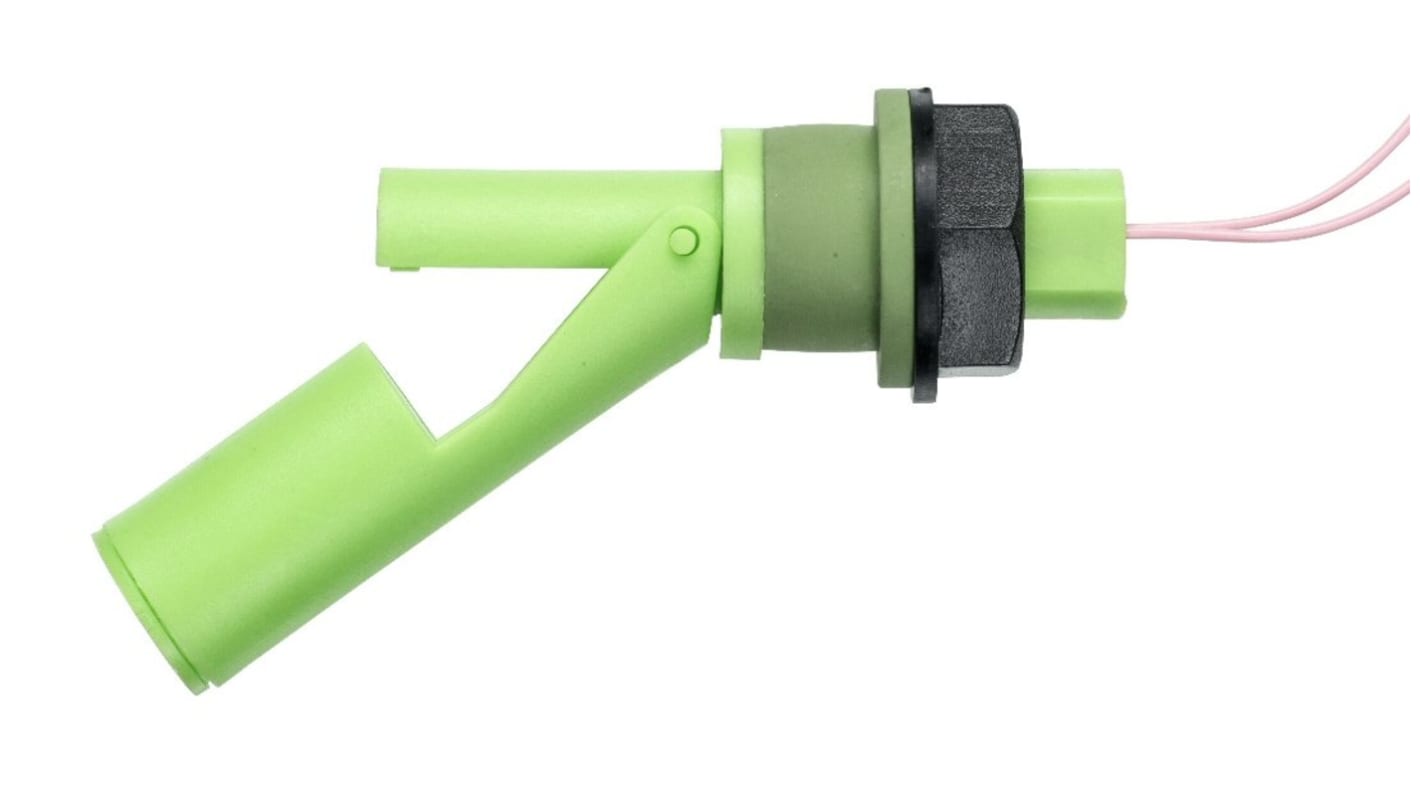

Sensata Cynergy3 Horizontal Float Switch, 1m Cable, 300V AC/DC - RSF70 Series - RSF77H100GV/RS


This horizontal float switch from Sensata Cynergy3 helps you monitor and regulate liquid levels in your industrial and commercial tanks. It's made of polyvinylidene fluoride (PVDF), meaning it's resistant to chemicals such as solvents, acids and bases. Thanks to its wide operating temperature range of -10°C to +105°C, it's suitable for use in demanding environments. A float switch like this one is frequently used in commercial dishwashers, auxiliary vehicle tanks and vending machines.

Features & Benefits


• Switch function can be changed from NO to NC by rotating the switch 180° during installation for versatility
• Viton gasket is resistant to chemicals and wear to ensure an effective, leakproof seal
• Maximum switching current of 1A for energy-efficient operation

When would I use a horizontal float switch?


A horizontal float switch is a suitable solution when access to the top or bottom of the tank is difficult or impossible. This float switch is designed for mounting from the outside of the tank wall, so there's no need to access the interior of the tank.
