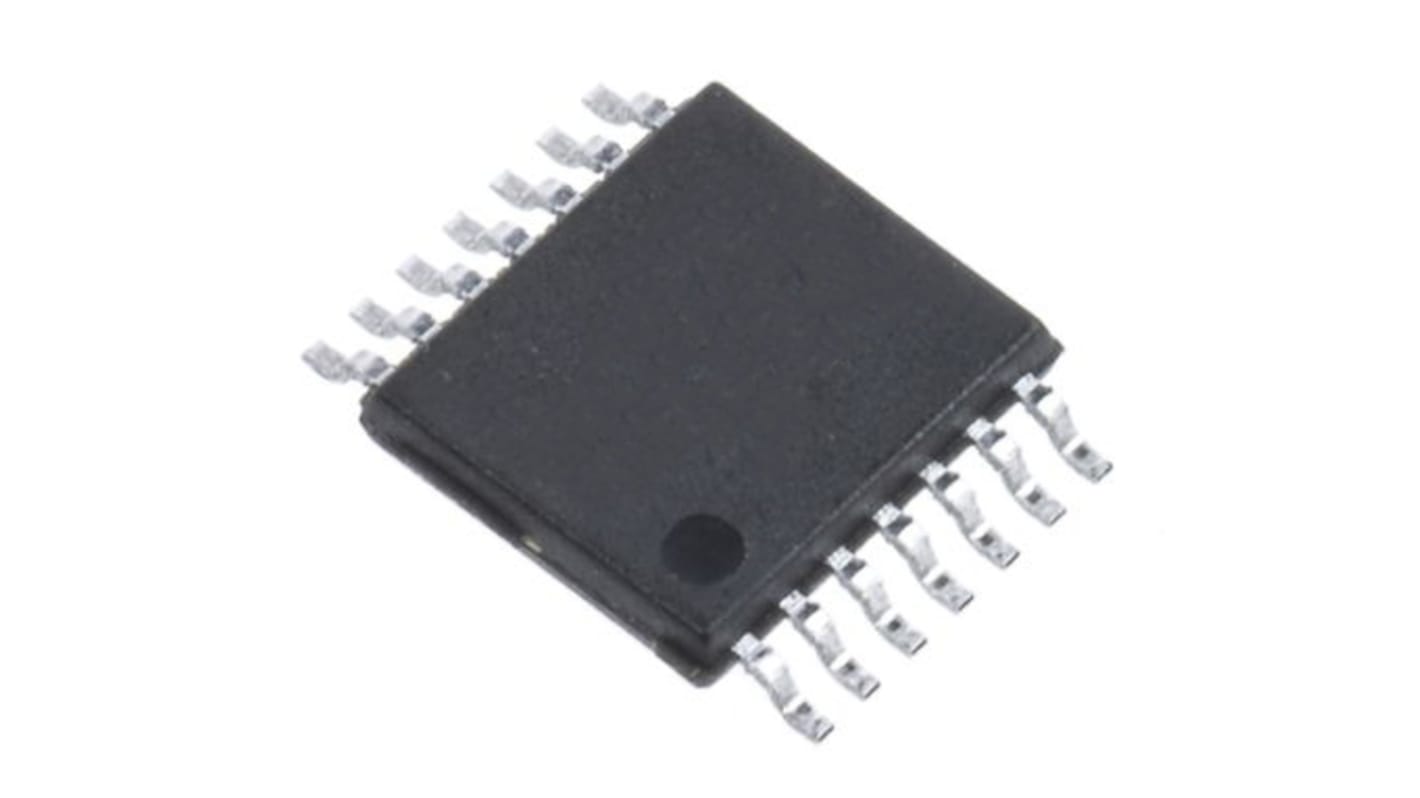

onsemi MC74HC74ADTR2G D Flip-Flop Flip Flop IC, CMOS, LSTTL, NMOS, TTL, 14-Pin TSSOP
- RS Stock No.:
- 184-4800
- Mfr. Part No.:
- MC74HC74ADTR2G
- Brand:
- onsemi
Bulk discount available
Subtotal (1 pack of 100 units)*
£18.40
(exc. VAT)
£22.10
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 4,500 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
|---|---|---|
| 100 - 400 | £0.184 | £18.40 |
| 500 - 900 | £0.159 | £15.90 |
| 1000 + | £0.138 | £13.80 |
*price indicative
- RS Stock No.:
- 184-4800
- Mfr. Part No.:
- MC74HC74ADTR2G
- Brand:
- onsemi
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | onsemi | |
| Logic Family | 74HC | |
| Logic Function | D Flip-Flop | |
| Input Type | Single Ended | |
| Output Type | CMOS, LSTTL, NMOS, TTL | |
| Output Signal Type | D Type Flip-Flop | |
| Triggering Type | Positive Edge | |
| Mounting Type | Surface Mount | |
| Package Type | TSSOP | |
| Pin Count | 14 | |
| Set/Reset | Set/Reset | |
| Number of Elements per Chip | 1 | |
| Maximum Propagation Delay Time @ Maximum CL | 150ns | |
| Maximum Operating Supply Voltage | 6 V | |
| Dimensions | 5.1 x 4.5 x 1.2mm | |
| Minimum Operating Supply Voltage | 2 V | |
| Minimum Operating Temperature | -55 °C | |
| Maximum Operating Temperature | +125 °C | |
| Width | 4.5mm | |
| Propagation Delay Test Condition | 50pF | |
| Height | 1.2mm | |
| Length | 5.1mm | |
| Automotive Standard | AEC-Q100 | |
Select all | ||
|---|---|---|
Brand onsemi | ||
Logic Family 74HC | ||
Logic Function D Flip-Flop | ||
Input Type Single Ended | ||
Output Type CMOS, LSTTL, NMOS, TTL | ||
Output Signal Type D Type Flip-Flop | ||
Triggering Type Positive Edge | ||
Mounting Type Surface Mount | ||
Package Type TSSOP | ||
Pin Count 14 | ||
Set/Reset Set/Reset | ||
Number of Elements per Chip 1 | ||
Maximum Propagation Delay Time @ Maximum CL 150ns | ||
Maximum Operating Supply Voltage 6 V | ||
Dimensions 5.1 x 4.5 x 1.2mm | ||
Minimum Operating Supply Voltage 2 V | ||
Minimum Operating Temperature -55 °C | ||
Maximum Operating Temperature +125 °C | ||
Width 4.5mm | ||
Propagation Delay Test Condition 50pF | ||
Height 1.2mm | ||
Length 5.1mm | ||
Automotive Standard AEC-Q100 | ||
- COO (Country of Origin):
- PH
High-Performance Silicon-Gate CMOS, The MC574HC74A is identical in pin out to the LS74. The device inputs are compatible with standard CMOS outputs, with pullup resistors, they are compatible with LSTTL outputs. This device consists of two D flip-flops with individual Set, Reset, and Clock inputs. Information at a D-input is transferred to the corresponding Q output on the next positive going edge of the clock input. Both Q and Qbar outputs are available from each flip-flop. The Set and Reset inputs are asynchronous.
Output Drive Capability: 10 LSTTL Loads
Outputs Directly Interface to CMOS, NMOS, and TTL
Operating Voltage Range: 2.0 to 6.0 V
Low Input Current: 1.0 mA
High Noise Immunity Characteristic of CMOS Devices
Chip Complexity: 128 FETs or 32 Equivalent Gates
Outputs Directly Interface to CMOS, NMOS, and TTL
Operating Voltage Range: 2.0 to 6.0 V
Low Input Current: 1.0 mA
High Noise Immunity Characteristic of CMOS Devices
Chip Complexity: 128 FETs or 32 Equivalent Gates
