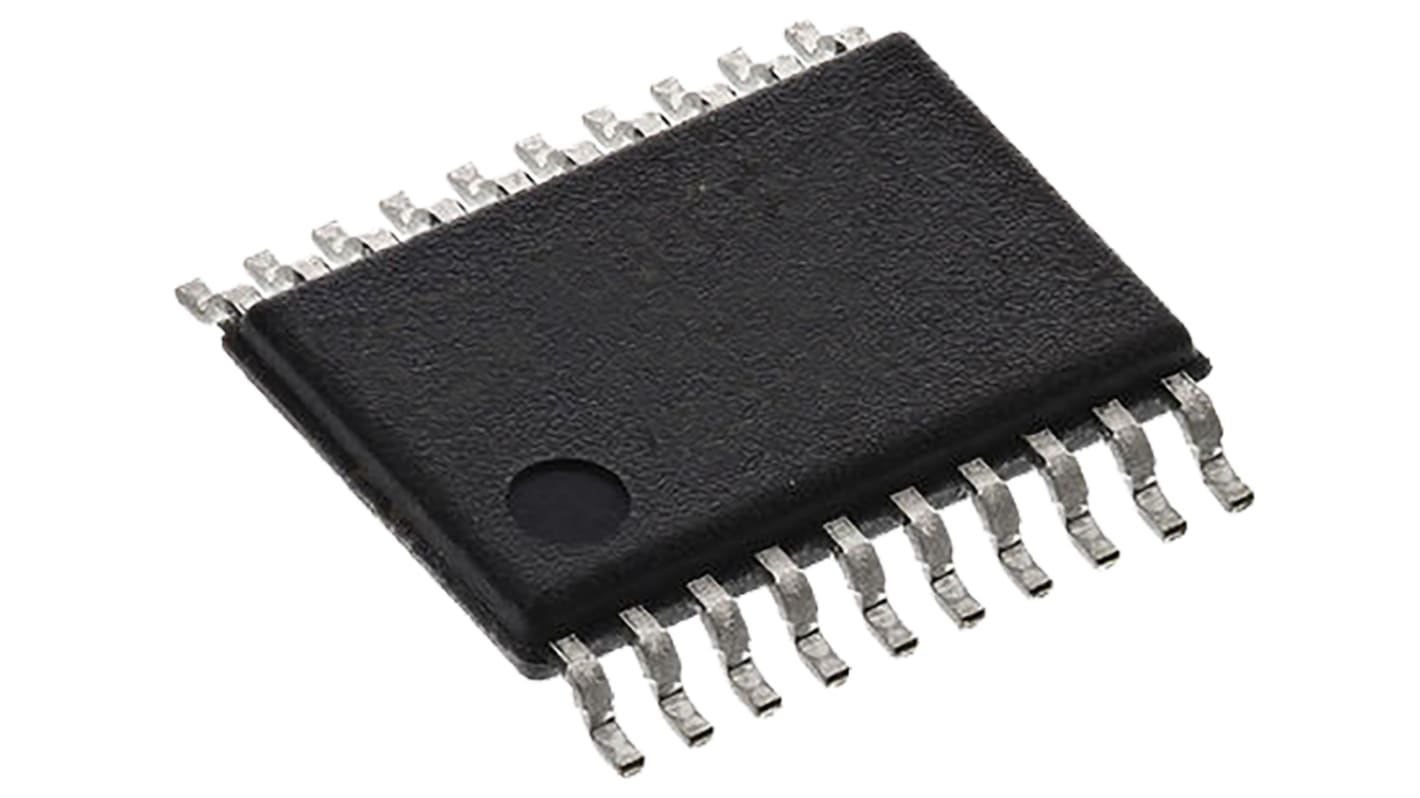

Texas Instruments SN74ACT574PW Octal D Type Flip Flop IC, 3-State, 20-Pin TSSOP

View all Flip Flop ICs
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
RS Stock No.:
168-4302
Mfr. Part No.:
SN74ACT574PW
Brand:
Texas Instruments
Find similar products by selecting one or more attributes.
Select all

Brand

Texas Instruments

Logic Family

74AC

Logic Function

D Type

Input Type

TTL

Output Type

3 State

Output Signal Type

Single Ended

Triggering Type

Positive Edge

Polarity

Non-Inverting

Mounting Type

Surface Mount

Package Type

TSSOP

Pin Count

20

Number of Elements per Chip

8

Maximum Propagation Delay Time @ Maximum CL

12 ns @ 50 pF

Dimensions

6.6 x 4.5 x 1.05mm

Maximum Operating Supply Voltage

5.5 V

Minimum Operating Supply Voltage

4.5 V

Propagation Delay Test Condition

50pF

Minimum Operating Temperature

-40 °C

Length

6.6mm

Width

4.5mm

Height

1.05mm

Maximum Operating Temperature

+85 °C

COO (Country of Origin):
MY

74ACT Family, Flip-Flop/Latch/Shift Register, Texas Instruments


Advanced CMOS Logic
Operating Voltage: 4.5 to 5.5
Compatibility: Input TTL, Output CMOS


74ACT Family
