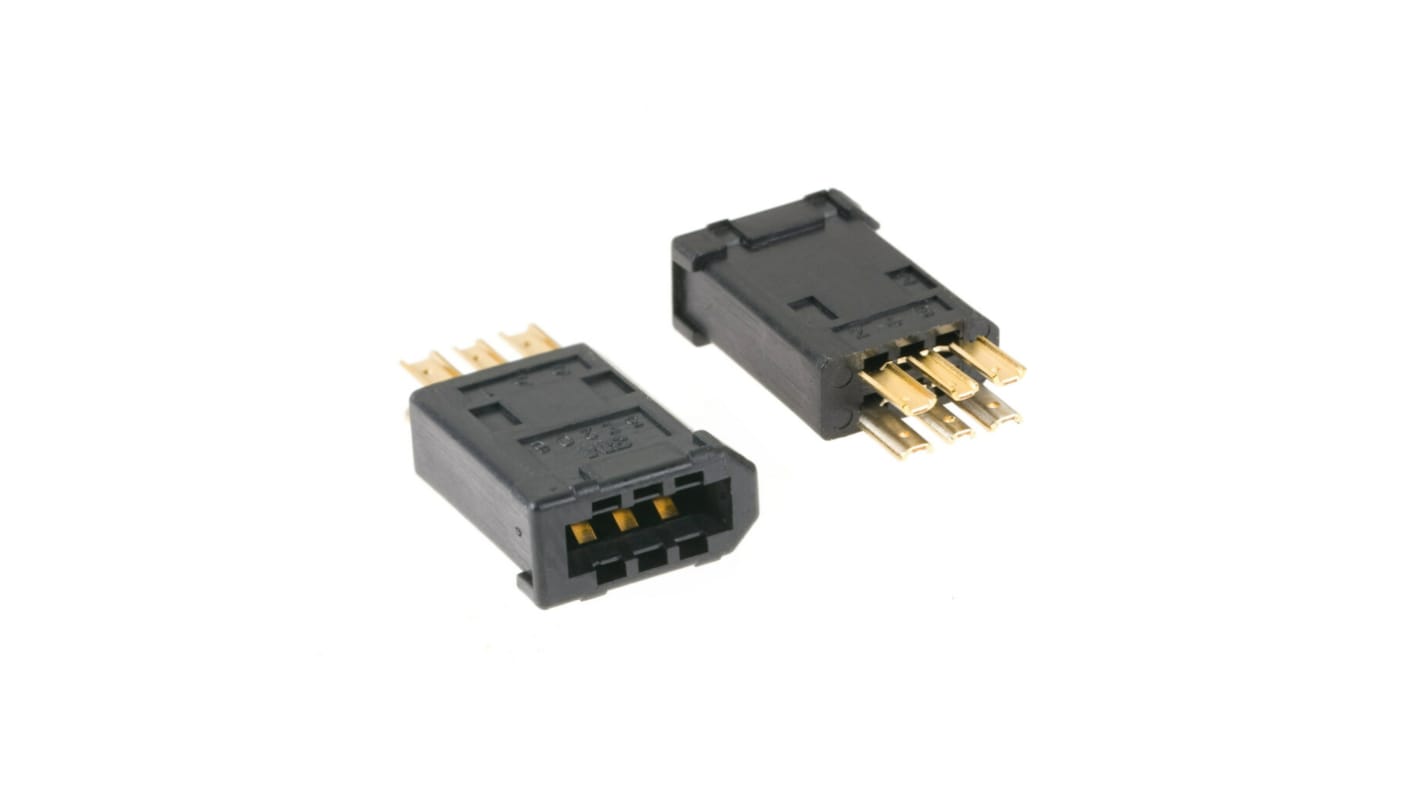

3M, 3E206 6 Way Straight Wire I/O Firewire Connector Female
- RS Stock No.:
- 276-9468
- Distrelec Article No.:
- 142-90-982
- Mfr. Part No.:
- 7000007657
- Brand:
- 3M
Subtotal (1 unit)*
£4.34
(exc. VAT)
£5.21
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- 345 unit(s) shipping from 09 March 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £4.34 |
*price indicative
- RS Stock No.:
- 276-9468
- Distrelec Article No.:
- 142-90-982
- Mfr. Part No.:
- 7000007657
- Brand:
- 3M
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | 3M | |
| Product Type | I/O Firewire Connector | |
| Number of Contacts | 6 | |
| Mount Type | Wire | |
| Current | 1A | |
| Orientation | Straight | |
| Contact Material | Copper Alloy | |
| Connector Gender | Female | |
| Contact Plating | Nickel | |
| Voltage | 150 V ac, 200 V dc | |
| Minimum Operating Temperature | -55°C | |
| Termination Type | Solder | |
| Maximum Operating Temperature | 85°C | |
| Standards/Approvals | EU Directive 2002/95/EC | |
| Series | 3E206 | |
| Select all | ||
|---|---|---|
Brand 3M | ||
Product Type I/O Firewire Connector | ||
Number of Contacts 6 | ||
Mount Type Wire | ||
Current 1A | ||
Orientation Straight | ||
Contact Material Copper Alloy | ||
Connector Gender Female | ||
Contact Plating Nickel | ||
Voltage 150 V ac, 200 V dc | ||
Minimum Operating Temperature -55°C | ||
Termination Type Solder | ||
Maximum Operating Temperature 85°C | ||
Standards/Approvals EU Directive 2002/95/EC | ||
Series 3E206 | ||
RoHS Status: Exempt
- COO (Country of Origin):
- CN
The 3M I/O interconnect system is designed to mate to all I/O interconnect system 2.0 mm for IEEE 1394 board mount plugs. It polarized to provide proper insertion. It has robust ribbon style contact for reliable, repetitive plugging.
Vibration resistant
Solder termination for quick assembly with no dedicated tooling
