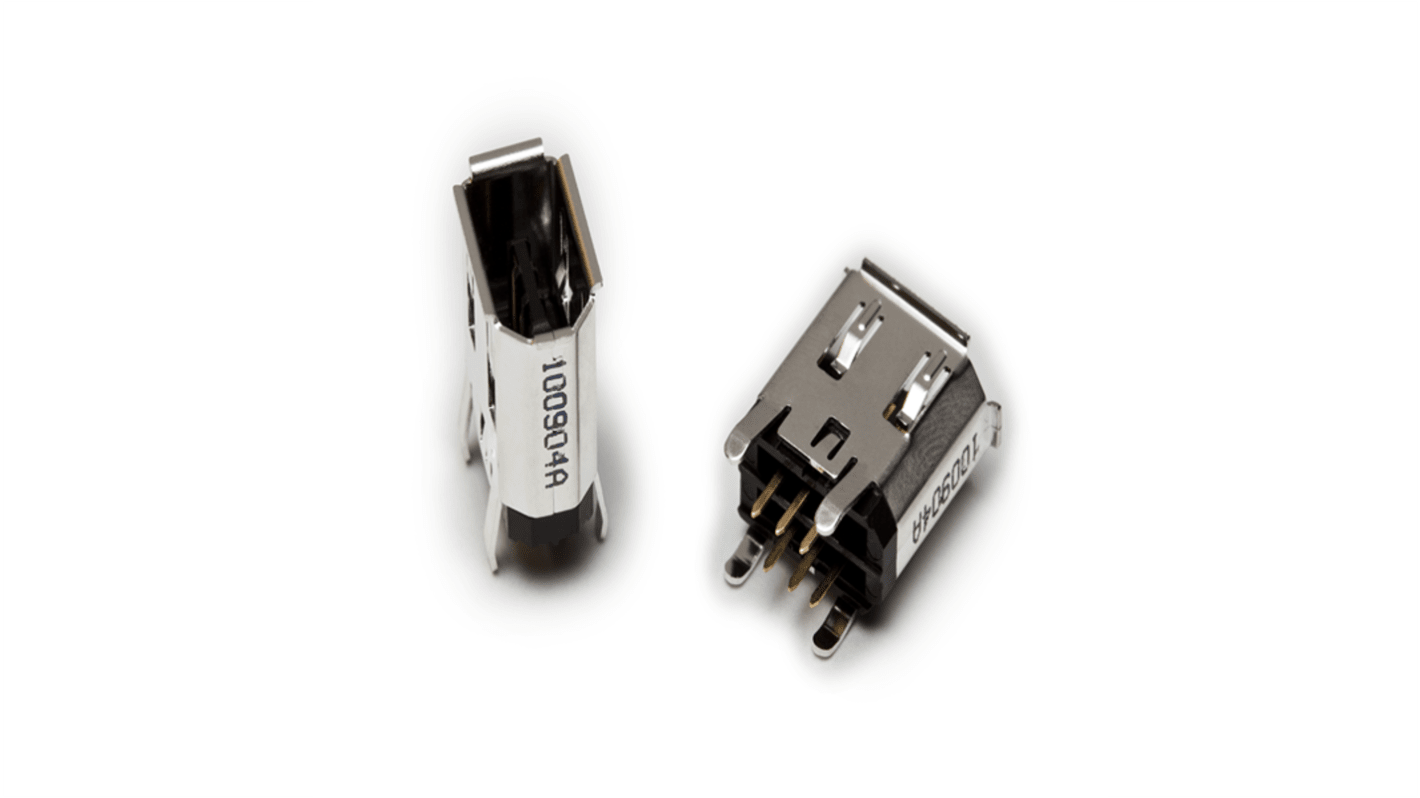

3M, 3E106 6 Way Right Angle Board I/O Firewire Connector Female
- RS Stock No.:
- 624-403
- Mfr. Part No.:
- 3E106-1230 KV
- Brand:
- 3M
Subtotal (1 unit)*
£1.41
(exc. VAT)
£1.69
(inc. VAT)
FREE delivery for orders over £60.00
Temporarily out of stock
- Shipping from 30 October 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £1.41 |
*price indicative
- RS Stock No.:
- 624-403
- Mfr. Part No.:
- 3E106-1230 KV
- Brand:
- 3M
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | 3M | |
| Product Type | I/O Firewire Connector | |
| Number of Contacts | 6 | |
| Current | 1A | |
| Mount Type | Board | |
| Orientation | Right Angle | |
| Contact Material | Copper Alloy | |
| Connector Gender | Female | |
| Contact Plating | Gold or Tin over Nickel | |
| Voltage | 150, 200V ac | |
| Termination Type | Solder | |
| Minimum Operating Temperature | -55°C | |
| Maximum Operating Temperature | 85°C | |
| Standards/Approvals | IEEE 1394, UL 94V-0, RoHS 2005/95/EC | |
| Series | 3E106 | |
| Select all | ||
|---|---|---|
Brand 3M | ||
Product Type I/O Firewire Connector | ||
Number of Contacts 6 | ||
Current 1A | ||
Mount Type Board | ||
Orientation Right Angle | ||
Contact Material Copper Alloy | ||
Connector Gender Female | ||
Contact Plating Gold or Tin over Nickel | ||
Voltage 150, 200V ac | ||
Termination Type Solder | ||
Minimum Operating Temperature -55°C | ||
Maximum Operating Temperature 85°C | ||
Standards/Approvals IEEE 1394, UL 94V-0, RoHS 2005/95/EC | ||
Series 3E106 | ||
RoHS Status: Exempt
- COO (Country of Origin):
- CN
The 3M Interconnect System 2.0 mm is a board-mount straight (vertical) through-hole plug designed for IEEE 1394 applications. It features six contacts that can carry signal or power, ensuring reliable connectivity. The connector includes body tabs for lateral support, shield grounding, and vibration resistance, making it suitable for demanding environments.
360 degree shielding for excellent EMI protection
Polarized to provide proper cable insertion
