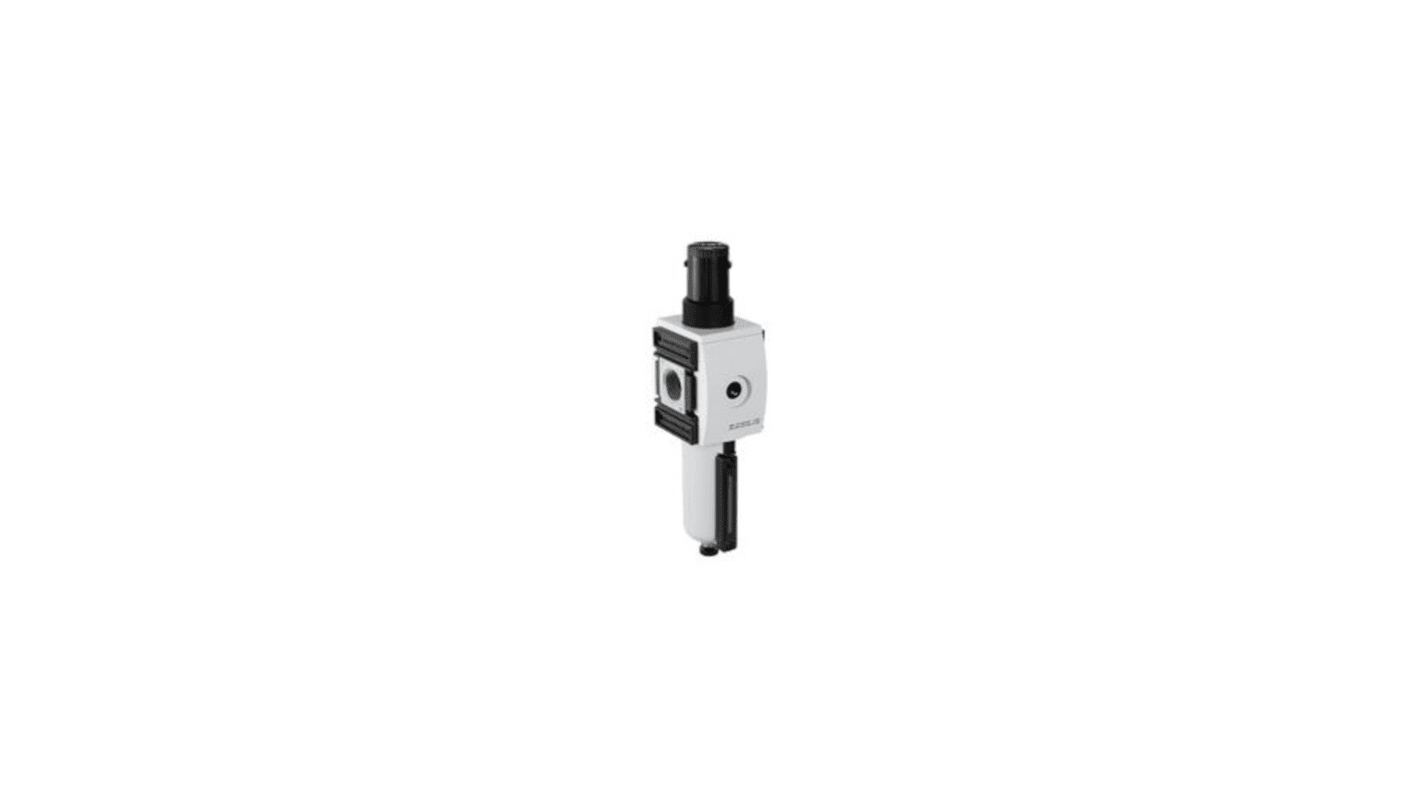

EMERSON – AVENTICS AS2-FRE Filter Regulator, 25 μm, 1/4 in, Semi Automatic, 16 bar
- RS Stock No.:
- 703-6122
- Mfr. Part No.:
- R412006218
- Brand:
- EMERSON ? AVENTICS
Bulk discount available
View bulk pricing optionsSubtotal (1 unit)*
£85.73
(exc. VAT)
£102.88
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- 1 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 4 | £85.73 |
| 5 + | £83.07 |
*price indicative
- RS Stock No.:
- 703-6122
- Mfr. Part No.:
- R412006218
- Brand:
- EMERSON ? AVENTICS
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | EMERSON ? AVENTICS | |
| Product Type | Filter Regulator | |
| Port Size | 1/4 in | |
| Maximum Flow Rate | 2100L/min | |
| Maximum Operating Pressure | 16 bar | |
| Connection Thread Standard | G | |
| Series | AS2-FRE | |
| Drain Type | Semi Automatic | |
| Filtration Size | 25μm | |
| Overall Length | 52mm | |
| Pressure Gauge Port Size | 1/4 in | |
| Minimum Operating Temperature | -10°C | |
| Maximum Operating Temperature | 50°C | |
| Overall Height | 238.4mm | |
| Standards/Approvals | RoHS | |
| Overall Width | 59mm | |
| Bowl Material | Plastic | |
| Pressure Gauge Port Thread Standard | G | |
| Pressure Setting Range | 0.5 to 16 bar | |
| Select all | ||
|---|---|---|
Brand EMERSON ? AVENTICS | ||
Product Type Filter Regulator | ||
Port Size 1/4 in | ||
Maximum Flow Rate 2100L/min | ||
Maximum Operating Pressure 16 bar | ||
Connection Thread Standard G | ||
Series AS2-FRE | ||
Drain Type Semi Automatic | ||
Filtration Size 25μm | ||
Overall Length 52mm | ||
Pressure Gauge Port Size 1/4 in | ||
Minimum Operating Temperature -10°C | ||
Maximum Operating Temperature 50°C | ||
Overall Height 238.4mm | ||
Standards/Approvals RoHS | ||
Overall Width 59mm | ||
Bowl Material Plastic | ||
Pressure Gauge Port Thread Standard G | ||
Pressure Setting Range 0.5 to 16 bar | ||
RoHS Status: Exempt
- COO (Country of Origin):
- DE
AS Series Filter Regulator
Diaphragm type pressure regulator with relieving air exhaust
Temperature range -10 → +50°C
Drain sprung open with pressure off
Padlock lockable
ATEX Certified II 2G2D T4 X
AS Series FRL
The AS range of air preparation units may be used as single elements or in combination units using joining accessories
