EMERSON – AVENTICS NL1-FRE Filter Regulator, 5 μm, 1/4 in G, Semi Automatic, 16 bar

RS Stock No.:: 703-6053
Mfr. Part No.:: 0821300756
Brand:: EMERSON ? AVENTICS

EMERSON – AVENTICS NL1-FRE Filter Regulator, 5 μm, 1/4 in G, Semi Automatic, 16 bar

View all Filter Regulators

Bulk discount available

View bulk pricing options

Subtotal (1 unit)*

£80.94

(exc. VAT)

£97.13

(inc. VAT)

FREE delivery for orders over £60.00

In Stock

13 unit(s) ready to ship
Plus 24 unit(s) ready to ship from another location

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units	Per unit
1 - 4	£80.94
5 +	£78.42

*price indicative

RS Stock No.:: 703-6053
Mfr. Part No.:: 0821300756
Brand:: EMERSON ? AVENTICS

Specifications

Technical Reference

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	EMERSON ? AVENTICS
	Port Size	1/4 in G
	Product Type	Filter Regulator
	Maximum Operating Pressure	16 bar
	Series	NL1-FRE
	Connection Thread Standard	G
	Drain Type	Semi Automatic
	Filtration Size	5μm
	Overall Length	40mm
	Pressure Gauge Port Size	1/4 in
	Minimum Operating Temperature	-10°C
	Maximum Operating Temperature	60°C
	Overall Width	40mm
	Standards/Approvals	RoHS
	Overall Height	165mm
	Pressure Gauge Port Thread Standard	G
	Pressure Setting Range	0.5 to 16 bar
	Bowl Material	Plastic

	Select all
	Brand EMERSON ? AVENTICS
	Port Size 1/4 in G
	Product Type Filter Regulator
	Maximum Operating Pressure 16 bar
	Series NL1-FRE
	Connection Thread Standard G
	Drain Type Semi Automatic
	Filtration Size 5μm
	Overall Length 40mm
	Pressure Gauge Port Size 1/4 in
	Minimum Operating Temperature -10°C
	Maximum Operating Temperature 60°C
	Overall Width 40mm
	Standards/Approvals RoHS
	Overall Height 165mm
	Pressure Gauge Port Thread Standard G
	Pressure Setting Range 0.5 to 16 bar
	Bowl Material Plastic

Filter pressure regulator, Series NL1-FRE Data Sheet

RoHS Status: Exempt

COO (Country of Origin):: DE

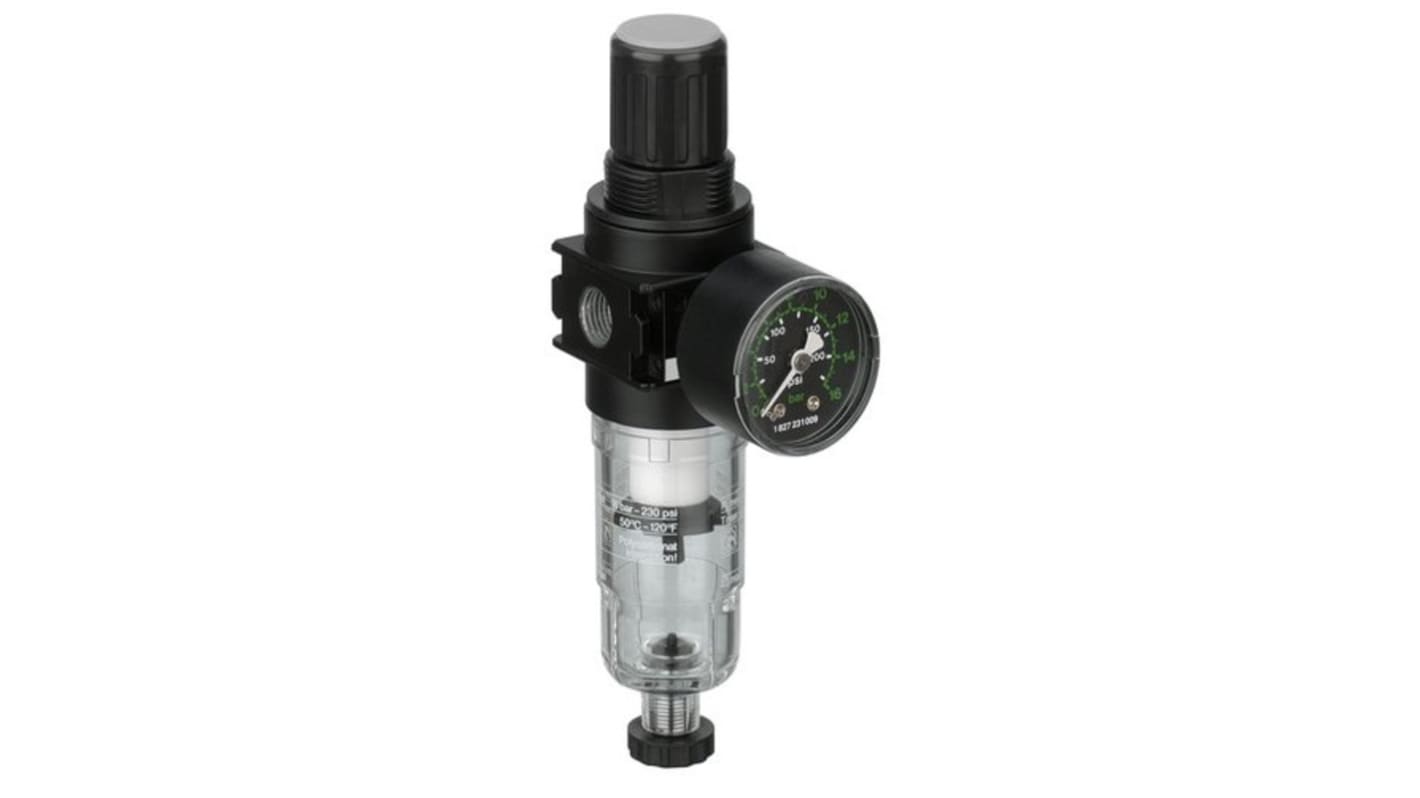

Aventics Filter Regulator

The Aventics 5μm pneumatic filter regulator has a G 1/4in port connection and a maximum operating pressure of 16bar. The regulator has a die-cast zinc housing, an ABS seal and a polyethylene filter insert. It is installed vertically with a single pressure supply.

Features and Benefits

Lockable regulator head

Maximum particle count at the outlet is 5 mg/m³

Operating temperature ranging between -10°C and 60°C

Pressure dew point must be at least 15°C under ambient and medium temperature and may not exceed 3°C

Relieving air exhaust

Semi-automatic drain

Certifications

ATEX certified

ISO 8573-4
