EMERSON – AVENTICS AS2-ACD Filter Regulator, 5 μm, 1/4 in, Semi Automatic, 16 bar

RS Stock No.:: 703-6081
Mfr. Part No.:: R412006298
Brand:: EMERSON ? AVENTICS

EMERSON – AVENTICS AS2-ACD Filter Regulator, 5 μm, 1/4 in, Semi Automatic, 16 bar

View all Filter Regulators

Get a bulk buy discount

Add 5 more to save 3%

View bulk pricing options

Subtotal (1 unit)*

£158.48

(exc. VAT)

£190.18

(inc. VAT)

FREE delivery for orders over £60.00

In Stock

Plus 2 unit(s) shipping from 09 November 2026

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units	Per unit	Saving
1 - 4	£158.48	-
5 +	£153.72	3%

*price indicative

RS Stock No.:: 703-6081
Mfr. Part No.:: R412006298
Brand:: EMERSON ? AVENTICS

Specifications

Technical Reference

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	EMERSON ? AVENTICS
	Product Type	Filter Regulator
	Port Size	1/4 in
	Maximum Operating Pressure	16 bar
	Maximum Flow Rate	1800L/min
	Series	AS2-ACD
	Connection Thread Standard	G
	Drain Type	Semi Automatic
	Filtration Size	5μm
	Overall Length	105mm
	Pressure Gauge Port Size	1/4 in
	Minimum Operating Temperature	-10°C
	Maximum Operating Temperature	50°C
	Overall Height	238.4mm
	Overall Width	59mm
	Standards/Approvals	RoHS
	Pressure Setting Range	0.5 → 16 bar
	Pressure Gauge Port Thread Standard	G

	Select all
	Brand EMERSON ? AVENTICS
	Product Type Filter Regulator
	Port Size 1/4 in
	Maximum Operating Pressure 16 bar
	Maximum Flow Rate 1800L/min
	Series AS2-ACD
	Connection Thread Standard G
	Drain Type Semi Automatic
	Filtration Size 5μm
	Overall Length 105mm
	Pressure Gauge Port Size 1/4 in
	Minimum Operating Temperature -10°C
	Maximum Operating Temperature 50°C
	Overall Height 238.4mm
	Overall Width 59mm
	Standards/Approvals RoHS
	Pressure Setting Range 0.5 → 16 bar
	Pressure Gauge Port Thread Standard G

RoHS Status: Exempt

COO (Country of Origin):: DE

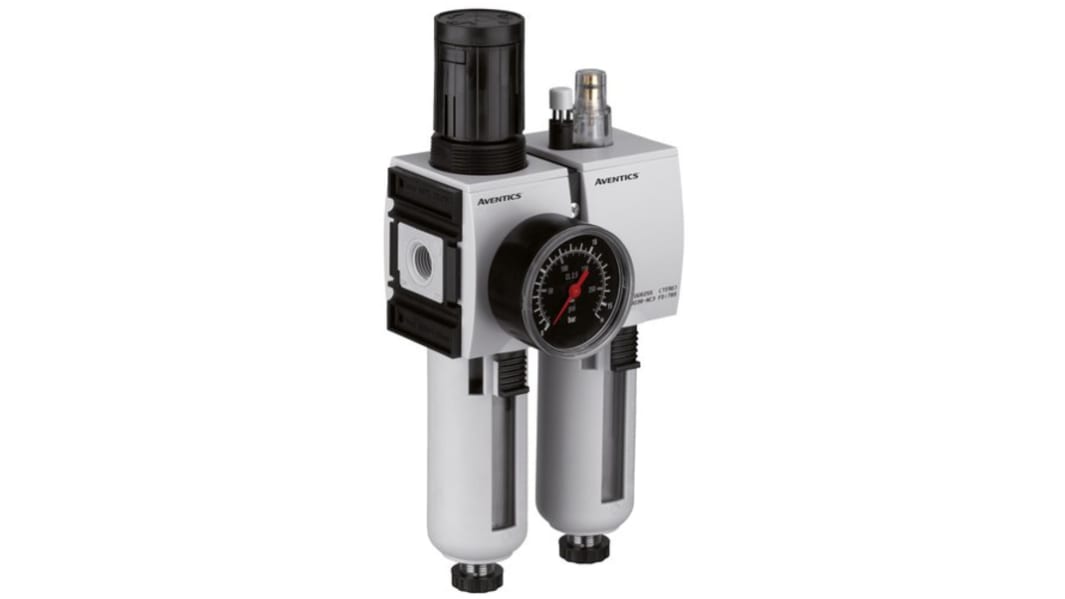

Emerson AS2-ACD Series Filter Regulator, 5μm Filtration Size, 0.5 to 16 bar Pressure Setting Range - R412006298

This filter regulator conditions compressed Air by combining particulate filtration with pressure control for pneumatic systems. It operates across typical workshop temperatures and connects using G-thread ports to integrate with industrial Air preparation assemblies. The unit accepts a broad inlet pressure span and provides a visible gauge connection for monitoring.

Features and Benefits:

• 5μm filtration removes fine particulates, protecting downstream components
• 0.5 to 16 bar adjustable pressure range enables precise pressure control
• 1800 L/min maximum flow supports high-demand Air delivery
• Semi-automatic drain reduces manual maintenance interventions
• Pressure gauge port sized 1/4 in for direct instrumentation attachment

Applications

• Suitable for machine tool compressed Air supply lines
• Ideal for pneumatic valve and actuator protection
• Used with production-line Air preparation modules
• Can be used for general workshop Air distribution systems
• Used for equipment requiring visible pressure monitoring

What thread standard does the unit use for pipe connections?

It uses the G-thread standard for both port and gauge thread connections.

What operating temperature range can be expected?

It is rated for operation from -10°C up to 50°C.

How tall is the unit and does the size suit Compact installations?

The overall height is 238.4 mm, which supports Compact vertical mounting.

What is the maximum allowable inlet pressure?

The maximum operating pressure is 16 bar.

Is there any environmental compliance noted for the product?

It is stated to be RoHS compliant.
