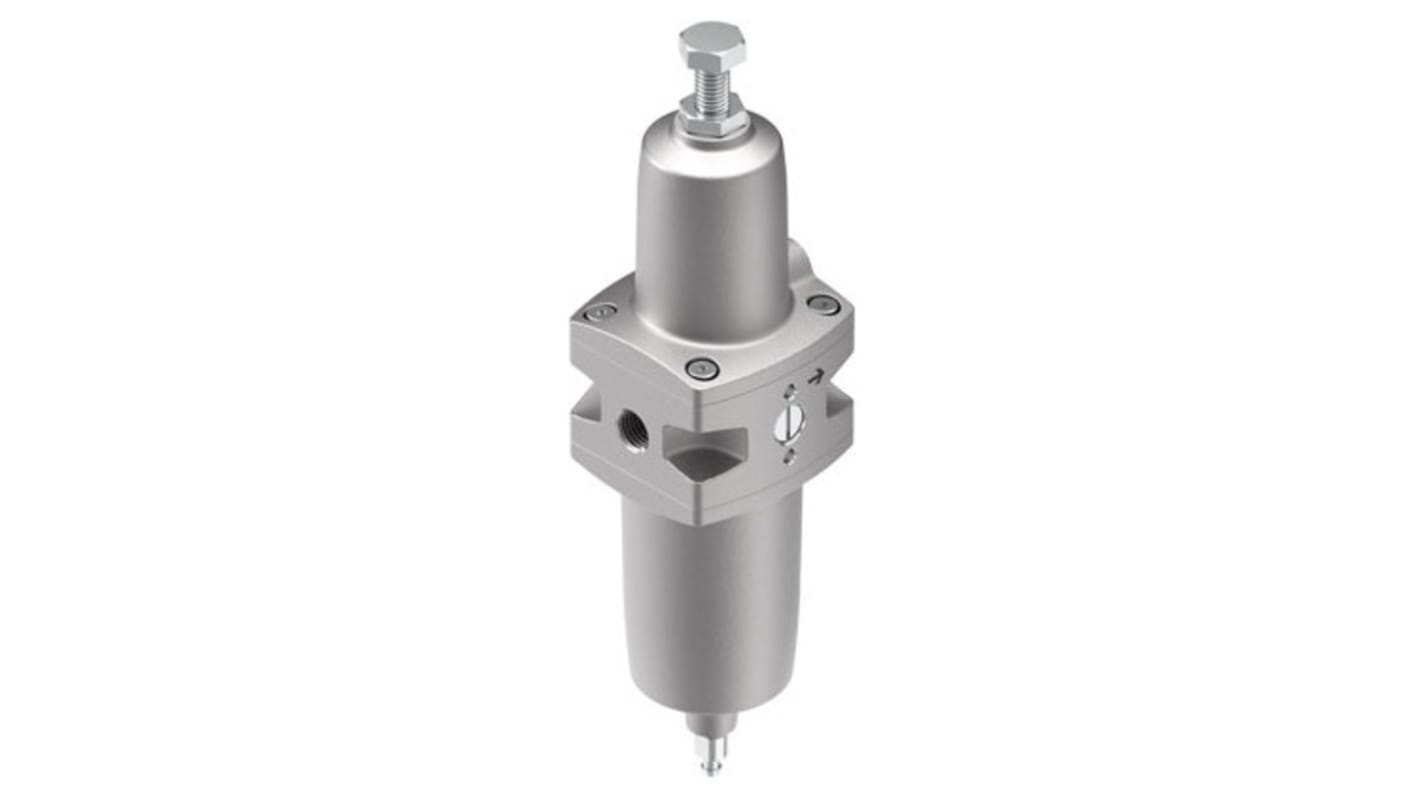

Festo P Stainless Steel Filter Regulator, 40μm, NPT 1/4-18, Manual, 20 bar, 5394667

RS Stock No.:: 288-2890
Mfr. Part No.:: PCRP-64-N14-7-E-R1-M-T19
Brand:: Festo

Festo P Stainless Steel Filter Regulator, 40μm, NPT 1/4-18, Manual, 20 bar, 5394667

Subtotal (1 unit)*

£304.03

(exc. VAT)

£364.84

(inc. VAT)

FREE delivery for orders over £50.00

Temporarily out of stock

Shipping from 02 February 2026

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units	Per unit
1 +	£304.03

*price indicative

RS Stock No.:: 288-2890
Mfr. Part No.:: PCRP-64-N14-7-E-R1-M-T19
Brand:: Festo

Specifications

Technical Reference

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	Festo
	Port Connection	NPT 1/4-18
	Maximum Operating Pressure	20 bar
	Manufacturer Series	P
	Drain Type	Manual
	Filtration Size	40µm
	Pressure Gauge Port	G 1/4
	Pressure Gauge Port Thread Size	1/4 in
	Port Connection Thread Size	1/4-18 in
	Maximum Ambient Operating Temperature	+80°C
	Minimum Process Operating Temperature	-60°C
	Minimum Operating Pressure	1bar
	Ambient Operating Temperature Range	-60 → +80°C
	Minimum Ambient Operating Temperature	-60°C
	Process Operating Temperature Range	-60 → +80°C
	Bowl Material	Stainless Steel
	Model Number	5394667
	Maximum Process Operating Temperature	+80°C
	Port Connection Thread Standard	NPT
	Pressure Gauge Port Thread Standard	G

	Select all
	Brand Festo
	Port Connection NPT 1/4-18
	Maximum Operating Pressure 20 bar
	Manufacturer Series P
	Drain Type Manual
	Filtration Size 40µm
	Pressure Gauge Port G 1/4
	Pressure Gauge Port Thread Size 1/4 in
	Port Connection Thread Size 1/4-18 in
	Maximum Ambient Operating Temperature +80°C
	Minimum Process Operating Temperature -60°C
	Minimum Operating Pressure 1bar
	Ambient Operating Temperature Range -60 → +80°C
	Minimum Ambient Operating Temperature -60°C
	Process Operating Temperature Range -60 → +80°C
	Bowl Material Stainless Steel
	Model Number 5394667
	Maximum Process Operating Temperature +80°C
	Port Connection Thread Standard NPT
	Pressure Gauge Port Thread Standard G

Datasheet - PCRP-64-N14-7-E-R1-M-T19

COO (Country of Origin):: IN

Festo Series P Filter Regulator, 20 bar Maximum Operating Pressure, 40 μm Filtration size - PCRP-64-N14-7-E-R1-M-T19, Numeric Part Number: 5394667

This filter regulator is designed for efficient pressure management in pneumatic systems. The robust construction and high-quality stainless steel materials ensure durability and long-lasting performance in challenging environments. It operates within an ambient temperature range from -60°C to +80°C, making it suitable for various industrial applications.

Features & Benefits

• 40 μm filtration for reliable debris removal
• Manual drain for easy maintenance in compact spaces
• High-standard flow rate of 3,320 l/min for optimal performance
• Conforms to NACE MR0175/ISO 15156 for corrosion resistance
• Suitable for lubricated operation enhancing system reliability

Applications

• Used in industrial automation for precise pressure control
• Ideal for with compressed air and inert gases
• Suitable for pneumatic systems requiring high-temperature operations
• Utilised in environments where manual draining is essential

What is the maximum and minimum operating pressure for this device?

The operating pressure ranges from a minimum of 1 bar to a maximum of 20 bar, accommodating various system requirements.

How does the filtration grade enhance the performance of the regulator?

The 40 μm filtration size effectively captures contaminants, ensuring optimal air quality and protecting downstream equipment from potential damage.

Can this regulator handle extreme temperatures?

Yes, it is designed to operate within a temperature range of -60°C to +80°C, making it suitable for demanding industrial environments.

Is there a provision for mounting this filter regulator?

The product allows for flexible installation options, including in-line installation or mounting via an appropriate kit, facilitating ease of setup in different configurations.
