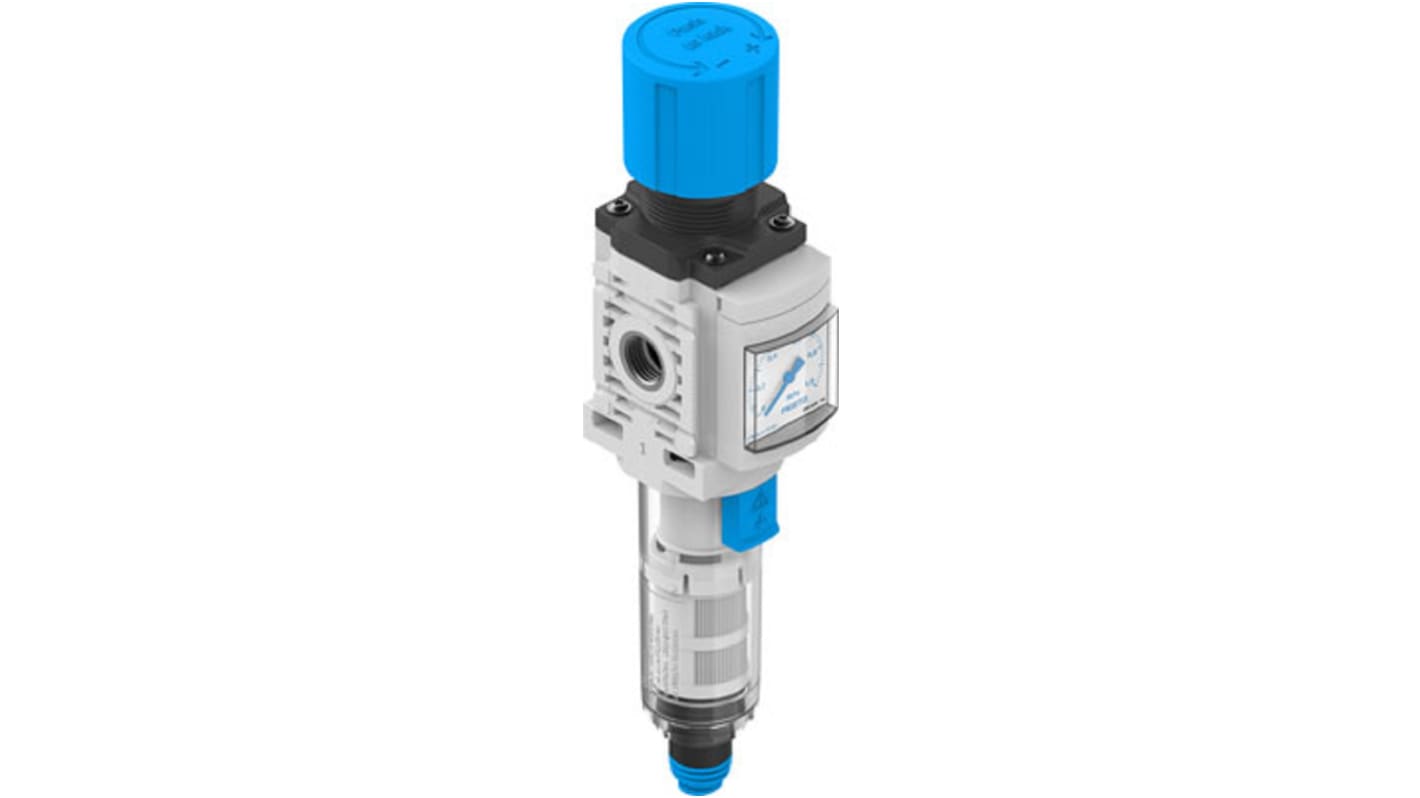

Festo MS Polycarbonate Filter Regulator, 5μm, G 1/4, Automatic, 1 → 10 bar, 8098266
- RS Stock No.:
- 253-9220
- Mfr. Part No.:
- MS4-LFR-1/4-D6-C-P-VC-AG-MPA-B
- Brand:
- Festo
Subtotal (1 unit)*
£94.18
(exc. VAT)
£113.02
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 20 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £94.18 |
*price indicative
- RS Stock No.:
- 253-9220
- Mfr. Part No.:
- MS4-LFR-1/4-D6-C-P-VC-AG-MPA-B
- Brand:
- Festo
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Festo | |
| Port Connection | G 1/4 | |
| Maximum Operating Pressure | 1 → 10 bar | |
| Manufacturer Series | MS | |
| Drain Type | Automatic | |
| Filtration Size | 5µm | |
| Port Connection Thread Size | 1/4 in | |
| Minimum Operating Pressure | 1bar | |
| Port Connection Thread Standard | G | |
| Bowl Material | Polycarbonate | |
| Model Number | 8098266 | |
| Proof Pressure | 10bar | |
Select all | ||
|---|---|---|
Brand Festo | ||
Port Connection G 1/4 | ||
Maximum Operating Pressure 1 → 10 bar | ||
Manufacturer Series MS | ||
Drain Type Automatic | ||
Filtration Size 5µm | ||
Port Connection Thread Size 1/4 in | ||
Minimum Operating Pressure 1bar | ||
Port Connection Thread Standard G | ||
Bowl Material Polycarbonate | ||
Model Number 8098266 | ||
Proof Pressure 10bar | ||
- COO (Country of Origin):
- HU
Festo Filter Regular, 2 to 10 Bar Operating Pressure, 216g Weight - MS4-LFR-1/4-D6-C-P-VC-AG-MPA-B
Looking to trim down your bulky pneumatic circuit? Try this Festo filter regulator. It combines two functions in one compact unit, without putting your system under performance pressure. A fine 5-micron filter stops rust and pipe scale in its tracks, so you benefit from contaminant-free compressed air. You also get more time to decompress, thanks to the regulator's consistent and reliable output. This service unit packs a punch with a standard nominal flow rate of 1500L/min to match the needs of demanding networks.
Features & Benefits
• PA-reinforced housing resists corrosion and wear, for compatibility with harsh industrial environments
• Conveniently comes with a pressure gauge, so it's ready to install
• Durable nitrile rubber seals to withstand high pressure with minimal risk of tearing
• Automatic condensate drain that needs little manual intervention
• Modular design for quick and easy installation in a pneumatic circuit
• Conveniently comes with a pressure gauge, so it's ready to install
• Durable nitrile rubber seals to withstand high pressure with minimal risk of tearing
• Automatic condensate drain that needs little manual intervention
• Modular design for quick and easy installation in a pneumatic circuit
Applications
• Aerospace technology
• Marine industry
• Food manufacturing
• Medical and pharmaceutical industries
• Marine industry
• Food manufacturing
• Medical and pharmaceutical industries
How do I stop unauthorised tampering of this unit?
This filter regulator comes with a lockable rotary knob, so you can stop unauthorised changes from being made to its settings.
