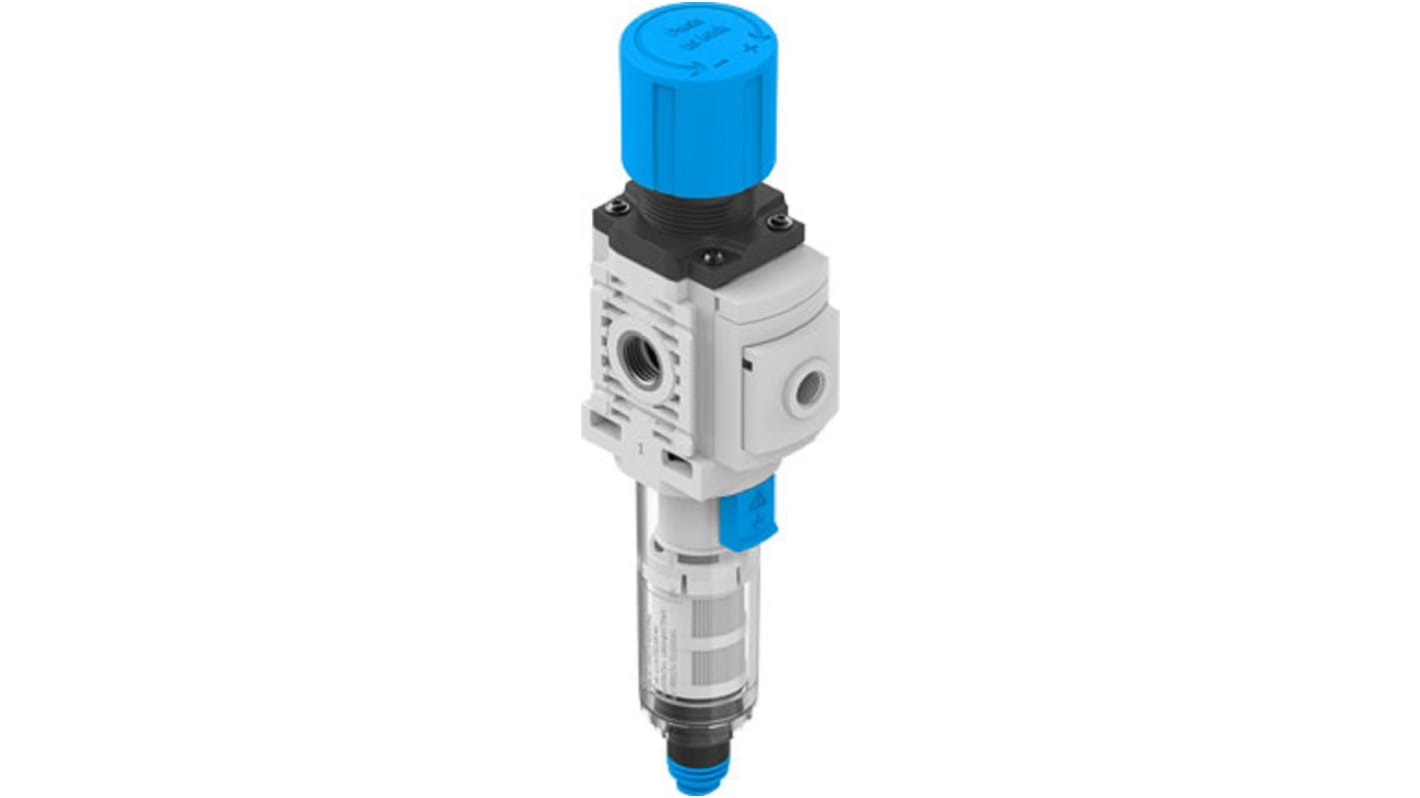

Festo MS Polycarbonate Filter Regulator, 5μm, G 1/4, Automatic, 1 → 10 bar, 8098263
- RS Stock No.:
- 253-9218
- Mfr. Part No.:
- MS4-LFR-1/4-D6-C-P-VC-A8-B
- Brand:
- Festo
Subtotal (1 unit)*
£87.14
(exc. VAT)
£104.57
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 6 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £87.14 |
*price indicative
- RS Stock No.:
- 253-9218
- Mfr. Part No.:
- MS4-LFR-1/4-D6-C-P-VC-A8-B
- Brand:
- Festo
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Festo | |
| Port Connection | G 1/4 | |
| Maximum Operating Pressure | 1 → 10 bar | |
| Manufacturer Series | MS | |
| Drain Type | Automatic | |
| Filtration Size | 5µm | |
| Port Connection Thread Size | 1/4 in | |
| Minimum Operating Pressure | 1bar | |
| Port Connection Thread Standard | G | |
| Bowl Material | Polycarbonate | |
| Proof Pressure | 10bar | |
| Model Number | 8098263 | |
Select all | ||
|---|---|---|
Brand Festo | ||
Port Connection G 1/4 | ||
Maximum Operating Pressure 1 → 10 bar | ||
Manufacturer Series MS | ||
Drain Type Automatic | ||
Filtration Size 5µm | ||
Port Connection Thread Size 1/4 in | ||
Minimum Operating Pressure 1bar | ||
Port Connection Thread Standard G | ||
Bowl Material Polycarbonate | ||
Proof Pressure 10bar | ||
Model Number 8098263 | ||
- COO (Country of Origin):
- HU
Festo Filter Regulator, 2 to 10 Bar Operating Pressure, 1500L/min Flow Rate - MS4-LFR-1/4-D6-C-P-VC-A8-B
This filter regulator from Festo provides a reliable supply of uncontaminated compressed air, helping to raise the performance bar in your pneumatic applications. Its PA-reinforced housing means it's built for the long haul in demanding environments. With a nominal flow rate of 1500L/min, you can rely on it in demanding applications working at levels up to 10 bar. To ensure your compressed air is free of condensate, the filter includes an integrated water separator. To prevent tampering, keep the unit under lock and key by simply securing its rotary knob.
Features & Benefits
• PA-reinforced housing resists corrosion for longevity in moist operating conditions
• Light weight of 213g, so puts minimal strain on a pneumatic circuit
• Modular design makes it easy to install in-line for time-saving assembly
• Durable nitrile rubber seals that withstand high pressures without tearing
• Suitable to use with hot compressed air, thanks to a media temperature range between +5°C and +50°C
• Light weight of 213g, so puts minimal strain on a pneumatic circuit
• Modular design makes it easy to install in-line for time-saving assembly
• Durable nitrile rubber seals that withstand high pressures without tearing
• Suitable to use with hot compressed air, thanks to a media temperature range between +5°C and +50°C
Applications
• Hospitals and medical centres
• Textile industry
• Agricultural equipment
• Pulp and paper mills
• Textile industry
• Agricultural equipment
• Pulp and paper mills
Does this filter regulator come with mounting accessories?
Yes, for snappy and convenient installation, this unit comes with mounting accessories included.
