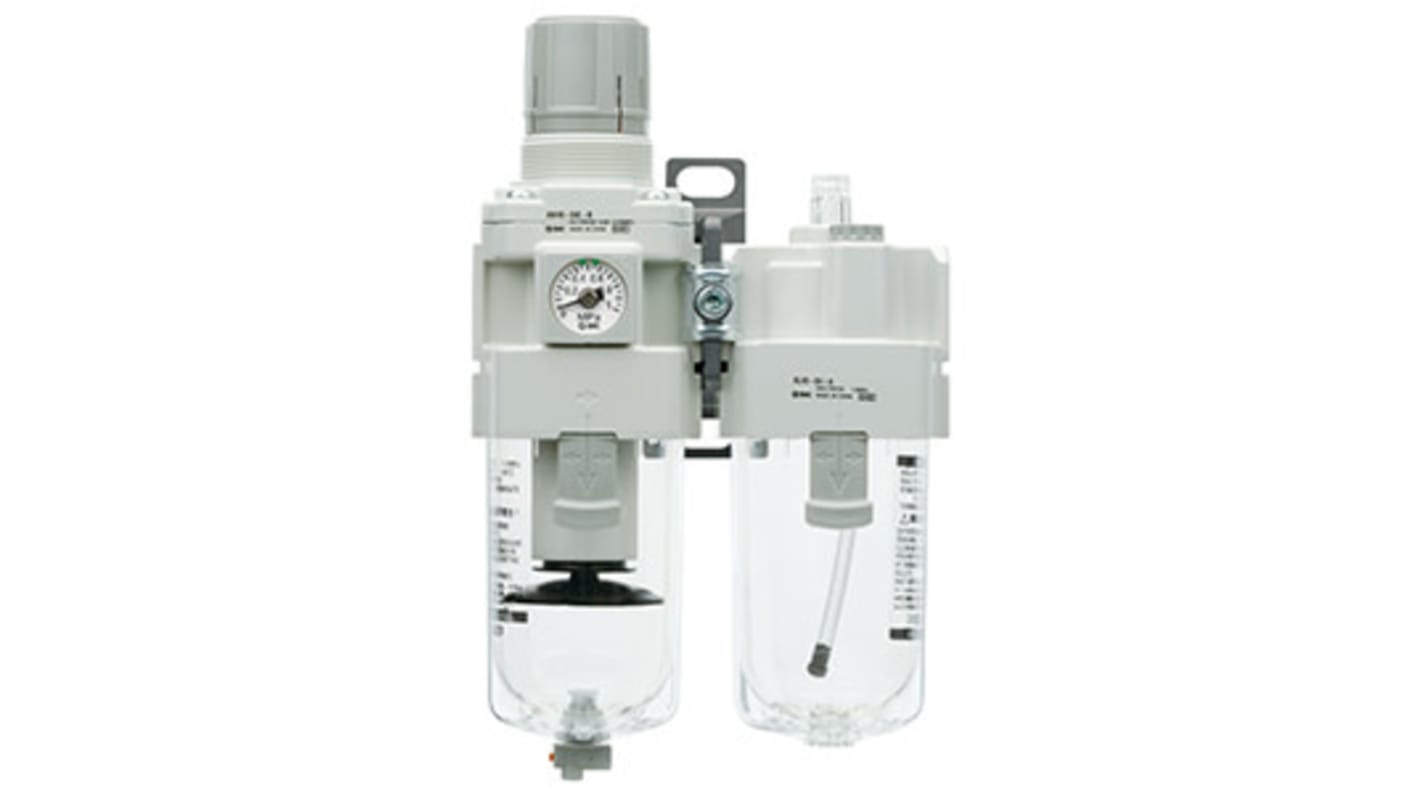

SMC G 3/4 FRL, 5μm Filtration Size - Without Pressure Gauge
- RS Stock No.:
- 885-5918
- Mfr. Part No.:
- AC40A-F06-B
- Brand:
- SMC
Currently unavailable
We don't know if this item will be back in stock, RS intend to remove it from our range soon.
Alternative
This product is not currently available. Here is our alternative recommendation.
Each
£111.30
(exc. VAT)
£133.56
(inc. VAT)
- RS Stock No.:
- 885-5918
- Mfr. Part No.:
- AC40A-F06-B
- Brand:
- SMC
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | SMC | |
| Port Connection | G 3/4 | |
| Integrated Pressure Gauge | Without Pressure Gauge | |
| Manufacturer Series | AC40 | |
| Filtration Size | 5µm | |
| Minimum Ambient Operating Temperature | -5°C | |
| Port Connection Thread Size | 3/4in | |
| Port Connection Thread Standard | G | |
| Maximum Operating Pressure | 1 MPa | |
| Maximum Process Operating Temperature | 60°C | |
| Ambient Operating Temperature Range | -5 → +60°C | |
| Maximum Pressure Setting | 0.7MPa | |
| Minimum Pressure Setting | 0.05MPa | |
| Pressure Setting Range | 0.05 → 0.7MPa | |
| Minimum Process Operating Temperature | -5°C | |
| Process Operating Temperature Range | -5 → +60°C | |
| Bowl Material | Polycarbonate | |
| Proof Pressure | 1.5MPa | |
| Maximum Ambient Operating Temperature | 60°C | |
Select all | ||
|---|---|---|
Brand SMC | ||
Port Connection G 3/4 | ||
Integrated Pressure Gauge Without Pressure Gauge | ||
Manufacturer Series AC40 | ||
Filtration Size 5µm | ||
Minimum Ambient Operating Temperature -5°C | ||
Port Connection Thread Size 3/4in | ||
Port Connection Thread Standard G | ||
Maximum Operating Pressure 1 MPa | ||
Maximum Process Operating Temperature 60°C | ||
Ambient Operating Temperature Range -5 → +60°C | ||
Maximum Pressure Setting 0.7MPa | ||
Minimum Pressure Setting 0.05MPa | ||
Pressure Setting Range 0.05 → 0.7MPa | ||
Minimum Process Operating Temperature -5°C | ||
Process Operating Temperature Range -5 → +60°C | ||
Bowl Material Polycarbonate | ||
Proof Pressure 1.5MPa | ||
Maximum Ambient Operating Temperature 60°C | ||
RoHS Status: Exempt
- COO (Country of Origin):
- CN
AC20A-AC40A-B Series FRL Assemblies
SMC’s AC-B series of filter regulator lubricators have been redeveloped and feature a double layer, transparent bowl for better level visibility and extended working life. Part of SMC’s modular air prep range the AC-B can be combined with other components such as a soft start valve and mist separators of similar body size to meet the requirements of most air preparation systems. These filter regulator lubricators are available in a selection of body sizes from 10 to 40 with piping from G1/8” to G1/2” (also available as M5x0.8). Various options are available including normally open or normally closed auto-drain function, round or square pressure gauges and panel mounting kits. Ideal for automotive, facility and machine manufacturing, these highly flexible F.R.L. units also feature interchangeable, modular mounting.
