SMC G 1/2 FRL, Automatic Drain, 5μm Filtration Size - With Pressure Gauge

View this category
Currently unavailable
We don't know if this item will be back in stock, RS intend to remove it from our range soon.

Alternative

This product is not currently available. Here is our alternative recommendation.

presentation

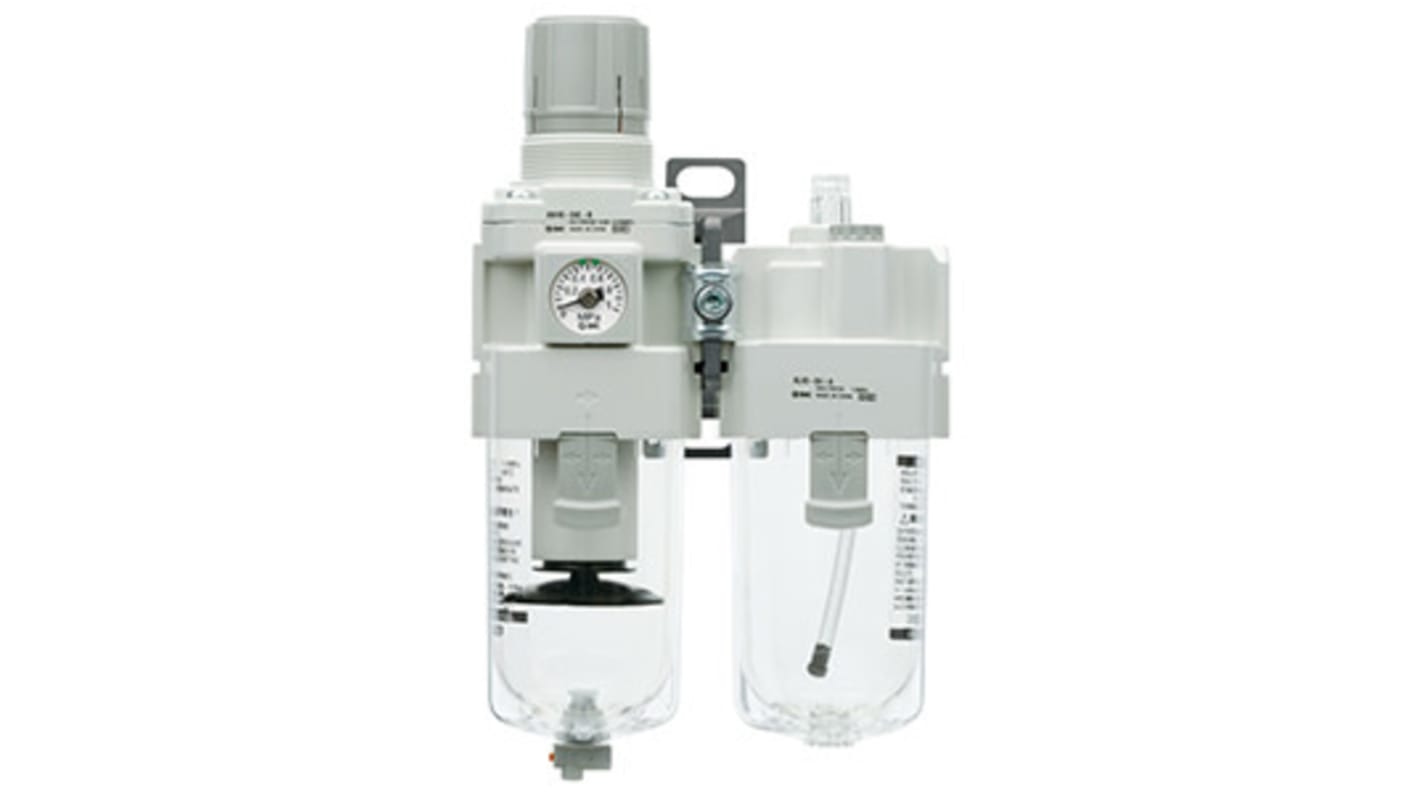

SMC G 1/2 Filter Regulator Lubricator, Automatic Drain - With Pressure Gauge, AC40A-F04CG-D
RS Stock No.
631-803

Each

£138.71

(exc. VAT)

£166.45

(inc. VAT)

RS Stock No.:
885-5909
Mfr. Part No.:
AC40A-F04CG-B
Brand:
SMC
Find similar products by selecting one or more attributes.
Select all

Brand

SMC

Port Connection

G 1/2

Integrated Pressure Gauge

With Pressure Gauge

Drain Type

Automatic

Manufacturer Series

AC40

Filtration Size

5µm

Pressure Gauge Port Size

G 1/8

Minimum Ambient Operating Temperature

-5°C

Port Connection Thread Size

1/2in

Port Connection Thread Standard

G

Maximum Operating Pressure

1 MPa

Process Operating Temperature Range

-5 → +60°C

Ambient Operating Temperature Range

-5 → +60°C

Maximum Pressure Setting

0.7MPa

Minimum Pressure Setting

0.05MPa

Bowl Material

Polycarbonate

Maximum Ambient Operating Temperature

+60°C

Proof Pressure

1.5MPa

Minimum Process Operating Temperature

-5°C

Pressure Gauge Port Thread Size

1/8in

Pressure Setting Range

0.05 → 0.7MPa

Maximum Process Operating Temperature

+60°C

Pressure Gauge Port Thread Standard

G

Non Compliant

COO (Country of Origin):
CN

AC20A-AC40A-B Series FRL Assemblies


SMC’s AC-B series of filter regulator lubricators have been redeveloped and feature a double layer, transparent bowl for better level visibility and extended working life. Part of SMC’s modular air prep range the AC-B can be combined with other components such as a soft start valve and mist separators of similar body size to meet the requirements of most air preparation systems. These filter regulator lubricators are available in a selection of body sizes from 10 to 40 with piping from G1/8” to G1/2” (also available as M5x0.8). Various options are available including normally open or normally closed auto-drain function, round or square pressure gauges and panel mounting kits. Ideal for automotive, facility and machine manufacturing, these highly flexible F.R.L. units also feature interchangeable, modular mounting.
