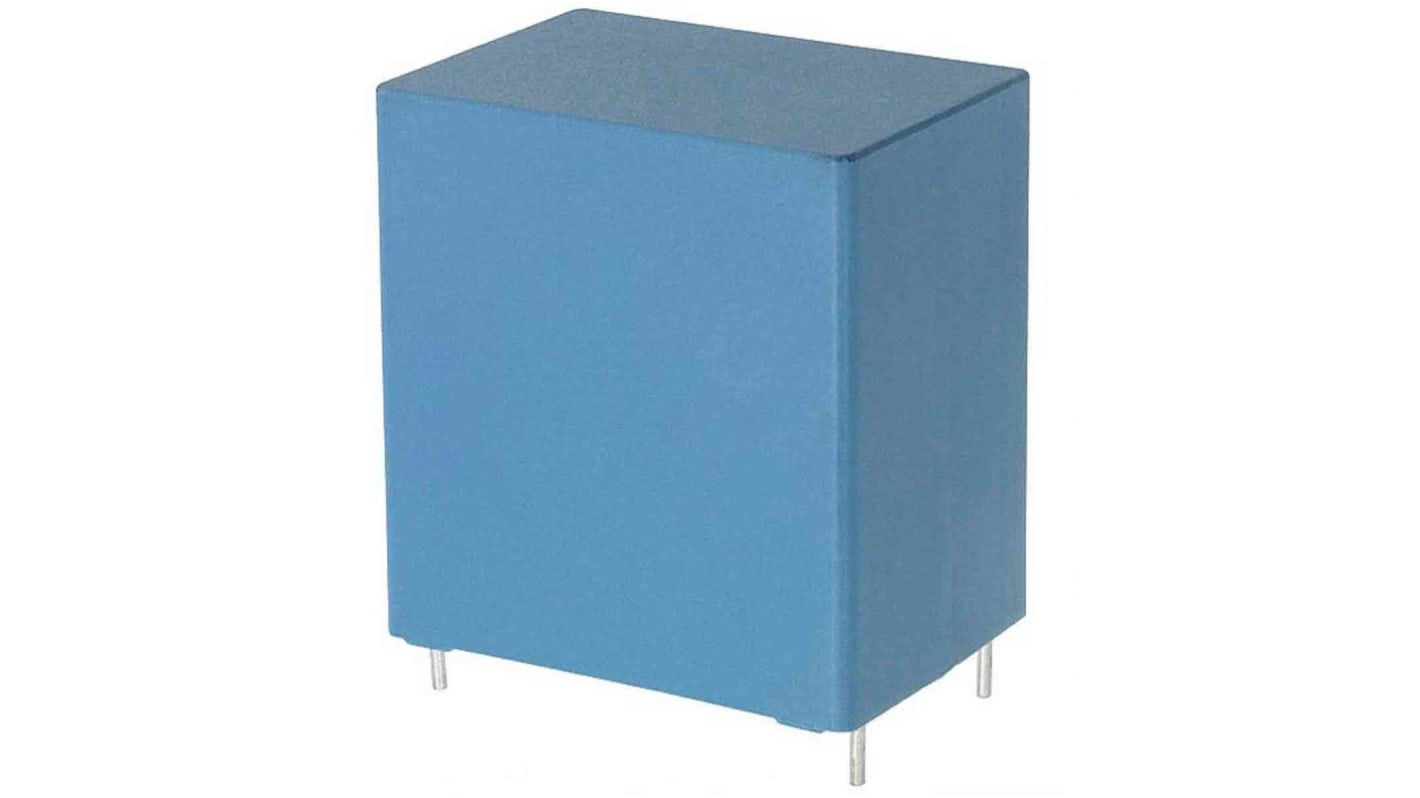

EPCOS B32778 Polypropylene Film Capacitor, 450V dc, 10%, 100μF, Through Hole
- RS Stock No.:
- 194-3770
- Mfr. Part No.:
- B32778G4107K000
- Brand:
- EPCOS
Bulk discount available
Subtotal (1 unit)*
£27.65
(exc. VAT)
£33.18
(inc. VAT)
FREE delivery for orders over £50.00
Being discontinued
- Final 432 unit(s), ready to ship
Units | Per unit |
---|---|
1 - 4 | £27.65 |
5 - 9 | £25.77 |
10 + | £23.12 |
*price indicative
- RS Stock No.:
- 194-3770
- Mfr. Part No.:
- B32778G4107K000
- Brand:
- EPCOS
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | EPCOS | |
Capacitance | 100µF | |
Voltage | 450V dc | |
Mounting Type | Through Hole | |
Tolerance | 10% | |
Series | B32778 | |
Lead Pitch | 52.5mm | |
Length | 57.5mm | |
Lead Length | 6mm | |
Depth | 35mm | |
Height | 50mm | |
Dimensions | 57.5 x 35 x 50mm | |
Dielectric | Polypropylene | |
Lead Diameter | 1.2mm | |
Maximum Operating Temperature | +105°C | |
Minimum Operating Temperature | -40°C | |
Select all | ||
---|---|---|
Brand EPCOS | ||
Capacitance 100µF | ||
Voltage 450V dc | ||
Mounting Type Through Hole | ||
Tolerance 10% | ||
Series B32778 | ||
Lead Pitch 52.5mm | ||
Length 57.5mm | ||
Lead Length 6mm | ||
Depth 35mm | ||
Height 50mm | ||
Dimensions 57.5 x 35 x 50mm | ||
Dielectric Polypropylene | ||
Lead Diameter 1.2mm | ||
Maximum Operating Temperature +105°C | ||
Minimum Operating Temperature -40°C | ||
- COO (Country of Origin):
- ES
The EPCOS Polypropylene film capacitor has 100uF capacitance. It has Parallel wire leads, lead-free tinned and 2-pin, 4-pin and 12-pin versions. The maximum operating temperature is 105 °C. It is used for frequency converters, industrial and high-end powe
Capacitance values up to 480 μF
High CV product, compact
Good self-healing properties
Over-voltage capability
Low losses with high current capability
High reliability
Long useful life
RoHS-compatible
High CV product, compact
Good self-healing properties
Over-voltage capability
Low losses with high current capability
High reliability
Long useful life
RoHS-compatible
