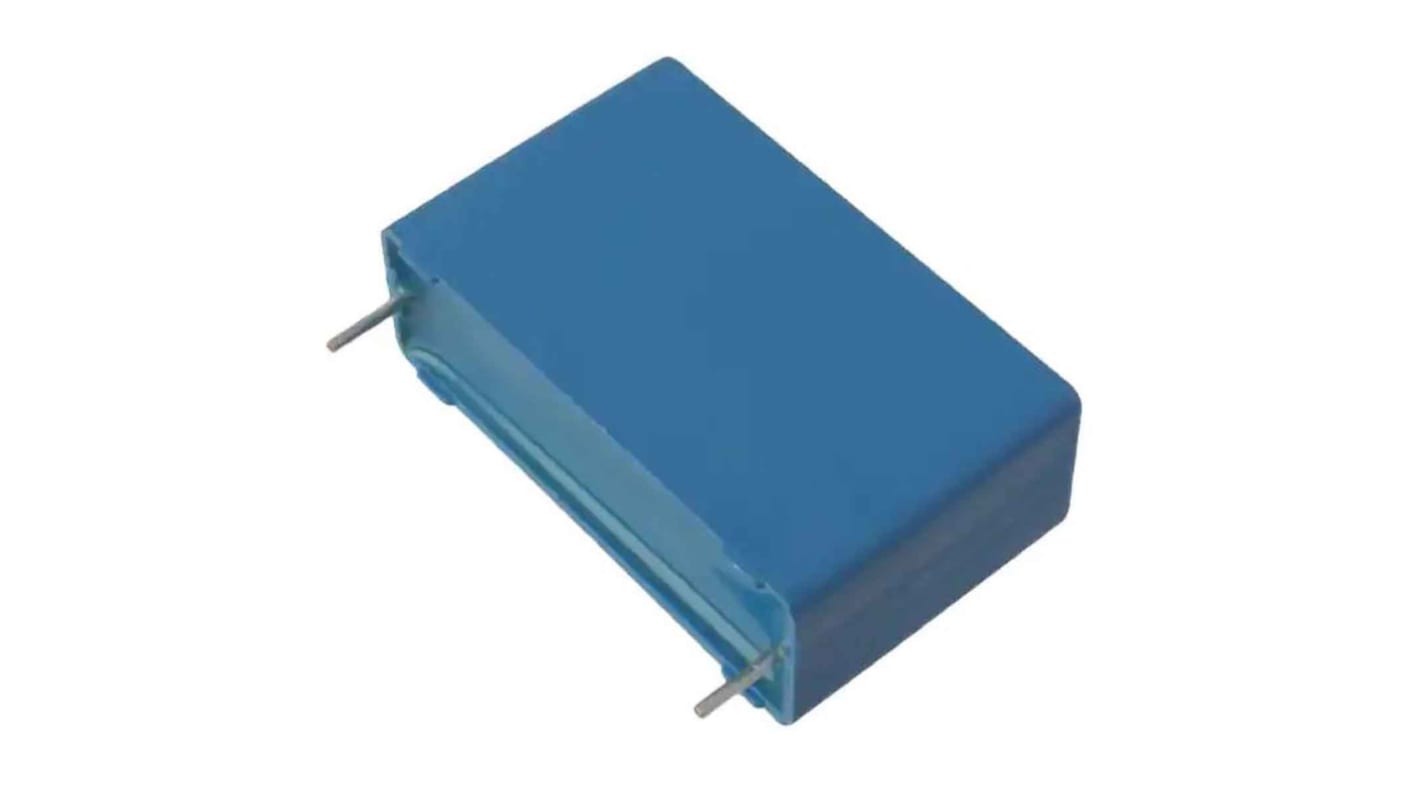

EPCOS B32672Z Polypropylene Film Capacitor, 450V dc, 10%, 100nF, Through Hole
- RS Stock No.:
- 194-3717
- Mfr. Part No.:
- B32672Z4104K000
- Brand:
- EPCOS
Subtotal (1 pack of 50 units)*
£7.00
(exc. VAT)
£8.50
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- Plus 3,900 unit(s) shipping from 27 October 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
|---|---|---|
| 50 + | £0.14 | £7.00 |
*price indicative
- RS Stock No.:
- 194-3717
- Mfr. Part No.:
- B32672Z4104K000
- Brand:
- EPCOS
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | EPCOS | |
| Capacitance | 100nF | |
| Voltage | 450V dc | |
| Mounting Type | Through Hole | |
| Tolerance | 10% | |
| Series | B32672Z | |
| Automotive Standard | AEC-Q200D | |
| Lead Pitch | 15mm | |
| Length | 18mm | |
| Lead Length | 6mm | |
| Depth | 5mm | |
| Height | 10.5mm | |
| Dimensions | 18 x 5 x 10.5mm | |
| Dielectric | Polypropylene | |
| Dissipation Factor | 5 x 10^-3% | |
| Maximum Operating Temperature | +125°C | |
| Lead Diameter | 0.8mm | |
Select all | ||
|---|---|---|
Brand EPCOS | ||
Capacitance 100nF | ||
Voltage 450V dc | ||
Mounting Type Through Hole | ||
Tolerance 10% | ||
Series B32672Z | ||
Automotive Standard AEC-Q200D | ||
Lead Pitch 15mm | ||
Length 18mm | ||
Lead Length 6mm | ||
Depth 5mm | ||
Height 10.5mm | ||
Dimensions 18 x 5 x 10.5mm | ||
Dielectric Polypropylene | ||
Dissipation Factor 5 x 10^-3% | ||
Maximum Operating Temperature +125°C | ||
Lead Diameter 0.8mm | ||
- COO (Country of Origin):
- CN
The EPCOS Polypropylene film capacitor has 0.1uF capacitance. It has parallel wire leads, lead-free tinned. The maximum operating temperature is 125 °C. It is used for PFC (Power Factor Correction) and not suitable for "across the line" applications.
High frequency capability
Very small dimensions
RoHS-compatible
Halogen-free capacitors available on request
AEC-Q200D compliant
Very small dimensions
RoHS-compatible
Halogen-free capacitors available on request
AEC-Q200D compliant
