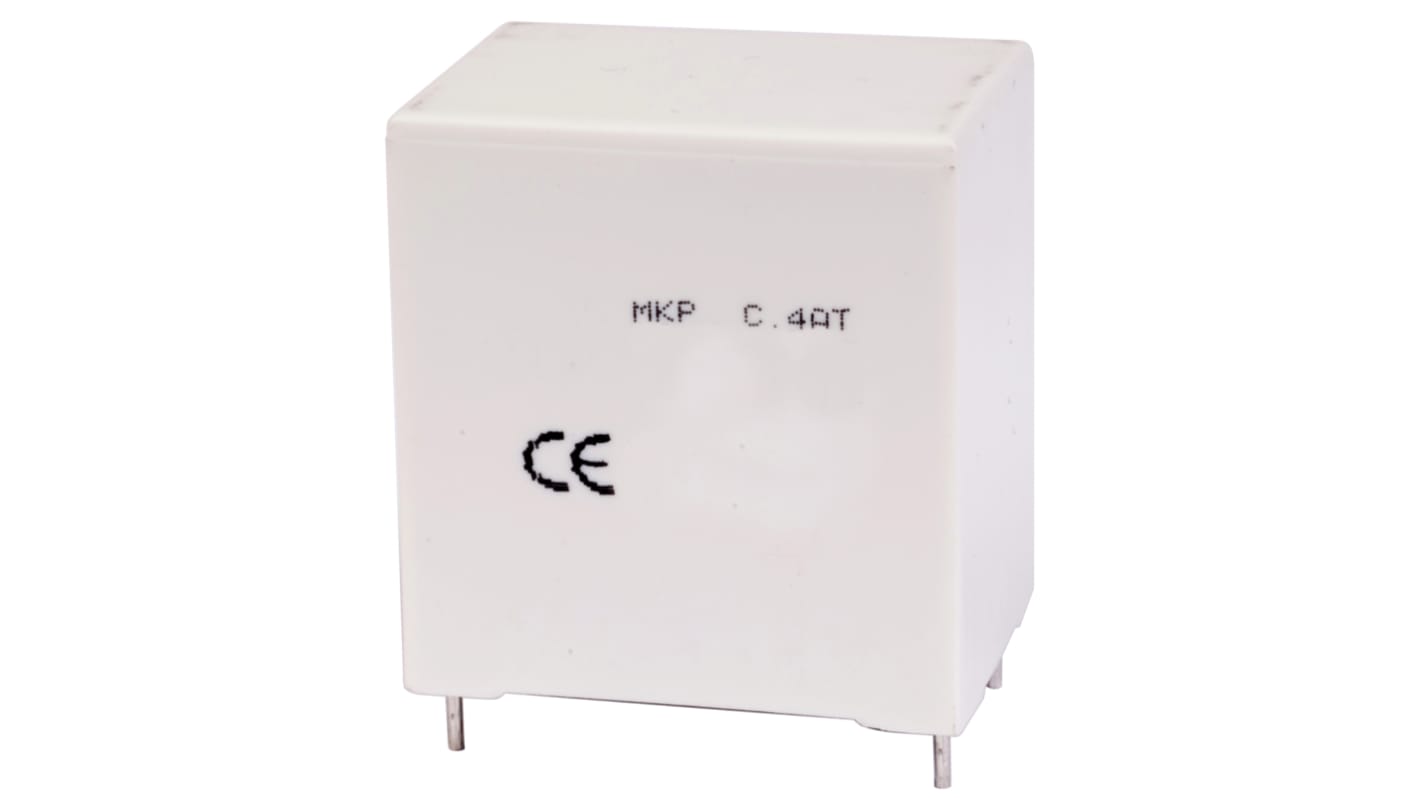

KEMET C4AT Metallised Polypropylene Film Capacitor, 250 V ac, 400 V dc, ±5%, 30μF, Through Hole
- RS Stock No.:
- 137-2344
- Mfr. Part No.:
- C4ATFBW5300A3MJ
- Brand:
- KEMET
Bulk discount available
Subtotal (1 box of 27 units)*
£206.82
(exc. VAT)
£248.13
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- 81 unit(s) shipping from 23 January 2026
- Plus 81 unit(s) shipping from 26 March 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Box* |
---|---|---|
27 - 108 | £7.66 | £206.82 |
135 - 243 | £6.243 | £168.56 |
270 + | £6.044 | £163.19 |
*price indicative
- RS Stock No.:
- 137-2344
- Mfr. Part No.:
- C4ATFBW5300A3MJ
- Brand:
- KEMET
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | KEMET | |
Capacitance | 30µF | |
Voltage | 250 V ac, 400 V dc | |
Mounting Type | Through Hole | |
Tolerance | ±5% | |
Series | C4AT | |
Lead Pitch | 52.5mm | |
Length | 57.5mm | |
Depth | 30mm | |
Lead Length | 6mm | |
Equivalent Series Resistance | 1.7mΩ | |
Height | 45mm | |
Dimensions | 57.5 x 30 x 45mm | |
Dielectric | Metallised Polypropylene | |
Terminal Type | Radial | |
Dissipation Factor | 0.05% | |
Minimum Operating Temperature | -40°C | |
Maximum Operating Temperature | +85°C | |
Select all | ||
---|---|---|
Brand KEMET | ||
Capacitance 30µF | ||
Voltage 250 V ac, 400 V dc | ||
Mounting Type Through Hole | ||
Tolerance ±5% | ||
Series C4AT | ||
Lead Pitch 52.5mm | ||
Length 57.5mm | ||
Depth 30mm | ||
Lead Length 6mm | ||
Equivalent Series Resistance 1.7mΩ | ||
Height 45mm | ||
Dimensions 57.5 x 30 x 45mm | ||
Dielectric Metallised Polypropylene | ||
Terminal Type Radial | ||
Dissipation Factor 0.05% | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature +85°C | ||
KEMET C4A MKP Series Capacitors
C4A MKP capacitors from KEMET are radial mount power capacitors with high ripple current and low losses. Encapsulated in a self-healing material, C4A power capacitors are ideal for high frequency applications.
Features and Benefits
Self-Healing
Low losses
High ripple current
High contact reliability
Low losses
High ripple current
High contact reliability
Standards
VDE 0560 - IEC61071 - EN61071
