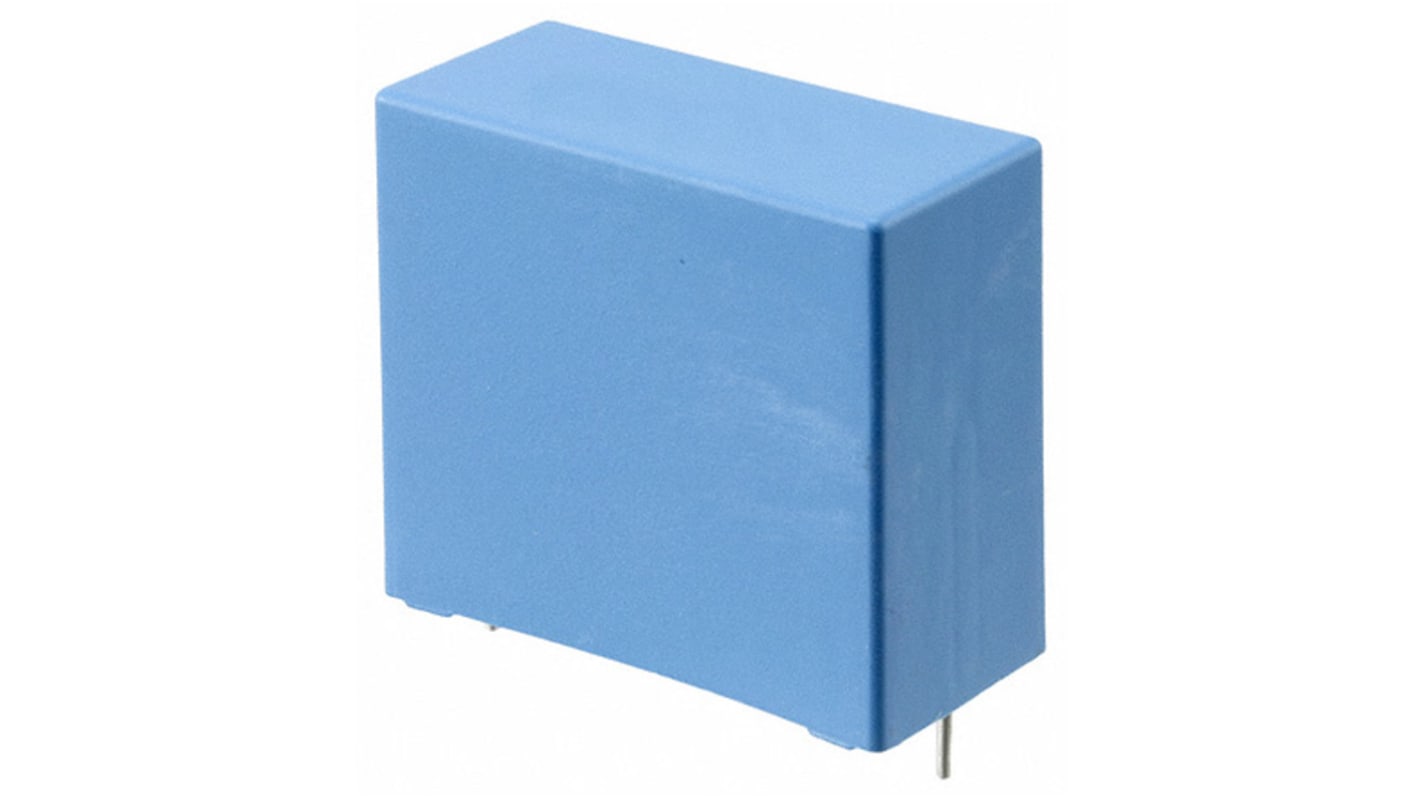

KEMET PHE450 Polypropylene Capacitor PP, 400V dc, ±5%, 330pF
- RS Stock No.:
- 135-3445
- Mfr. Part No.:
- PHE450KK3330JR17
- Brand:
- KEMET
Subtotal (1 pack of 10 units)*
£1.98
(exc. VAT)
£2.38
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 27 April 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
|---|---|---|
| 10 + | £0.198 | £1.98 |
*price indicative
- RS Stock No.:
- 135-3445
- Mfr. Part No.:
- PHE450KK3330JR17
- Brand:
- KEMET
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | KEMET | |
| Capacitance | 330pF | |
| Voltage | 400V dc | |
| Tolerance | ±5% | |
| Series | PHE450 | |
| Lead Pitch | 7.5mm | |
| Length | 10mm | |
| Depth | 4mm | |
| Lead Length | 17mm | |
| Height | 8mm | |
| Dimensions | 10 x 4 x 8mm | |
| Terminal Type | Radial | |
| Dissipation Factor | 0.0003 % @ 1 kHz, 0.0004 % @ 10 kHz, 0.0015 % @ 100 kHz | |
| Minimum Operating Temperature | -55°C | |
| Lead Diameter | 0.6mm | |
| Maximum Operating Temperature | +105°C | |
Select all | ||
|---|---|---|
Brand KEMET | ||
Capacitance 330pF | ||
Voltage 400V dc | ||
Tolerance ±5% | ||
Series PHE450 | ||
Lead Pitch 7.5mm | ||
Length 10mm | ||
Depth 4mm | ||
Lead Length 17mm | ||
Height 8mm | ||
Dimensions 10 x 4 x 8mm | ||
Terminal Type Radial | ||
Dissipation Factor 0.0003 % @ 1 kHz, 0.0004 % @ 10 kHz, 0.0015 % @ 100 kHz | ||
Minimum Operating Temperature -55°C | ||
Lead Diameter 0.6mm | ||
Maximum Operating Temperature +105°C | ||
KEMET PHE450 Series Metallized Polypropylene Capacitors
KEMET PHE450 series double metallized polypropelene film capacitors are encapsulated in a self-extinguishing resin in a box of material which meets UL 94 V-0 requirements. Suitable for applications with high current stress like protection circuits in switch mode power supplies and deflection circuits in televisions.
Features
Double metallised polypropylene film pulse capacitor
Rated voltage: 250 V dc to 3000 V dc
Rated voltage: 180 to 1000 V ac
Capacitance tolerance: ±5%, other tolerances on request
Lead spacing: 7.5 mm to 37.5 mm
Rated voltage: 250 V dc to 3000 V dc
Rated voltage: 180 to 1000 V ac
Capacitance tolerance: ±5%, other tolerances on request
Lead spacing: 7.5 mm to 37.5 mm
Radial 105°C
Encapsulated in self-extinguishing material meeting the requirements of UL94V-0
