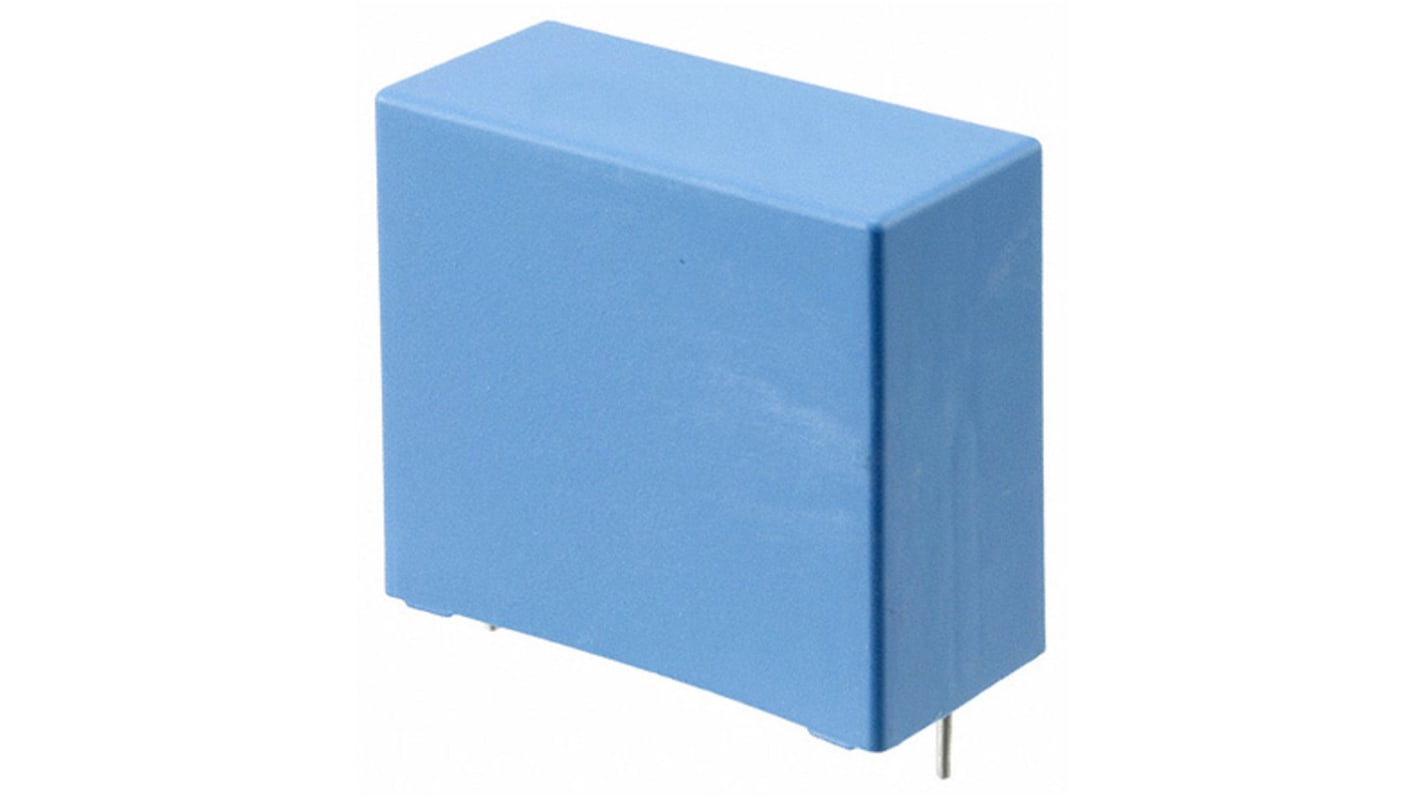

KEMET PHE450 Polypropylene Capacitor PP, 1kV dc, ±5%, 1μF
- RS Stock No.:
- 135-3511
- Mfr. Part No.:
- PHE450PR7100JR02R06L2
- Brand:
- KEMET
Bulk discount available
Subtotal (1 pack of 2 units)*
£9.62
(exc. VAT)
£11.54
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 03 April 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
|---|---|---|
| 2 - 20 | £4.81 | £9.62 |
| 22 - 50 | £4.335 | £8.67 |
| 52 + | £3.855 | £7.71 |
*price indicative
- RS Stock No.:
- 135-3511
- Mfr. Part No.:
- PHE450PR7100JR02R06L2
- Brand:
- KEMET
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | KEMET | |
| Capacitance | 1µF | |
| Voltage | 1kV dc | |
| Tolerance | ±5% | |
| Series | PHE450 | |
| Lead Pitch | 37.5mm | |
| Length | 41mm | |
| Lead Length | 6mm | |
| Depth | 16.5mm | |
| Height | 32mm | |
| Dimensions | 41 x 16.5 x 32mm | |
| Terminal Type | Radial | |
| Dissipation Factor | 0.0003 % @ 1 kHz, 0.0006 % @ 10 kHz | |
| Minimum Operating Temperature | -55°C | |
| Maximum Operating Temperature | +105°C | |
| Lead Diameter | 1mm | |
Select all | ||
|---|---|---|
Brand KEMET | ||
Capacitance 1µF | ||
Voltage 1kV dc | ||
Tolerance ±5% | ||
Series PHE450 | ||
Lead Pitch 37.5mm | ||
Length 41mm | ||
Lead Length 6mm | ||
Depth 16.5mm | ||
Height 32mm | ||
Dimensions 41 x 16.5 x 32mm | ||
Terminal Type Radial | ||
Dissipation Factor 0.0003 % @ 1 kHz, 0.0006 % @ 10 kHz | ||
Minimum Operating Temperature -55°C | ||
Maximum Operating Temperature +105°C | ||
Lead Diameter 1mm | ||
KEMET PHE450 Series Metallized Polypropylene Capacitors
KEMET PHE450 series double metallized polypropelene film capacitors are encapsulated in a self-extinguishing resin in a box of material which meets UL 94 V-0 requirements. Suitable for applications with high current stress like protection circuits in switch mode power supplies and deflection circuits in televisions.
Features
Double metallised polypropylene film pulse capacitor
Rated voltage: 250 V dc to 3000 V dc
Rated voltage: 180 to 1000 V ac
Capacitance tolerance: ±5%, other tolerances on request
Lead spacing: 7.5 mm to 37.5 mm
Rated voltage: 250 V dc to 3000 V dc
Rated voltage: 180 to 1000 V ac
Capacitance tolerance: ±5%, other tolerances on request
Lead spacing: 7.5 mm to 37.5 mm
Radial 105°C
Encapsulated in self-extinguishing material meeting the requirements of UL94V-0
