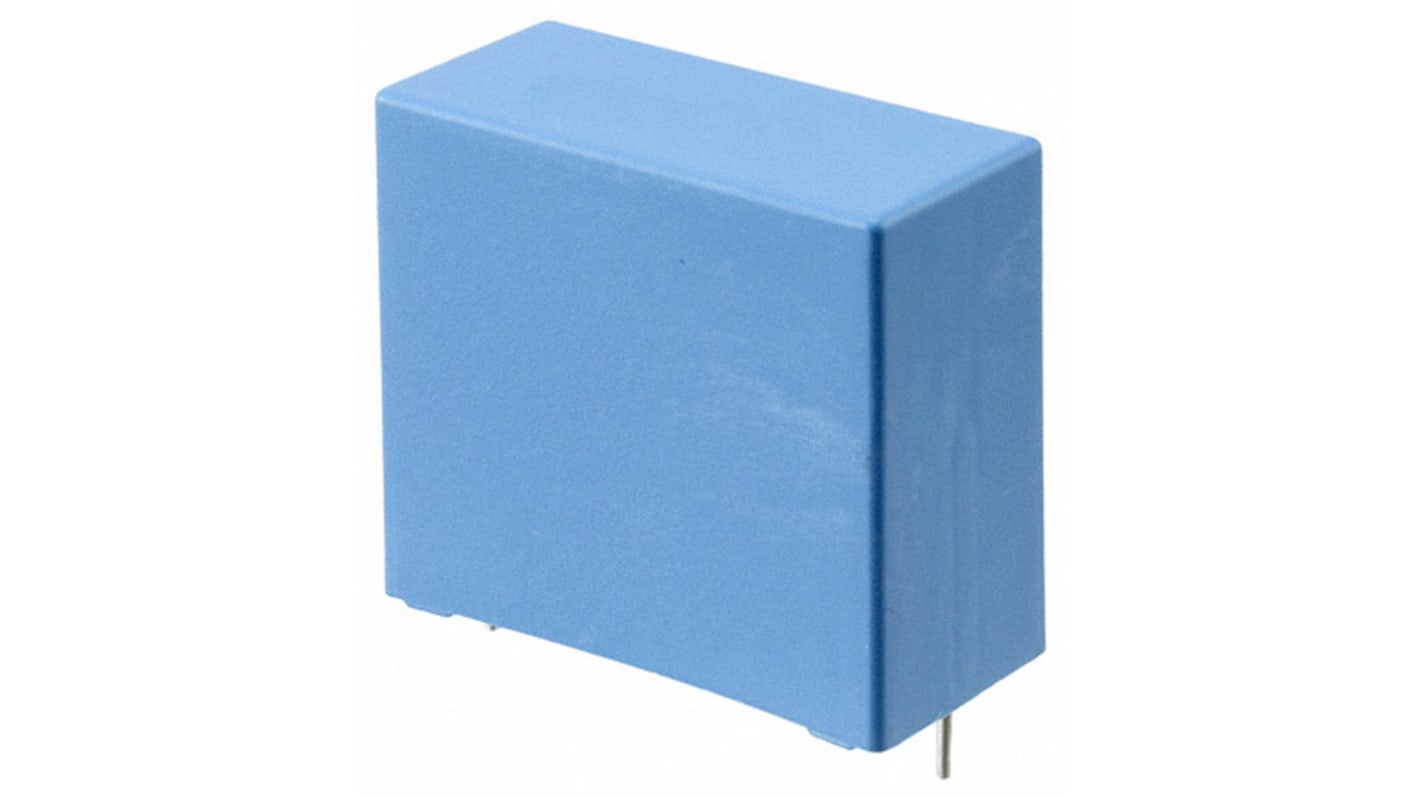

KEMET PHE450 Polypropylene Capacitor PP, 630V dc, ±5%, 680nF

View all Film Capacitors
Bulk discount available

Subtotal (1 pack of 2 units)*

£6.46

(exc. VAT)

£7.76

(inc. VAT)

Add to Basket
Select or type quantity
Temporarily out of stock
  • 999,999,998 unit(s) shipping from 15 April 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
Per Pack*
2 - 28£3.23£6.46
30 - 74£2.91£5.82
76 +£2.53£5.06

*price indicative

RS Stock No.:
135-3467
Mfr. Part No.:
PHE450MF6680JR06L2
Brand:
KEMET
Find similar products by selecting one or more attributes.
Select all

Brand

KEMET

Capacitance

680nF

Voltage

630V dc

Tolerance

±5%

Series

PHE450

Lead Pitch

27.5mm

Length

31.5mm

Lead Length

6mm

Depth

14.5mm

Height

24.5mm

Dimensions

31.5 x 14.5 x 24.5mm

Terminal Type

Radial

Maximum Operating Temperature

+105°C

Dissipation Factor

0.0003 % @ 1 kHz, 0.0006 % @ 10 kHz

Minimum Operating Temperature

-55°C

Lead Diameter

0.8mm

KEMET PHE450 Series Metallized Polypropylene Capacitors


KEMET PHE450 series double metallized polypropelene film capacitors are encapsulated in a self-extinguishing resin in a box of material which meets UL 94 V-0 requirements. Suitable for applications with high current stress like protection circuits in switch mode power supplies and deflection circuits in televisions.

Features


Double metallised polypropylene film pulse capacitor
Rated voltage: 250 V dc to 3000 V dc
Rated voltage: 180 to 1000 V ac
Capacitance tolerance: ±5%, other tolerances on request
Lead spacing: 7.5 mm to 37.5 mm


Radial 105°C


Encapsulated in self-extinguishing material meeting the requirements of UL94V-0
