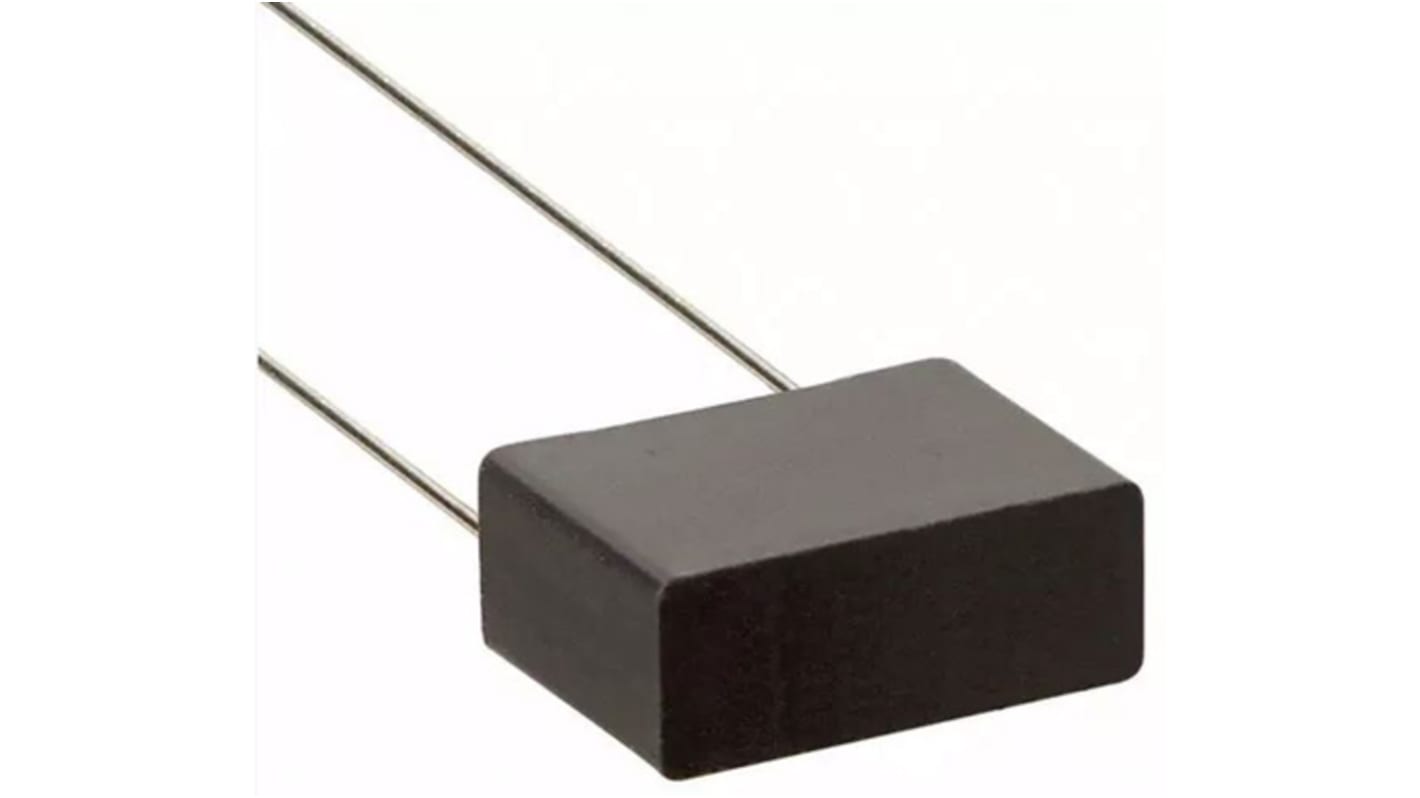

Panasonic ECWFE Film Capacitor, ±5 %, 1 μF 450 V dc, Through Hole
- RS Stock No.:
- 105-1068
- Mfr. Part No.:
- ECWFE2W105JA
- Brand:
- Panasonic
Subtotal (1 bag of 10 units)*
£3.18
(exc. VAT)
£3.82
(inc. VAT)
FREE delivery for orders over £60.00
Limited stock
- 160 left, ready to ship
- Plus 140 left, ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Bag* |
|---|---|---|
| 10 + | £0.318 | £3.18 |
*price indicative
- RS Stock No.:
- 105-1068
- Mfr. Part No.:
- ECWFE2W105JA
- Brand:
- Panasonic
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Panasonic | |
| Capacitance | 1μF | |
| Product Type | Film Capacitor | |
| Mount Type | Through Hole | |
| Tolerance | ±5 % | |
| Packaging | Bag | |
| Series | ECWFE | |
| Rated DC Voltage | 450V dc | |
| Lead Pitch | 15mm | |
| Automotive Standard | AEC-Q200 | |
| Terminal Type | Radial | |
| Application | High Frequency Circuit, Active Filter Circuit | |
| Lead Length | 4mm | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | 105°C | |
| Standards/Approvals | CSA E60384-14, EN 60384-14, UL 60384-14 | |
| Width | 7mm | |
| Height | 12.5mm | |
| Length | 17.5mm | |
| Lead Diameter | 0.8mm | |
| Dissipation Factor | 0.1% | |
| Select all | ||
|---|---|---|
Brand Panasonic | ||
Capacitance 1μF | ||
Product Type Film Capacitor | ||
Mount Type Through Hole | ||
Tolerance ±5 % | ||
Packaging Bag | ||
Series ECWFE | ||
Rated DC Voltage 450V dc | ||
Lead Pitch 15mm | ||
Automotive Standard AEC-Q200 | ||
Terminal Type Radial | ||
Application High Frequency Circuit, Active Filter Circuit | ||
Lead Length 4mm | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature 105°C | ||
Standards/Approvals CSA E60384-14, EN 60384-14, UL 60384-14 | ||
Width 7mm | ||
Height 12.5mm | ||
Length 17.5mm | ||
Lead Diameter 0.8mm | ||
Dissipation Factor 0.1% | ||
- COO (Country of Origin):
- CN
ECWFE Series
The ECWFE series from Panasonic are metallised polypropylene film capacitors. These film capacitors are Compact and feature a flame retardant case with non-combustible epoxy resin. With a Durable and robust boxed exterior, these film capacitors are far more capable of withstanding vibration than standard dipped capacitors. With built-in fuse functionality, ECWFE capacitors will not short circuit, but open upon failure. The use of a polypropylene dielectric material ensures better electrical characteristics than a polyester dielectric.
Rated for 450 V dc applications
Polypropylene dielectric
Built in fuse and failsafe design
Non-inductive construction
Excellent frequency characteristics
Low loss
Low hum sound noise
Product Application Information
ECWFE film capacitors are recommended for use in high frequency circuits, high current circuits and Active filter circuits. ECWFE polypropylene capacitors are designed for use in the industrial automation, IT and alternative energy industries. Suitable applications include power supplies, PFC, servers and automation equipment where vibration is a concern.
Radial 105°C
Encapsulated in self-extinguishing material meeting the requirements of UL94V-0
