TREND Networks FiberMaster Quad Single Mode & Multimode Fibre Optic Test Kit
- RS Stock No.:
- 702-3993
- Mfr. Part No.:
- FibreMaster Quad
- Brand:
- TREND Networks
Subtotal (1 unit)*
£1,446.32
(exc. VAT)
£1,735.58
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 4 unit(s) ready to ship
- Plus 1 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 + | £1,446.32 |
*price indicative
- RS Stock No.:
- 702-3993
- Mfr. Part No.:
- FibreMaster Quad
- Brand:
- TREND Networks
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | TREND Networks | |
Cable Type | Single Mode & Multimode | |
Equipment Type | Fibre Optic Test Kit | |
Connector Type | Fixed SC, Fixed ST | |
Wavelengths | 850 nm, 1300 nm, 1310 nm, 1490 nm, 1550 nm | |
Maximum Power Measurement | +3dBm | |
Battery Type | AAA | |
Battery Life | 360 h, 40 h | |
Power Source | Battery | |
Maximum Operating Temperature | +60°C | |
Minimum Output Power | -6dBm | |
Minimum Operating Temperature | -10°C | |
Model Number p | FiberMaster Quad | |
Select all | ||
---|---|---|
Brand TREND Networks | ||
Cable Type Single Mode & Multimode | ||
Equipment Type Fibre Optic Test Kit | ||
Connector Type Fixed SC, Fixed ST | ||
Wavelengths 850 nm, 1300 nm, 1310 nm, 1490 nm, 1550 nm | ||
Maximum Power Measurement +3dBm | ||
Battery Type AAA | ||
Battery Life 360 h, 40 h | ||
Power Source Battery | ||
Maximum Operating Temperature +60°C | ||
Minimum Output Power -6dBm | ||
Minimum Operating Temperature -10°C | ||
Model Number p FiberMaster Quad | ||
- COO (Country of Origin):
- CN
Fibre Optic Test Kit including Light Source and Power Meter
The FiberMASTER fibre optic test kit quickly measures cabling loss with the automatic calibration feature that stores reference power from any light source for quick dB loss calculations. This equipment allows the user to measure absolute power and calculate the loss of fibre optic links at several wavelengths. The dB calibration feature allows the operator to set a reference level to the light source and directly read the loss of fibre optic links without the need to manually calculate the values.
This kit features 850, 1300, 1310 and 1550 wavelength measurement capabilities and the light source has interchangeable connectors. The unique design of this test kit allows the light source to be docked neatly within the power meter making the kit compact for easy storage while still allowing full operation of both, the source and meter.
This kit features 850, 1300, 1310 and 1550 wavelength measurement capabilities and the light source has interchangeable connectors. The unique design of this test kit allows the light source to be docked neatly within the power meter making the kit compact for easy storage while still allowing full operation of both, the source and meter.
Features and Benefits
850/1300nm LED light source
1310/1550nm laser diode
Includes 2 x ST, SC and FC adapters
Power LED lights green when light source is active
Docks in the bottom of the power meter for easy storage
Operates on standard 3xAAA batteries (not supplied)
Low battery indication
Operating temperature ranges between p -10°C and 60°C(Power meter)
Operating time 360 hours(Power meter)
1310/1550nm laser diode
Includes 2 x ST, SC and FC adapters
Power LED lights green when light source is active
Docks in the bottom of the power meter for easy storage
Operates on standard 3xAAA batteries (not supplied)
Low battery indication
Operating temperature ranges between p -10°C and 60°C(Power meter)
Operating time 360 hours(Power meter)
Applications
Measure and locate high loss splices
Measure and locate high loss connections and breaks
Locate the end of the fibre
Find potential sources of error caused by reflectance from dirty or poor connections
Detects live optical signals before it begins testing
Measure and locate high loss connections and breaks
Locate the end of the fibre
Find potential sources of error caused by reflectance from dirty or poor connections
Detects live optical signals before it begins testing
Certifications
ANSI/ESD S20.20:2014
BS EN 61340-5-1:2007
BS EN 61340-5-1:2007
Supplied with
33-929 Light source, 850, 1300, 1310, 1550 laser light source with ST, SC and FC adaptors
33-927 Power meter, 4 wavelength with universal 2.5mm and fixed FC adaptor
2x SC-SC 50μm multimode cables
1 SC calibration coupler

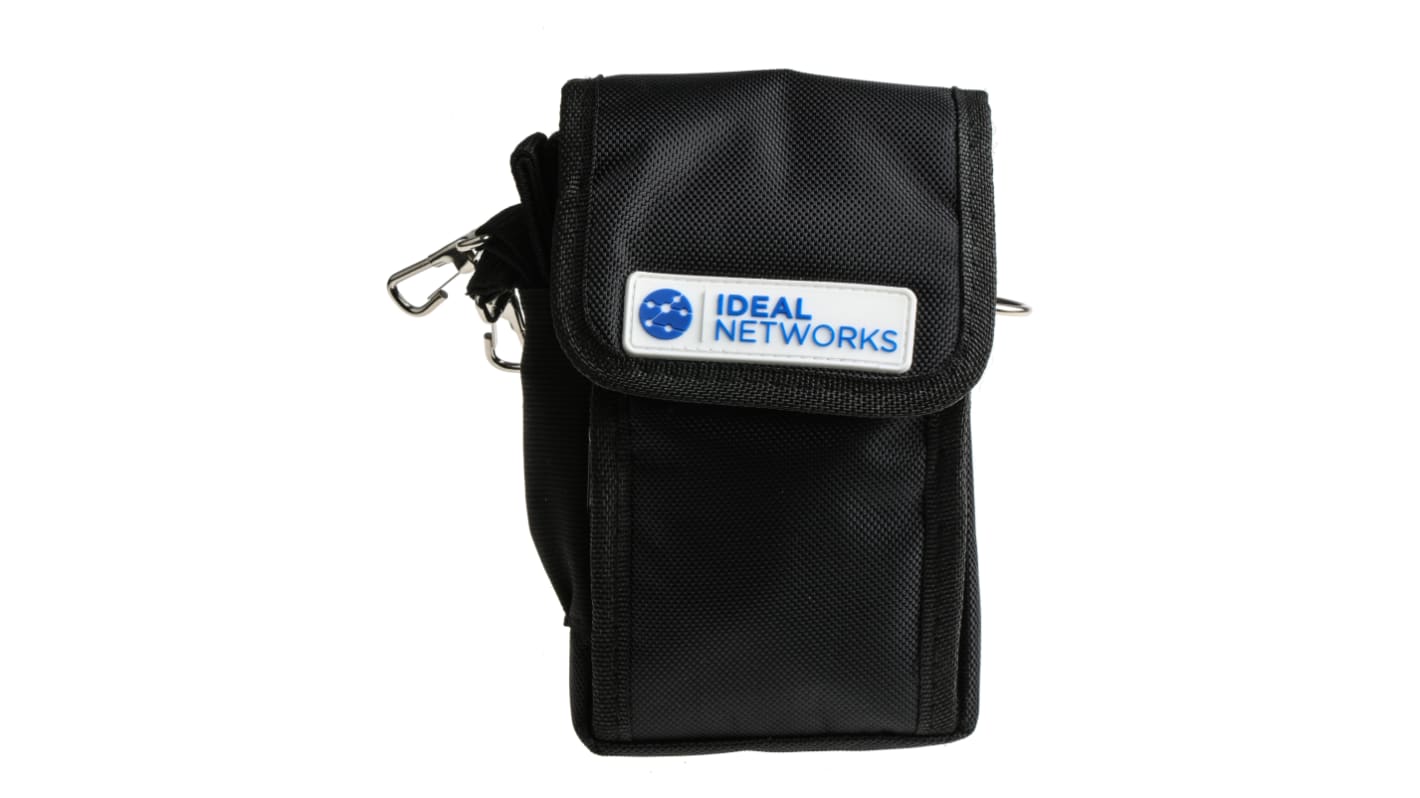

Carrying case
User Manual in English, Spanish, German, French, Portuguese, Italian and Chinese
33-927 Power meter, 4 wavelength with universal 2.5mm and fixed FC adaptor
2x SC-SC 50μm multimode cables
1 SC calibration coupler
Carrying case
User Manual in English, Spanish, German, French, Portuguese, Italian and Chinese
