The TREND Networks FiberMASTER fibre optic test kit has a maximum output power of 3dBm. It quickly measures cabling loss with the automatic calibration feature that stores reference power from any light source for quick dB loss calculations. It also has various wavelength measurement mode that is perfect for troubleshooting emerging fibre to the home cabling systems.
This kit features 850, 1300, 1310, 1490 and 1550 wavelength measurement capabilities and the light source (850nm) has interchangeable connectors. Both the power meter and light source run on 3 x AAA batteries. The design of the kit means that the light source can be attached within the power meter for easy storage while using both the source and meter.

Accepts ST, SC and FC connectors
Four wavelength power meter
Multimode and single mode testing
850nm multimode LED light source
Auto power OFF
Includes universal adapter
Operates on standard 3xAAA batteries
Power measurement in dBm and mW, loss display in dB
Power LED that turns green when light source is active
Low battery indication

Measure and locate high-loss splices, connections and breaks
Locate the end of a fibre
Find potential sources of error caused by reflectance from dirty or poor connections
Detect live optical signals before it begins testing

ANSI/ESD S20.20:2014
BS EN 61340-5-1:2007

33-926 Light source, 850nm LED with ST, SC, and FC adaptors

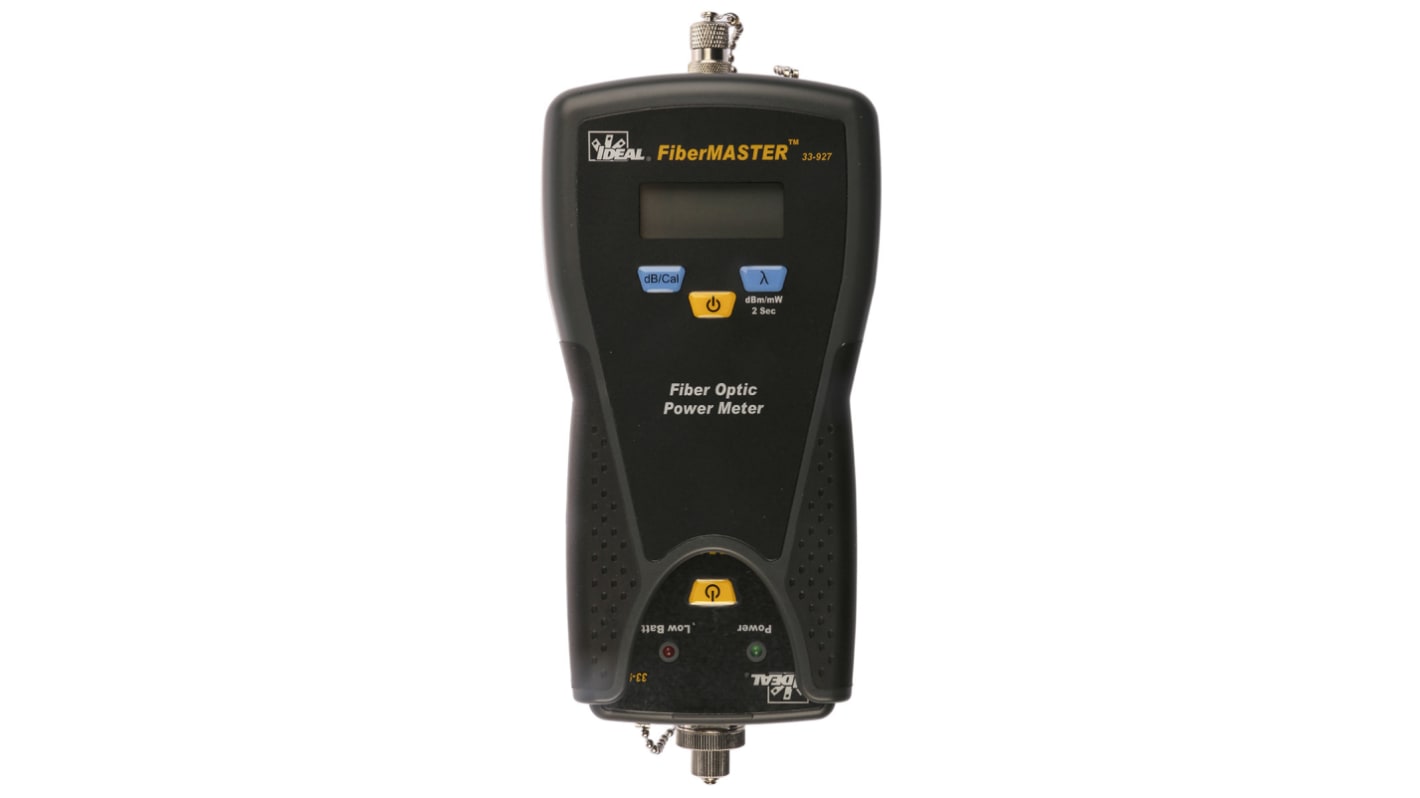

33-927 Power meter, 4 wavelength with universal 2.5mm and fixed FC adaptor
2x FC-SC 50μm multimode cables
1 SC calibration coupler
Carrying case
English, Spanish, German, French, Portuguese, Italian and Chinese user’s manual
