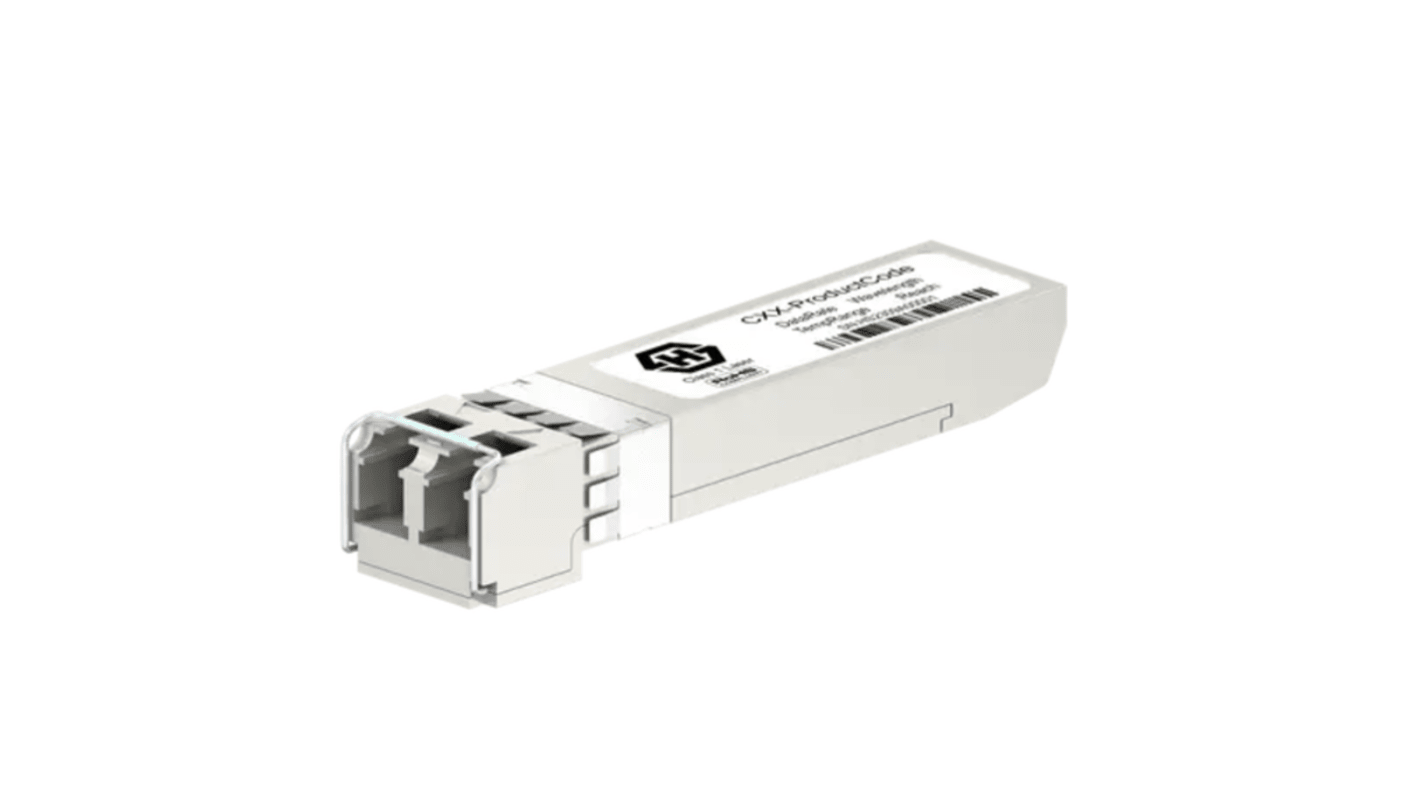

Huber+Suhner SFP Multimode Transceiver Module, Full Duplex, 1000Mbit/s
- RS Stock No.:
- 286-758
- Mfr. Part No.:
- CSM-300A08HP11-85
- Brand:
- Huber+Suhner
Bulk discount available
View bulk pricing optionsSubtotal (1 unit)*
£21.93
(exc. VAT)
£26.32
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- Plus 1 unit(s) shipping from 10 June 2026
- Plus 10 unit(s) shipping from 26 June 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 9 | £21.93 |
| 10 + | £20.19 |
*price indicative
- RS Stock No.:
- 286-758
- Mfr. Part No.:
- CSM-300A08HP11-85
- Brand:
- Huber+Suhner
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Huber+Suhner | |
| Product Type | Transceiver | |
| Wavelength | 850nm | |
| Standards/Approvals | ISO 14001, AS/ EN 9100 and ISO/TS 22163-IRIS, ISO 45001, IATF 16949, ISO 9001 | |
| Maximum Data Transfer Rate | 1.25Gbps | |
| Network Speed | 1000Mbit/s | |
| Connection Port | SFP | |
| Fibre Operating Mode | Full Duplex | |
| Fibre Type | Multimode | |
| Maximum Transfer Distance | 550m | |
| Select all | ||
|---|---|---|
Brand Huber+Suhner | ||
Product Type Transceiver | ||
Wavelength 850nm | ||
Standards/Approvals ISO 14001, AS/ EN 9100 and ISO/TS 22163-IRIS, ISO 45001, IATF 16949, ISO 9001 | ||
Maximum Data Transfer Rate 1.25Gbps | ||
Network Speed 1000Mbit/s | ||
Connection Port SFP | ||
Fibre Operating Mode Full Duplex | ||
Fibre Type Multimode | ||
Maximum Transfer Distance 550m | ||
The Huber & Suhner Transceiver provides data rates of 125 Mbps and 1.0625 to 1.25 Gbps with a reach of up to 550m. It features an 850nm wavelength, LC/PC duplex connector, multimode fiber, and operates within a temperature range of 0 to 70°C. The system offers a link budget of at least 8 dB and consumes less than 1 W of power.
Media type multimode
Adapter LC or PC duplex
Modulation format NRZ
