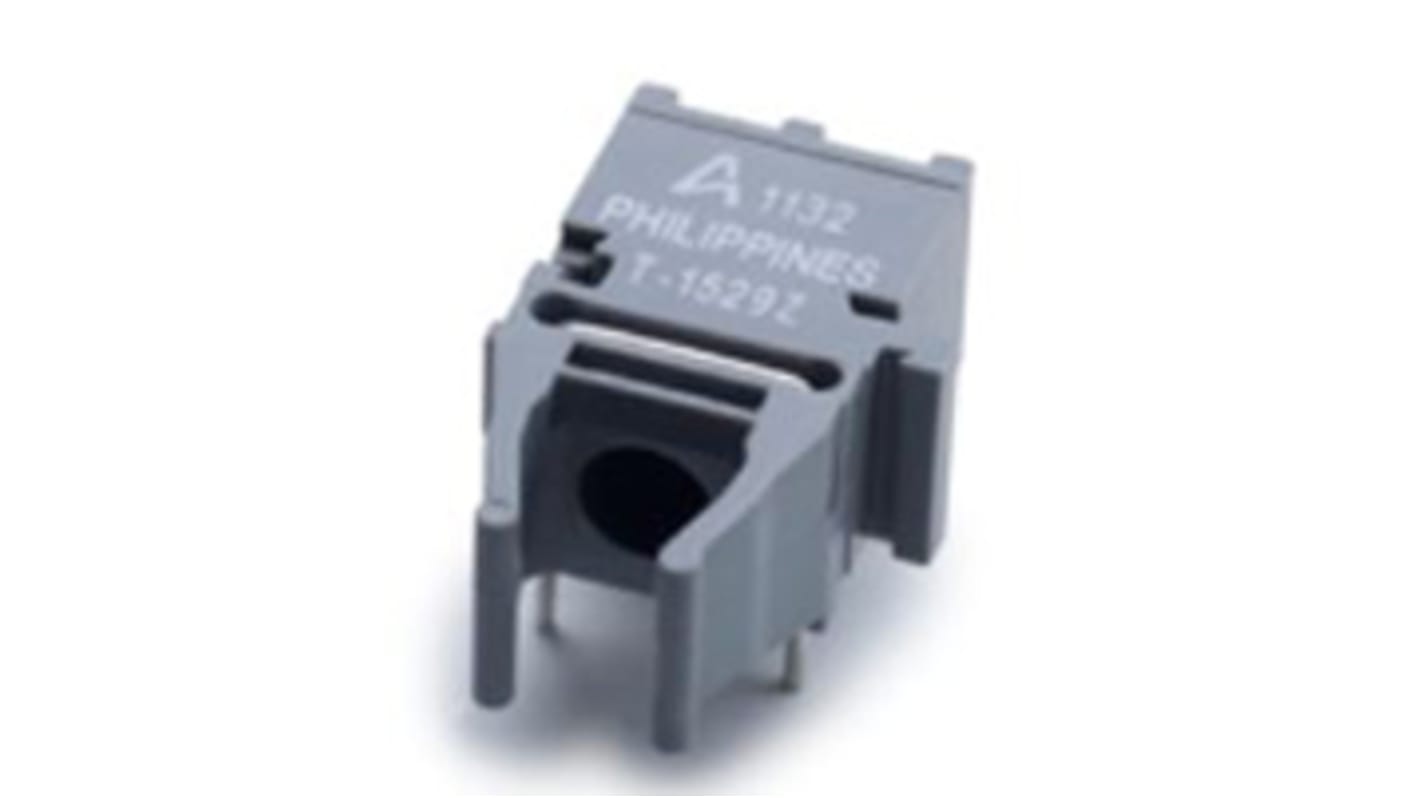

Broadcom AFBR-1529Z 10 Mbps Fibre Optic Transmitter, Rectangular 650 nm Versatile Link Connector

View all Fibre Optic Transmitters

Subtotal (1 unit)*

£12.98

(exc. VAT)

£15.58

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • 908 unit(s) ready to ship
  • Plus 3 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
1 +£12.98

*price indicative

RS Stock No.:
910-7093
Mfr. Part No.:
AFBR-1529Z
Brand:
Broadcom
Find similar products by selecting one or more attributes.
Select all

Brand

Broadcom

Product Type

Fibre Optic Transmitter

Maximum Data Rate

10Mbps

Connector Shape

Rectangular

Wavelength of Peak Sensitivity

650nm

Typical Rise Time

30ns

Typical Fall Time

30ns

Connector Type

Versatile Link

Maximum Data Transmission Distance

50m

Standards/Approvals

No

Series

AFBR

Forward Voltage

2.3V

AFBR-15x9Z Series Fibre Optic Transmitters


The AFBR-15x9Z series, from Avago Technologies, are a family of analogue transmitters designed for 1 mm Polymer Optical Fibre (POF) and 200 μm PCS. The AFBR-15x9Z fibre optic transmitters use a 650 nm LED.

Their 4-pin Versatile Link packages are designed to be interlocked together, making them ideal for applications where space saving is required. Other suitable applications for the AFBR-15x9Z series include; factory automation, serial field buses, high voltage isolation and extensions of RS-232/RS-485.

Features of the AFBR-15x9Z fibre optic transmitters:

Versatile Link housing

Utilises 650 nm LED

DC to 10 Mbd data transmission

For use with HFBR-25xxZ, AFBR-25xxZ and AFBR-26xxZ receivers

Fibre Optics, Avago Technologies
