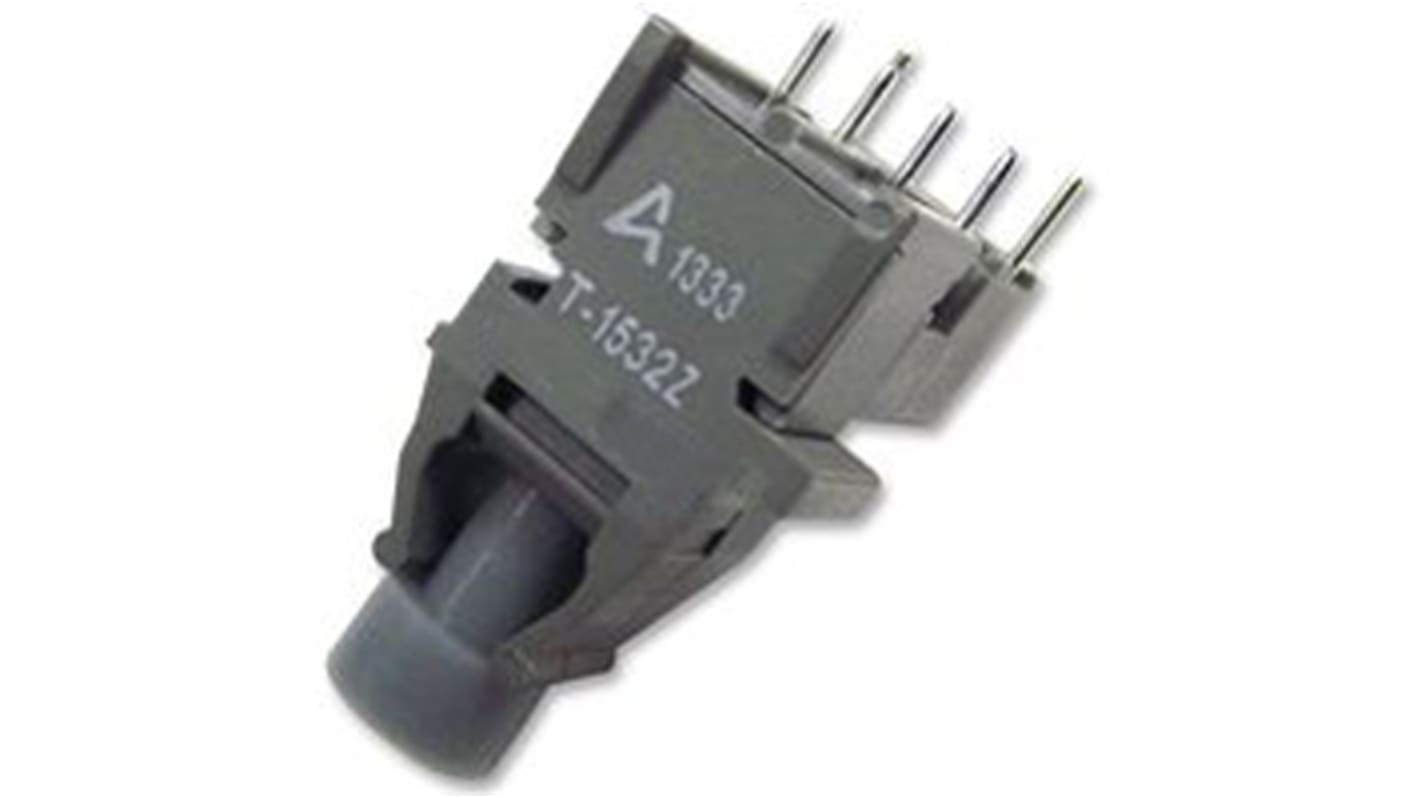

Broadcom HFBR-1532Z, 1MBd Fibre Optic Transmitter 660nm Versatile Link Connector, 18.29 x 12.19 x 18.8mm
- RS Stock No.:
- 801-9241
- Mfr. Part No.:
- HFBR-1532Z
- Brand:
- Broadcom
151 In stock - FREE next working day delivery available
2 available from Europe for delivery within 2 working day(s).
Price Each
£16.46
(exc. VAT)
£19.75
(inc. VAT)
Units | Per unit |
---|---|
1 - 9 | £16.46 |
10 - 24 | £15.60 |
25 - 49 | £14.81 |
50 - 99 | £14.01 |
100 + | £12.36 |
- RS Stock No.:
- 801-9241
- Mfr. Part No.:
- HFBR-1532Z
- Brand:
- Broadcom
Technical Reference
Legislation and Compliance
Product Details
HFBR-0500Z Series Fibre Optic Connection
The HFBR-x5xxZ family, from Avago Technologies, form a part of the Versatile Link series. They are fibre optic link components including transmitters, receivers, connectors and cables. The HFBR-x5xxZ series are suitable solutions for problems with voltage isolation and insulation, EMI/RFI immunity or data security.
This family of devices consists of a variety of package configurations and connectors, providing a range of mechanical design solutions for the necessary application requirements.
The HFBR-x5xxZ transmitters use a 660nm LED for easy visibility. The receivers include a monolithic DC coupled, digital IC receiver with open collector Schottky output transistor.
The HFBR-x5xxZ series are ideal for a wide variety of applications including; motor controller triggering, data communications, local area networks and noise immune communication in audio and video equipment.
This family of devices consists of a variety of package configurations and connectors, providing a range of mechanical design solutions for the necessary application requirements.
The HFBR-x5xxZ transmitters use a 660nm LED for easy visibility. The receivers include a monolithic DC coupled, digital IC receiver with open collector Schottky output transistor.
The HFBR-x5xxZ series are ideal for a wide variety of applications including; motor controller triggering, data communications, local area networks and noise immune communication in audio and video equipment.
Features of the HFBR-x5xxZ series:
- Fibre optic components
- Enhanced digital links: dc-5 MBd
- Extended distance links: up to 120m at 40kBd
- Low current link: 6mA peak supply current
- Horizontal and vertical mounting
- Interlocking feature
- High noise immunity
- Easy connecting: simplex, duplex and latching connectors
- Flame retardant
- Compatible with standard TTL circuitry
- Fibre optic components
- Enhanced digital links: dc-5 MBd
- Extended distance links: up to 120m at 40kBd
- Low current link: 6mA peak supply current
- Horizontal and vertical mounting
- Interlocking feature
- High noise immunity
- Easy connecting: simplex, duplex and latching connectors
- Flame retardant
- Compatible with standard TTL circuitry
Fibre Optics, Avago Technologies
Specifications
Attribute | Value |
---|---|
Maximum Data Rate | 1MBd |
Typical Rise Time | 80ns |
Typical Fall Time | 40ns |
Peak Wavelength | 660nm |
Mounting Type | Through Hole |
Number of Pins | 6 |
Dimensions | 18.29 x 12.19 x 18.8mm |
Connector Type | Versatile Link |
Height | 18.8mm |
Length | 18.29mm |
Width | 12.19mm |
Series | Versatile Link |
