RS PRO 16 Mbps Fibre Optic Transmitter, Square 670 nm Fibre Optic Connector Connector 14.3 mm 13 mm, 11.5 mm

View all Fibre Optic Transmitters
Bulk discount available

Subtotal (1 pack of 5 units)*

£6.73

(exc. VAT)

£8.08

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • 40 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Pack(s)
Per Pack
Per unit*
1 - 4£6.73£1.346
5 - 9£6.19£1.238
10 +£5.58£1.116

*price indicative

RS Stock No.:
458-681
Brand:
RS PRO
Find similar products by selecting one or more attributes.
Select all

Brand

RS PRO

Maximum Data Rate

16Mbps

Product Type

Fibre Optic Transmitter

Connector Shape

Square

Wavelength of Peak Sensitivity

670nm

Typical Rise Time

30ns

Typical Fall Time

30ns

Connector Type

Fibre Optic Connector

Maximum Data Transmission Distance

20m

Height

14.3mm

Length

11.5mm

Width

13 mm

Standards/Approvals

RoHS, EIAJ CP-1201 digital audio interface standard

COO (Country of Origin):
CN

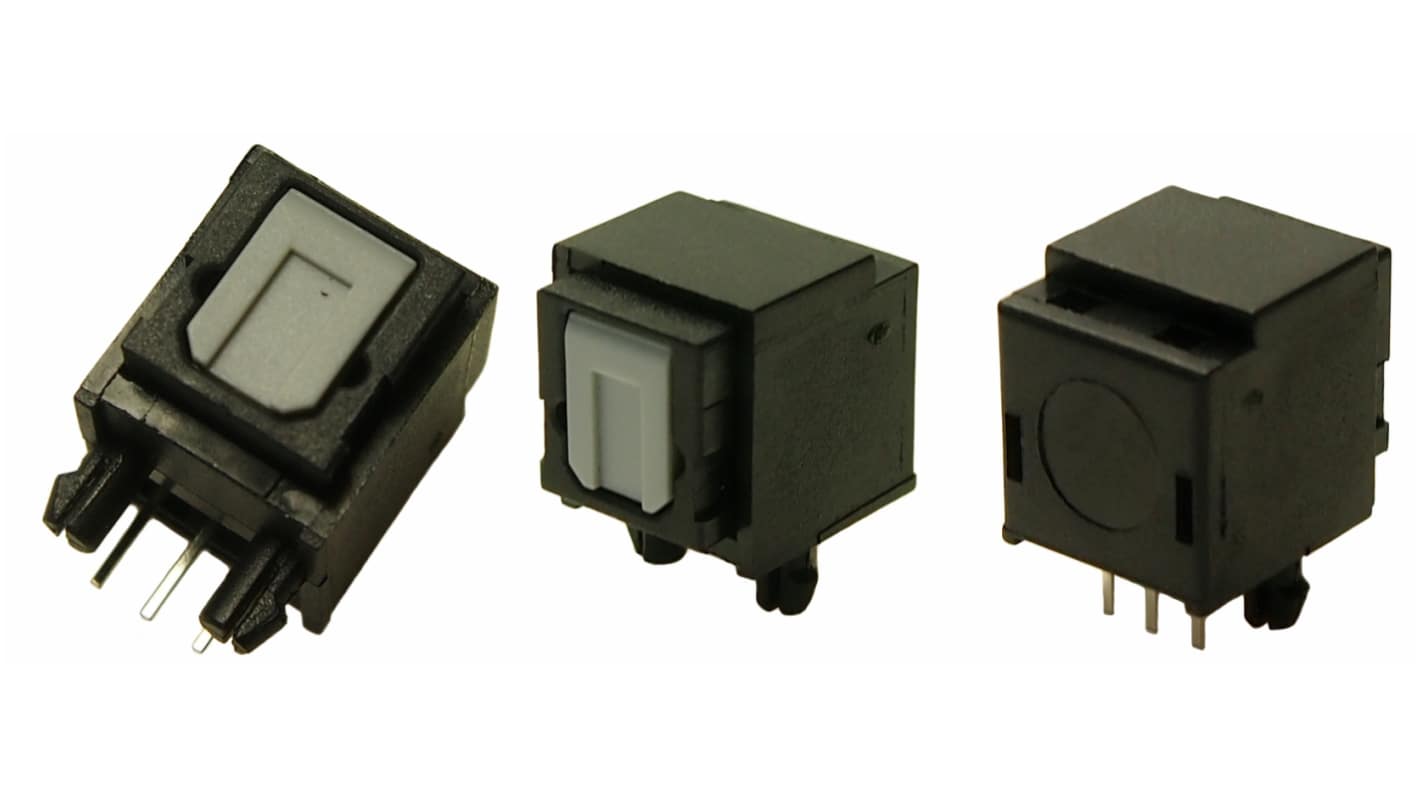

The RS Pro Optical Transmitter Jack Light Transmitting Unit is a standard-package product featuring a connector and an opto-electric component integrated with an LED and drive IC. It converts electric signals into light signals, which are transmitted via plastic fibber. Operating at a single voltage range of +3V to +5V with a TTL-compatible input signal, it achieves a maximum operating speed of 16Mbps. The light signal is efficiently coupled into plastic fibber through a connector, ensuring high performance with low dissipation current, steady light output, and effective light coupling. Applications include audio equipment, DVD players, TVs, digital optical data links, sound cards, and set-top boxes.

High Speed signal transmission

Input TTL Compatible

Hinged shutter to prevent contamination

Nylon body
