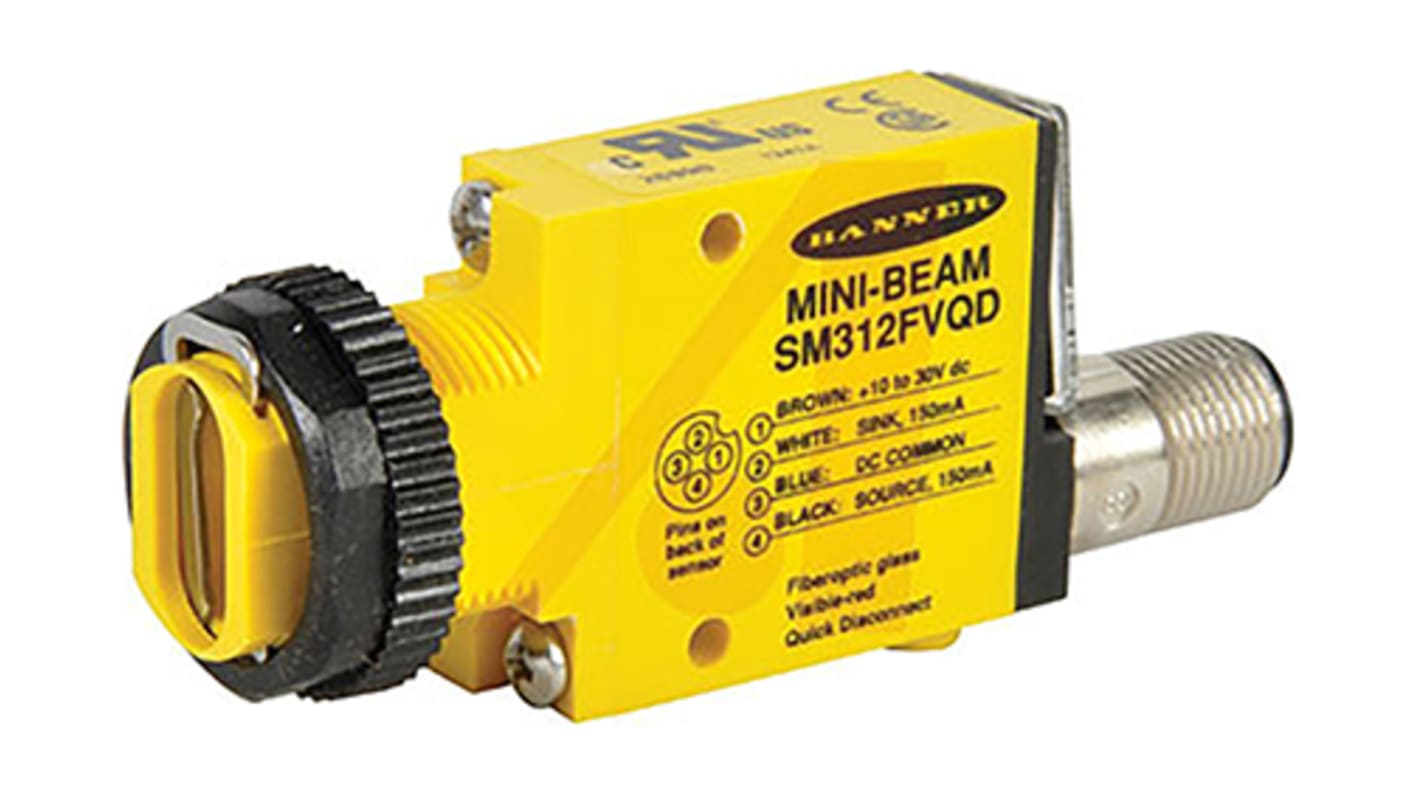

Banner Plastic Fibre Optic, Glass Fibre Optic Fibre Optic Sensor 10 mm to 30 m, Bipolar NPN/PNP Open Collector Output,
- RS Stock No.:
- 848-6203
- Mfr. Part No.:
- SM312FVQD
- Brand:
- Banner
Subtotal (1 unit)*
£149.56
(exc. VAT)
£179.47
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- 2 unit(s) ready to ship
- Plus 5 unit(s) shipping from 08 May 2026
- Plus 7 unit(s) shipping from 22 May 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £149.56 |
*price indicative
- RS Stock No.:
- 848-6203
- Mfr. Part No.:
- SM312FVQD
- Brand:
- Banner
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Banner | |
| Detection Range | 10 mm to 30 m | |
| Product Type | Fibre Optic Sensor | |
| Output Type | Bipolar NPN/PNP Open Collector | |
| Fibre Optic Type | Plastic Fibre Optic, Glass Fibre Optic | |
| Response Time | 1ms | |
| Light Source | Visible Red | |
| Terminal Type | Quick Connect | |
| Switching Frequency | 500Hz | |
| Maximum Supply Voltage | 30V dc | |
| IP Rating | IP67 | |
| Minimum Operating Temperature | -20°C | |
| Housing Material | Reinforced Thermoplastic Polyester | |
| Maximum Operating Temperature | 70°C | |
| Series | MINI-BEAM | |
| Width | 30.7mm | |
| Standards/Approvals | 3S, 4X, IEC, NEMA 1 | |
| Length | 57.5mm | |
| Depth | 12.2mm | |
| Mount Type | Threaded Barrel, Bracket | |
| Select all | ||
|---|---|---|
Brand Banner | ||
Detection Range 10 mm to 30 m | ||
Product Type Fibre Optic Sensor | ||
Output Type Bipolar NPN/PNP Open Collector | ||
Fibre Optic Type Plastic Fibre Optic, Glass Fibre Optic | ||
Response Time 1ms | ||
Light Source Visible Red | ||
Terminal Type Quick Connect | ||
Switching Frequency 500Hz | ||
Maximum Supply Voltage 30V dc | ||
IP Rating IP67 | ||
Minimum Operating Temperature -20°C | ||
Housing Material Reinforced Thermoplastic Polyester | ||
Maximum Operating Temperature 70°C | ||
Series MINI-BEAM | ||
Width 30.7mm | ||
Standards/Approvals 3S, 4X, IEC, NEMA 1 | ||
Length 57.5mm | ||
Depth 12.2mm | ||
Mount Type Threaded Barrel, Bracket | ||
- COO (Country of Origin):
- US
Mini-Beam SM312 Series Sensors
The SM312 series of photoelectric sensors from Banner are self contained DC operated sensors. This Mini-Beam SM312 series are compact high performance sensors with 18 mm threaded lens, The SM312 Series are ideal for registration mark detection, baggage handling and bottle conveying applications.
Expert models with push button TEACH mode configuration available
Plastic housing, M18 front "nose" mount or screw fixing
Push button or remote programming
Automatic, Precise, Low contrast sensitivity adjustments
Bipolar output, light-on/dark-on functions
Multi-function LEDs for easy set-up and monitoring
Full electrical protection
Available in opposed, opposed clear plastic, polarized, non-polarized retro-reflective, convergent and diffuse
Caution
Laser radiation is harmful to the human eye and under no circumstances should the laser beam be viewed directly or via optical instruments.
Supplied with
Mounting bracket, Retro-reflective models are also supplied with a reflector.
