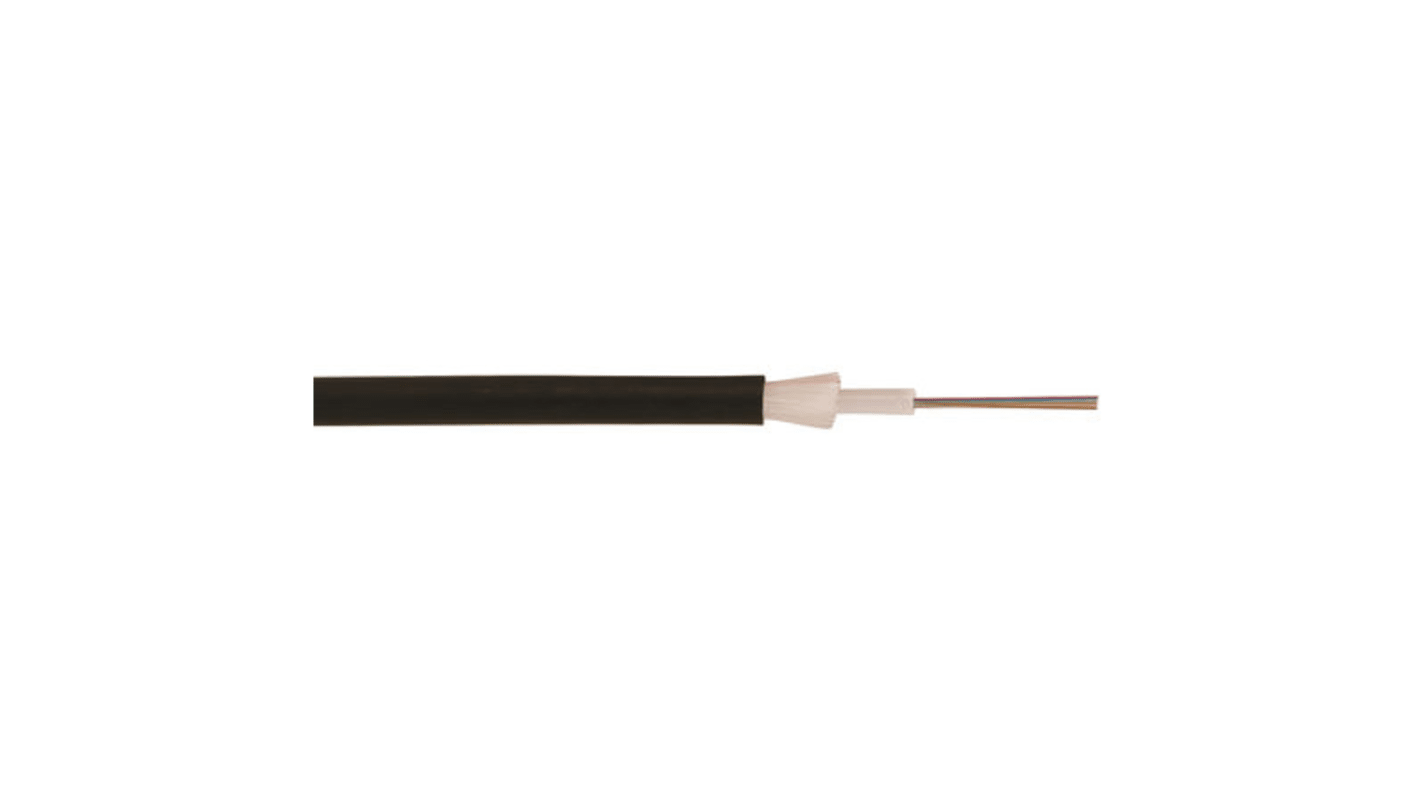

RS PRO Duplex Multi Mode OM3 Fibre Optic Cable, 6.5mm, Black, 250m

View all Fibre Optic Cable

Subtotal (1 reel of 250 metres)*

£504.31

(exc. VAT)

£605.17

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • Plus 13 unit(s) shipping from 27 October 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Reel(s)
Per Reel
Per Metre*
1 +£504.31£2.017

*price indicative

RS Stock No.:
123-5717
Brand:
RS PRO
Find similar products by selecting one or more attributes.
Select all

Brand

RS PRO

Length

250m

Propagation Mode

Multi Mode

Terminated/Unterminated

Unterminated

Core Diameter

6.5mm

Number of Cores

8

Sheath Colour

Black

Cable Construction

Duplex

Fibre Type

OM3

Fire Behaviour

Flame Retardant, Low Smoke Zero Halogen (LSZH)

Sheath Material

Low Smoke Zero Halogen (LSZH)

Maximum Pulling Tension

1000 (Installation) N, 500 (Installed) N

Minimum Bend Radius

10D (Installed) mm, 20D (Installation) mm

RS PRO OM3 Multi Mode Fibre Optic Cable, Unterminated, 8 Core, 6.5 mm, 250 m


Looking for a loose-tube, fibre-optic cable for use in external and internal ducts? This high-quality, multi-mode fibre-optic cable from RS PRO is compatible with Local Area Network applications. It's supplied unterminated, so you can fit the connectors you need. Cables of this kind are commonly used in campus environments.
The cable's loose-tube design makes it especially suitable for harsh outdoor environments, as the fibre core is protected by an outer jacket of cladding and coating. The eight-core cable's multimode fibres will easily support a connection over the distances that enterprise and data-centre networks usually require.
The cable also comes sheathed in flame-retardant, Low-Smoke Zero-Halogen (LSZH) material. This means that it will produce significantly less smoke and toxic gas in the event of a fire, making it easier for people to evacuate the area. This also makes it suitable for use in poorly ventilated areas, such as tunnels and skyscrapers.

Features and Benefits


• Loose-tube cable construction
• Fibre-optic cable shape
• Connector A is an unterminated type
• Connector B is an unterminated type
• Core diameter of 6.5 mm
• Flame-retardant
• Length of 250 m
• Maximum pulling tension of 1000 N (installation), 500 N (installed)
• Minimum bend radius of 20 D mm (installation), 10 D mm (installed)
• Eight cores
• OM3 multi-mode propagation mode
• Black sheath colour
• Low Smoke Zero Halogen (LSZH) sheath material
