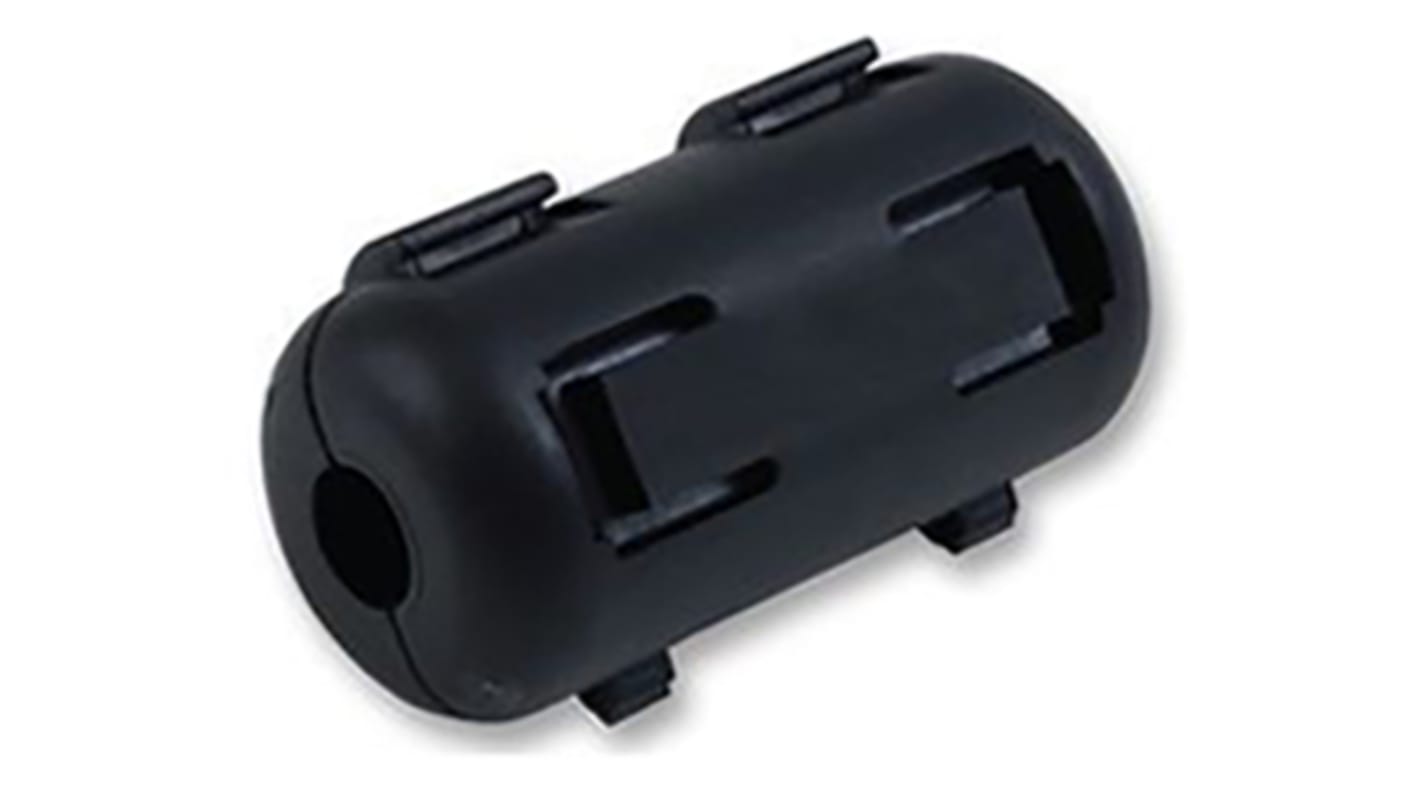

Laird Ferrite Sleeve, 22.88 x 32.77 x 21.84mm, For EMI Suppression, Diameter 10mm
- RS Stock No.:
- 888-3566
- Mfr. Part No.:
- HFA187102-0A2
- Brand:
- Laird
Currently unavailable
Sorry, we don't know when this will be back in stock.
- RS Stock No.:
- 888-3566
- Mfr. Part No.:
- HFA187102-0A2
- Brand:
- Laird
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Laird | |
| Type | Snap-On EMI Core, Split EMI Core | |
| Application | EMI Suppression | |
| Material | Ferrite | |
| Outer Dimensions | 22.88 x 32.77 x 21.84mm | |
| Impedance at 300 MHz | 220Ω | |
| Aperture Diameter | 10mm | |
| Impedance at 500 MHz | 290Ω | |
| Impedance at 1 GHz | 210Ω | |
| Outer Depth | 32.77mm | |
| Outer Height | 21.84mm | |
| Outer Width | 22.88mm | |
Select all | ||
|---|---|---|
Brand Laird | ||
Type Snap-On EMI Core, Split EMI Core | ||
Application EMI Suppression | ||
Material Ferrite | ||
Outer Dimensions 22.88 x 32.77 x 21.84mm | ||
Impedance at 300 MHz 220Ω | ||
Aperture Diameter 10mm | ||
Impedance at 500 MHz 290Ω | ||
Impedance at 1 GHz 210Ω | ||
Outer Depth 32.77mm | ||
Outer Height 21.84mm | ||
Outer Width 22.88mm | ||
- COO (Country of Origin):
- CN
Laird Ferrite Chip Beads
These Laird ferrite chip beads have been professionally designed to provide cost-effective, noise filtering. The ferrite chip beads have an ultra-compact design and offer space efficiency with superior EMI noise filtering over a wide frequency range of low to several hundred MHz for broad-band signal interfaces and up to GHz ranges for high-frequency signal lines.
Wide frequency range from low to several hundred MHz for broad-band signal interfaces
Frequency range up to GHz for high-frequency signal lines
Ultra-compact design
Frequency range up to GHz for high-frequency signal lines
Ultra-compact design
