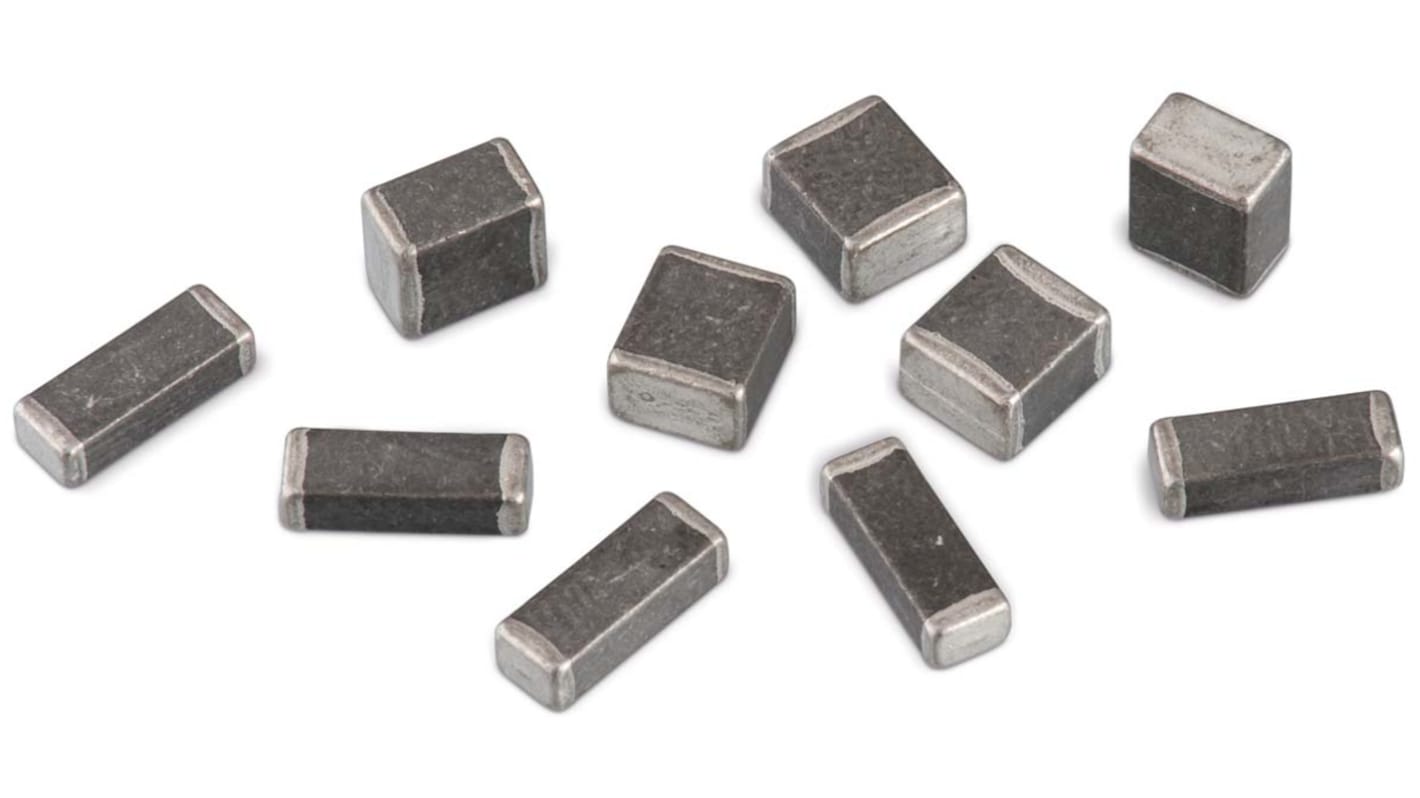

Wurth Elektronik Ferrite Bead 1.6 mm (Surface) (1206) (Ferrite Bead), 10 Ω impedance at 100 MHz
- RS Stock No.:
- 863-0864
- Distrelec Article No.:
- 304-38-072
- Mfr. Part No.:
- 74279221100
- Brand:
- Wurth Elektronik
Bulk discount available
Subtotal (1 bag of 10 units)*
£3.43
(exc. VAT)
£4.12
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- Plus 70 unit(s) shipping from 20 April 2026
- Plus 190 unit(s) shipping from 20 April 2026
- Plus 490 unit(s) shipping from 27 April 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Bag* |
|---|---|---|
| 10 - 90 | £0.343 | £3.43 |
| 100 - 490 | £0.284 | £2.84 |
| 500 - 990 | £0.235 | £2.35 |
| 1000 - 2990 | £0.226 | £2.26 |
| 3000 + | £0.215 | £2.15 |
*price indicative
- RS Stock No.:
- 863-0864
- Distrelec Article No.:
- 304-38-072
- Mfr. Part No.:
- 74279221100
- Brand:
- Wurth Elektronik
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Wurth Elektronik | |
| Product Type | Ferrite Bead | |
| Package Type | 1206 | |
| Impedance at 100 MHz | 10Ω | |
| Packaging | Tape & Reel | |
| Current Rating | 10.5A | |
| Sub Type | Ferrite Bead | |
| Mount Type | Surface | |
| Minimum Operating Temperature | -55°C | |
| Maximum Operating Temperature | 125°C | |
| Depth | 1.1mm | |
| Standards/Approvals | IPC/JEDEC J-STD-020D | |
| Height | 1.6mm | |
| Maximum DC Resistance | 3mΩ | |
| Length | 3.2mm | |
| Material | Ferrite | |
| Application | Power Supplies, High Current, DC Converter | |
| Series | WE-MPSB | |
| Automotive Standard | AEC-Q200 | |
| Select all | ||
|---|---|---|
Brand Wurth Elektronik | ||
Product Type Ferrite Bead | ||
Package Type 1206 | ||
Impedance at 100 MHz 10Ω | ||
Packaging Tape & Reel | ||
Current Rating 10.5A | ||
Sub Type Ferrite Bead | ||
Mount Type Surface | ||
Minimum Operating Temperature -55°C | ||
Maximum Operating Temperature 125°C | ||
Depth 1.1mm | ||
Standards/Approvals IPC/JEDEC J-STD-020D | ||
Height 1.6mm | ||
Maximum DC Resistance 3mΩ | ||
Length 3.2mm | ||
Material Ferrite | ||
Application Power Supplies, High Current, DC Converter | ||
Series WE-MPSB | ||
Automotive Standard AEC-Q200 | ||
- COO (Country of Origin):
- TW
EMI Multilayer Power Suppression Bead - WE-MPSB Series
Wurth WE-MPSB series Compact SMD suppression bead with high current up to 10.5A
Recommended for reflow soldering
Operating Temperature range: -55°C to +125°C
Very low RDC
Applications in Filter with high inrush current peaks; motor interference suppression; EMI suppression of DC/DC converters and DC power supply; Broadband suppression
