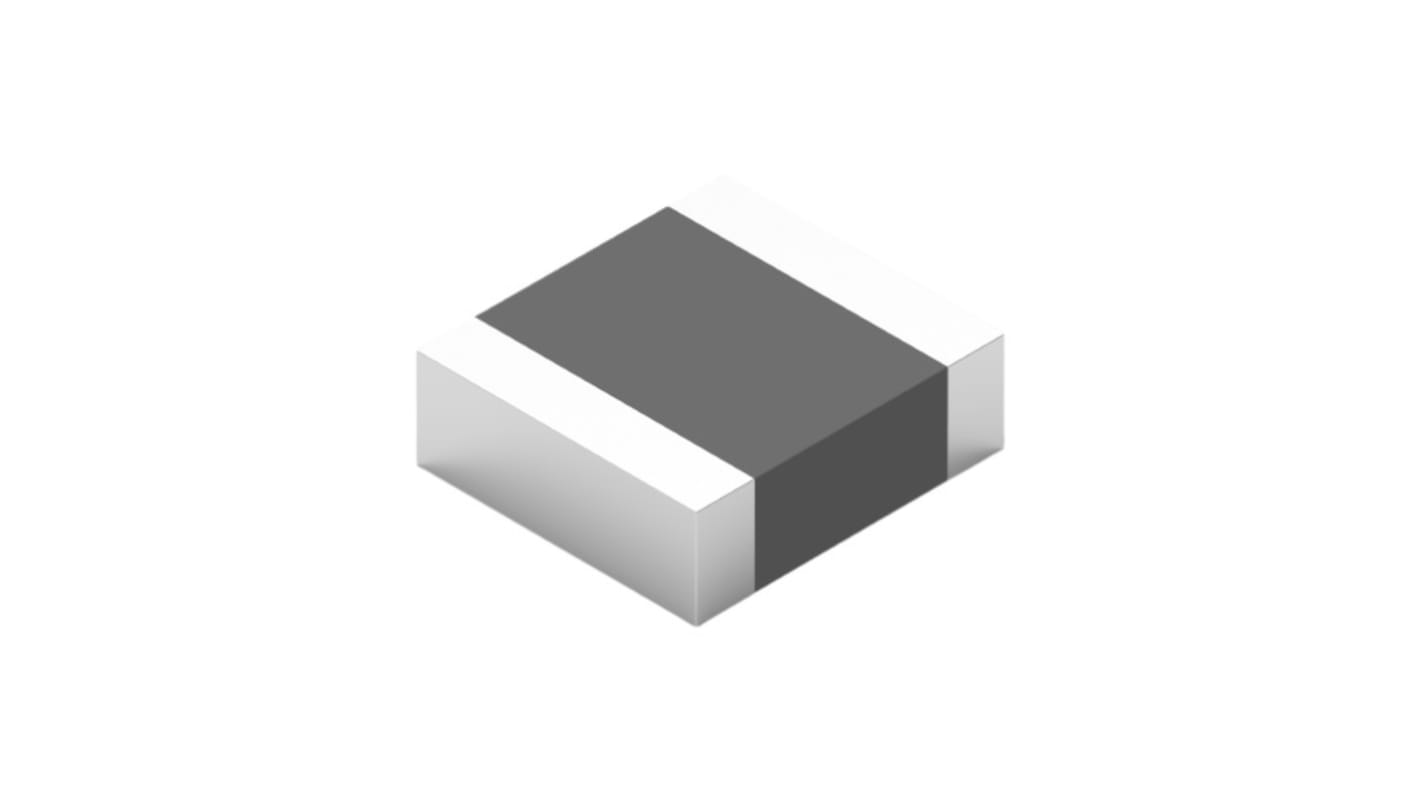

Wurth Elektronik Ferrite Bead 5.1 mm (2220) (Ferrite Bead), 550 Ω impedance at 100 MHz, 720 Ω impedance at 300 MHz
- RS Stock No.:
- 270-0821
- Mfr. Part No.:
- 7427928551
- Brand:
- Wurth Elektronik
Subtotal (1 reel of 2000 units)*
£1,366.00
(exc. VAT)
£1,640.00
(inc. VAT)
Stock information currently inaccessible - Please check back later
Units | Per unit | Per Reel* |
|---|---|---|
| 2000 + | £0.683 | £1,366.00 |
*price indicative
- RS Stock No.:
- 270-0821
- Mfr. Part No.:
- 7427928551
- Brand:
- Wurth Elektronik
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Wurth Elektronik | |
| Product Type | Ferrite Bead | |
| Package Type | 2220 | |
| Impedance at 100 MHz | 550Ω | |
| Impedance at 300 MHz | 720Ω | |
| Current Rating | 4000mA | |
| Sub Type | Ferrite Bead | |
| Minimum Operating Temperature | -55°C | |
| Maximum Operating Temperature | 125°C | |
| Depth | 5.6mm | |
| Maximum DC Resistance | 0.035Ω | |
| Height | 5.1mm | |
| Length | 1.8mm | |
| Standards/Approvals | Halogen Free Conform (IEC 61249-2-21), REACh Approval Conform or declared ((EC) 1907/2006), RoHS Approval Compliant (2011/65/EU&2015/863), Halogen Free Conform (JEDEC JS709B) | |
| Material | Polystyrene | |
| Automotive Standard | AEC-Q200 Grade 1 | |
| Select all | ||
|---|---|---|
Brand Wurth Elektronik | ||
Product Type Ferrite Bead | ||
Package Type 2220 | ||
Impedance at 100 MHz 550Ω | ||
Impedance at 300 MHz 720Ω | ||
Current Rating 4000mA | ||
Sub Type Ferrite Bead | ||
Minimum Operating Temperature -55°C | ||
Maximum Operating Temperature 125°C | ||
Depth 5.6mm | ||
Maximum DC Resistance 0.035Ω | ||
Height 5.1mm | ||
Length 1.8mm | ||
Standards/Approvals Halogen Free Conform (IEC 61249-2-21), REACh Approval Conform or declared ((EC) 1907/2006), RoHS Approval Compliant (2011/65/EU&2015/863), Halogen Free Conform (JEDEC JS709B) | ||
Material Polystyrene | ||
Automotive Standard AEC-Q200 Grade 1 | ||
- COO (Country of Origin):
- TW
The Wurth Elektronik suppression ferrite bead is used in perfect as data line filter and for uncoupling of distribution voltage, this special SMT chip bead ferrites can be put directly on the printed circuit board. They offer excellent anti-EMI properties
Reliable Ni-Sn electrodes
High rated current up to 5 A
Automotive approved
