Wurth Elektronik Ferrite Bead, 5.6 x 5.1 x 1.8mm (2220 (5650M)), 180Ω impedance at 100 MHz
- RS Stock No.:
- 146-0677
- Mfr. Part No.:
- 74279224181
- Brand:
- Wurth Elektronik
Save 18% when you buy 150 units
Subtotal (1 pack of 10 units)*
£9.23
(exc. VAT)
£11.08
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 520 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
|---|---|---|
| 10 - 20 | £0.923 | £9.23 |
| 30 - 50 | £0.878 | £8.78 |
| 60 - 90 | £0.832 | £8.32 |
| 100 - 140 | £0.79 | £7.90 |
| 150 + | £0.75 | £7.50 |
*price indicative
- RS Stock No.:
- 146-0677
- Mfr. Part No.:
- 74279224181
- Brand:
- Wurth Elektronik
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Wurth Elektronik | |
| Package Type | 2220 (5650M) | |
| Impedance at 100 MHz | 180Ω | |
| Current Rating | 5A | |
| Type | Ferrite Bead | |
| Dimensions | 5.6 x 5.1 x 1.8mm | |
| Length | 5.6mm | |
| Depth | 5.1mm | |
| Maximum DC Resistance | 10mΩ | |
| Height | 1.8mm | |
| Series | WE-MPSB | |
| Material | Ferrite | |
| Application | Broadband Suppression, EMI Suppression of DC/DC Converters & DC Power Supply, Filter with High Inrush Current Peaks, Motor Interference Suppression | |
Select all | ||
|---|---|---|
Brand Wurth Elektronik | ||
Package Type 2220 (5650M) | ||
Impedance at 100 MHz 180Ω | ||
Current Rating 5A | ||
Type Ferrite Bead | ||
Dimensions 5.6 x 5.1 x 1.8mm | ||
Length 5.6mm | ||
Depth 5.1mm | ||
Maximum DC Resistance 10mΩ | ||
Height 1.8mm | ||
Series WE-MPSB | ||
Material Ferrite | ||
Application Broadband Suppression, EMI Suppression of DC/DC Converters & DC Power Supply, Filter with High Inrush Current Peaks, Motor Interference Suppression | ||
- COO (Country of Origin):
- TW

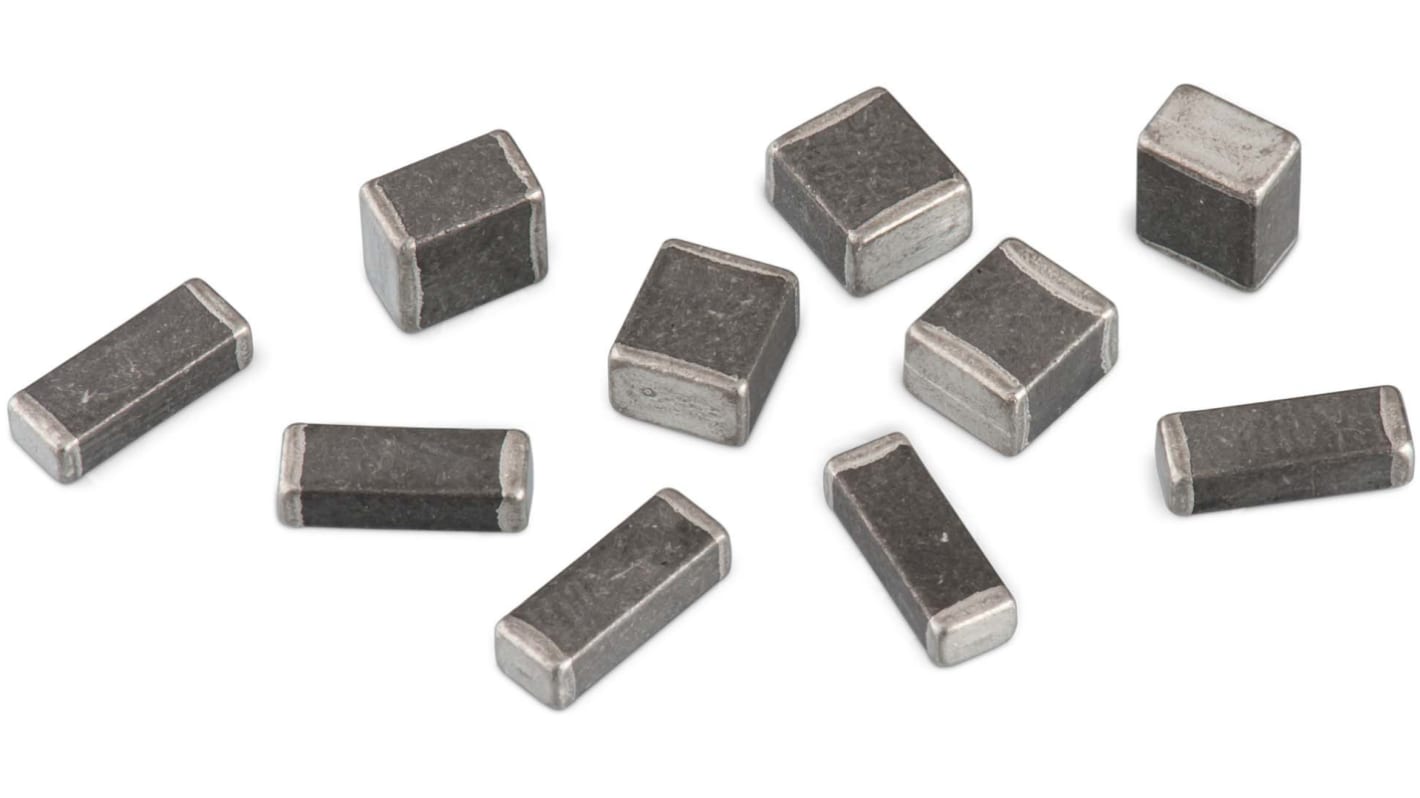

EMI Multilayer Power Suppression Bead - WE-MPSB Series
Wurth WE-MPSB series compact SMD suppression bead with high current up to 10.5A
Recommended for reflow soldering
Operating Temperature range: -55°C to +125°C
Very low RDC
Applications in Filter with high inrush current peaks; motor interference suppression; EMI suppression of DC/DC converters and DC power supply; Broadband suppression
Operating Temperature range: -55°C to +125°C
Very low RDC
Applications in Filter with high inrush current peaks; motor interference suppression; EMI suppression of DC/DC converters and DC power supply; Broadband suppression
Specified peak current capability
Ultra low RDC
High Rated Current up to 10.5 A
Operating Temperature: -55°C to +125°C
Ultra low RDC
High Rated Current up to 10.5 A
Operating Temperature: -55°C to +125°C
