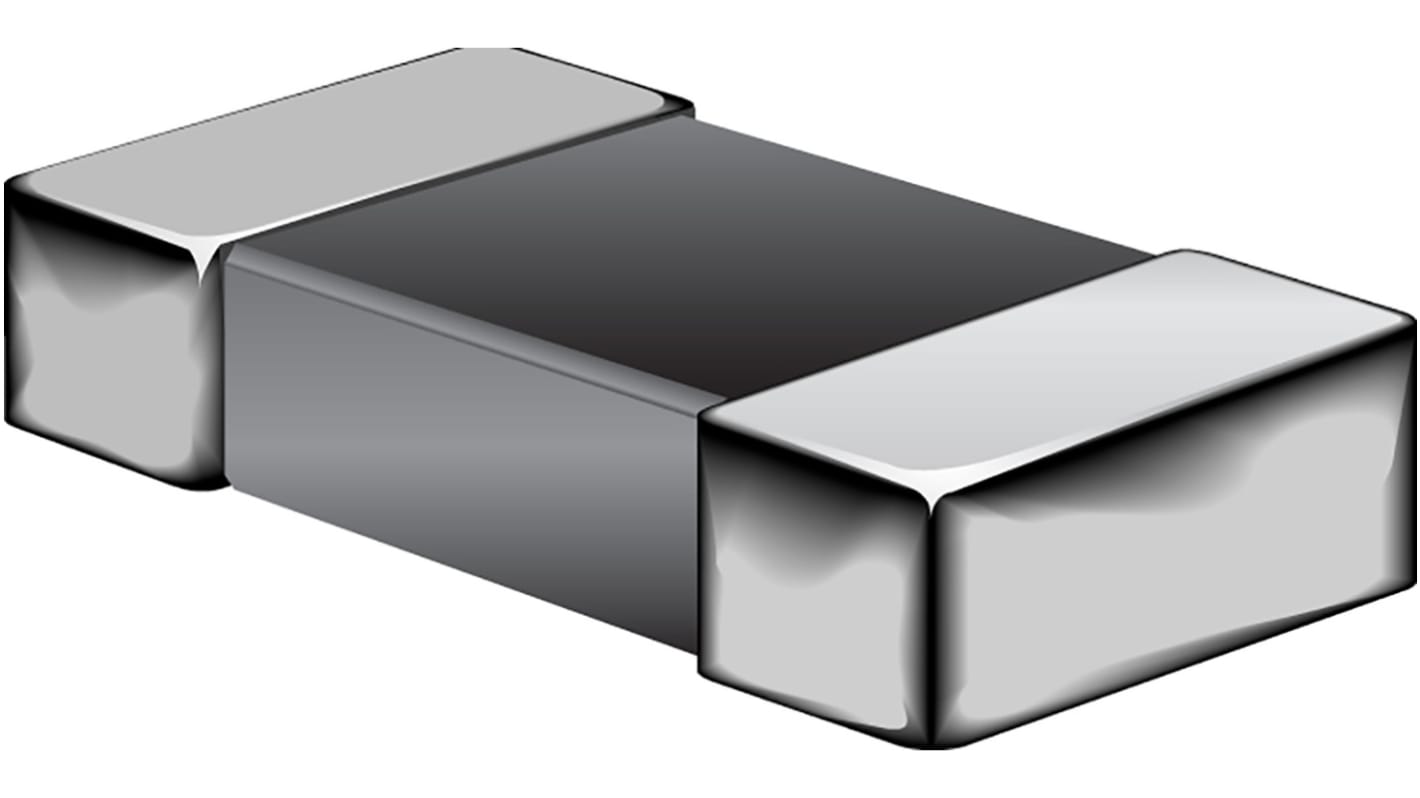

Bourns Ferrite Bead 1.1 mm (Surface) (1206) (EMI Filter & Protection), 100 Ω impedance at 25 MHz, 300 Ω impedance at 100
- RS Stock No.:
- 262-9151
- Mfr. Part No.:
- MG3261-301Y
- Brand:
- Bourns
Subtotal (1 reel of 3000 units)*
£63.00
(exc. VAT)
£75.00
(inc. VAT)
FREE delivery for orders over £60.00
Temporarily out of stock
- Shipping from 17 September 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Reel* |
|---|---|---|
| 3000 + | £0.021 | £63.00 |
*price indicative
- RS Stock No.:
- 262-9151
- Mfr. Part No.:
- MG3261-301Y
- Brand:
- Bourns
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Bourns | |
| Package Type | 1206 | |
| Product Type | Ferrite Bead | |
| Impedance at 25 MHz | 100Ω | |
| Impedance at 50 MHz | 190Ω | |
| Packaging | Reel | |
| Impedance at 100 MHz | 300Ω | |
| Impedance at 300 MHz | 220Ω | |
| Current Rating | 700mA | |
| Mount Type | Surface | |
| Sub Type | EMI Filter & Protection | |
| Pin Count | 2 | |
| Minimum Operating Temperature | -55°C | |
| Maximum Operating Temperature | 125°C | |
| Length | 3.2mm | |
| Maximum DC Resistance | 0.15Ω | |
| Height | 1.1mm | |
| Depth | 1.8mm | |
| Standards/Approvals | RoHS | |
| Series | MG | |
| Automotive Standard | No | |
| Application | Signal Line, Power Supplies, Ic Power Line | |
| Material | Ferrite | |
| Select all | ||
|---|---|---|
Brand Bourns | ||
Package Type 1206 | ||
Product Type Ferrite Bead | ||
Impedance at 25 MHz 100Ω | ||
Impedance at 50 MHz 190Ω | ||
Packaging Reel | ||
Impedance at 100 MHz 300Ω | ||
Impedance at 300 MHz 220Ω | ||
Current Rating 700mA | ||
Mount Type Surface | ||
Sub Type EMI Filter & Protection | ||
Pin Count 2 | ||
Minimum Operating Temperature -55°C | ||
Maximum Operating Temperature 125°C | ||
Length 3.2mm | ||
Maximum DC Resistance 0.15Ω | ||
Height 1.1mm | ||
Depth 1.8mm | ||
Standards/Approvals RoHS | ||
Series MG | ||
Automotive Standard No | ||
Application Signal Line, Power Supplies, Ic Power Line | ||
Material Ferrite | ||
The Bourns high impedance chip ferrite beads has high resistance to heat and humidity. It is used in power supply lines, IC power lines and signal lines.
Resistance to mechanical shock and pressure
Accurate dimensions for automatic surface mounting
RoHS compliant
