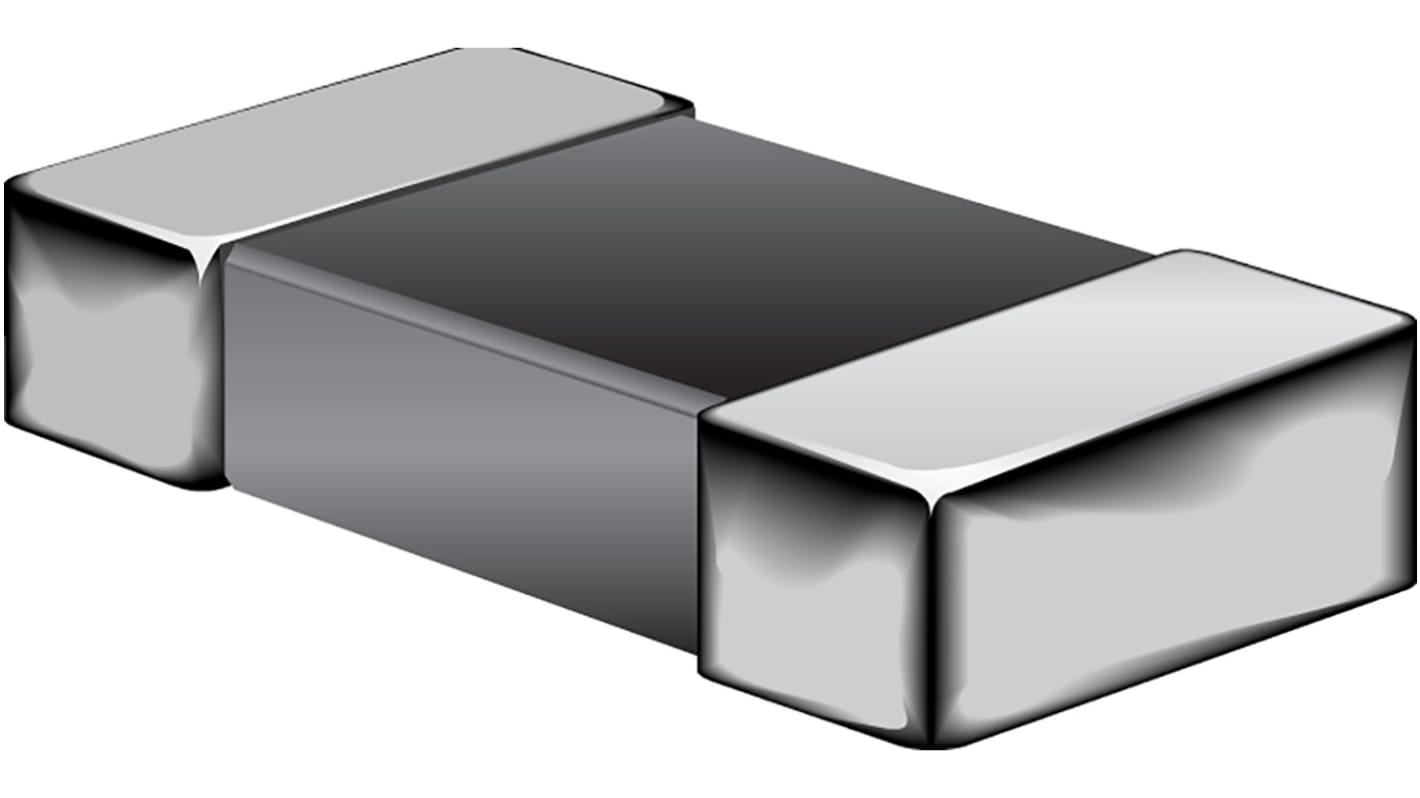

Bourns Ferrite Bead 1.1 mm (Surface) (1206) (EMI Filter & Protection), 75 Ω impedance at 25 MHz, 150 Ω impedance at 100
- RS Stock No.:
- 262-9150
- Mfr. Part No.:
- MG3261-151Y
- Brand:
- Bourns
Bulk discount available
View bulk pricing optionsSubtotal (1 tape of 10 units)*
£1.15
(exc. VAT)
£1.38
(inc. VAT)
FREE delivery for orders over £60.00
Temporarily out of stock
- Shipping from 06 October 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Tape* |
|---|---|---|
| 10 - 90 | £0.115 | £1.15 |
| 100 - 190 | £0.08 | £0.80 |
| 200 - 490 | £0.072 | £0.72 |
| 500 - 990 | £0.065 | £0.65 |
| 1000 + | £0.058 | £0.58 |
*price indicative
- RS Stock No.:
- 262-9150
- Mfr. Part No.:
- MG3261-151Y
- Brand:
- Bourns
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Bourns | |
| Product Type | Ferrite Bead | |
| Package Type | 1206 | |
| Impedance at 25 MHz | 75Ω | |
| Impedance at 50 MHz | 120Ω | |
| Impedance at 100 MHz | 150Ω | |
| Packaging | Reel | |
| Impedance at 300 MHz | 210Ω | |
| Current Rating | 900mA | |
| Sub Type | EMI Filter & Protection | |
| Mount Type | Surface | |
| Pin Count | 2 | |
| Minimum Operating Temperature | -55°C | |
| Maximum Operating Temperature | 125°C | |
| Height | 1.1mm | |
| Length | 3.2mm | |
| Standards/Approvals | RoHS | |
| Maximum DC Resistance | 0.15Ω | |
| Depth | 1.8mm | |
| Application | Signal Line, Power Supplies, Ic Power Line | |
| Automotive Standard | No | |
| Series | MG | |
| Material | Ferrite | |
| Select all | ||
|---|---|---|
Brand Bourns | ||
Product Type Ferrite Bead | ||
Package Type 1206 | ||
Impedance at 25 MHz 75Ω | ||
Impedance at 50 MHz 120Ω | ||
Impedance at 100 MHz 150Ω | ||
Packaging Reel | ||
Impedance at 300 MHz 210Ω | ||
Current Rating 900mA | ||
Sub Type EMI Filter & Protection | ||
Mount Type Surface | ||
Pin Count 2 | ||
Minimum Operating Temperature -55°C | ||
Maximum Operating Temperature 125°C | ||
Height 1.1mm | ||
Length 3.2mm | ||
Standards/Approvals RoHS | ||
Maximum DC Resistance 0.15Ω | ||
Depth 1.8mm | ||
Application Signal Line, Power Supplies, Ic Power Line | ||
Automotive Standard No | ||
Series MG | ||
Material Ferrite | ||
- COO (Country of Origin):
- CN
The Bourns high impedance chip ferrite beads has high resistance to heat and humidity. It is used in power supply lines, IC power lines and signal lines.
Resistance to mechanical shock and pressure
Accurate dimensions for automatic surface mounting
RoHS compliant
