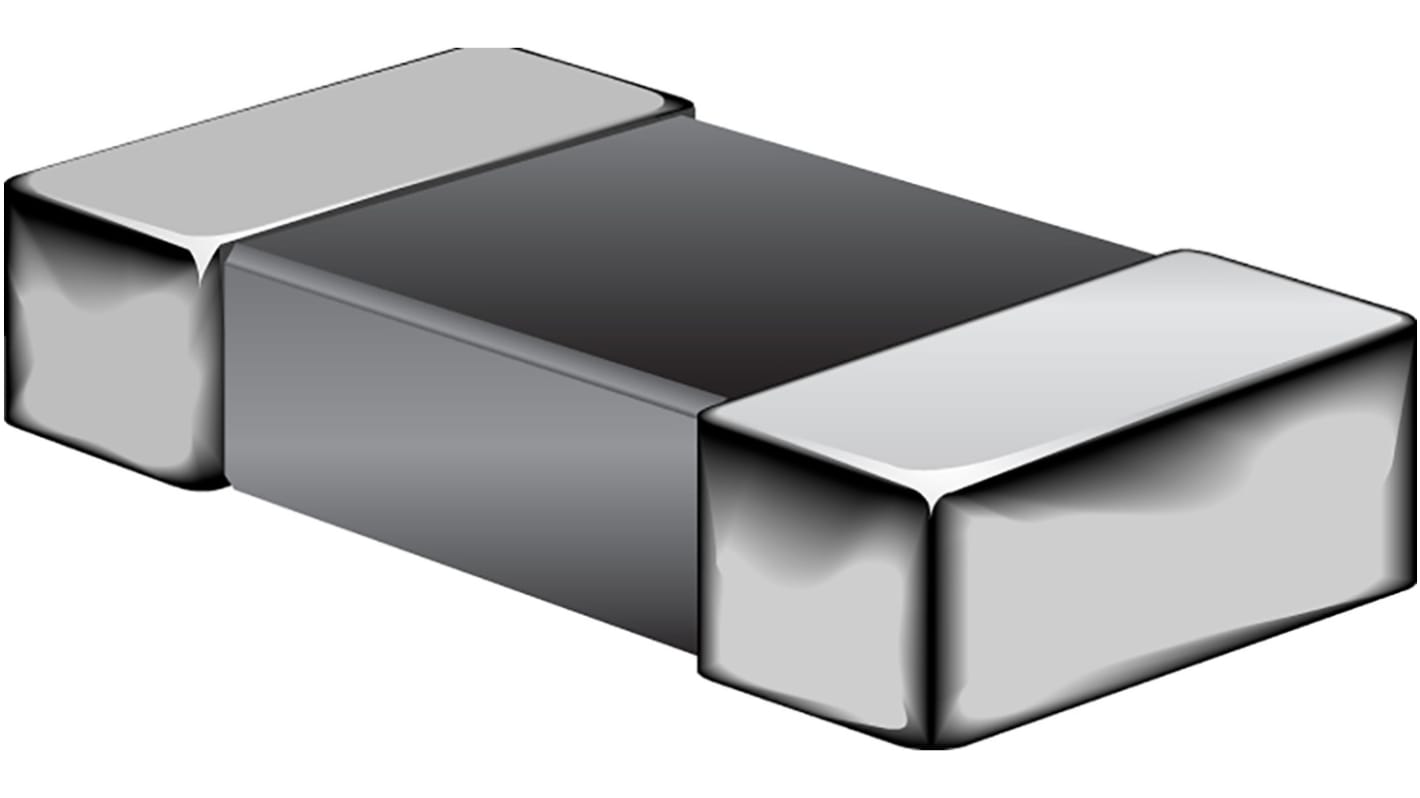

Bourns Ferrite Bead 0.5 mm (Surface) (0402) (EMI Filter & Protection), 55 Ω impedance at 25 MHz, 120 Ω impedance at 100
- RS Stock No.:
- 259-5763
- Mfr. Part No.:
- MH1005-121Y
- Brand:
- Bourns
Bulk discount available
Subtotal (1 tape of 100 units)*
£1.50
(exc. VAT)
£1.80
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- Plus 9,900 unit(s) shipping from 20 April 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Tape* |
|---|---|---|
| 100 - 900 | £0.015 | £1.50 |
| 1000 + | £0.01 | £1.00 |
*price indicative
- RS Stock No.:
- 259-5763
- Mfr. Part No.:
- MH1005-121Y
- Brand:
- Bourns
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Bourns | |
| Package Type | 0402 | |
| Product Type | Ferrite Bead | |
| Impedance at 25 MHz | 55Ω | |
| Impedance at 50 MHz | 80Ω | |
| Impedance at 100 MHz | 120Ω | |
| Packaging | Reel | |
| Impedance at 300 MHz | 158Ω | |
| Mount Type | Surface | |
| Sub Type | EMI Filter & Protection | |
| Minimum Operating Temperature | -25°C | |
| Pin Count | 2 | |
| Maximum Operating Temperature | 125°C | |
| Depth | 0.55mm | |
| Height | 0.5mm | |
| Standards/Approvals | RoHS | |
| Length | 1mm | |
| Maximum DC Resistance | 50mΩ | |
| Material | Ferrite | |
| Application | Signal Line, Power Supplies, Ic Power Line | |
| Automotive Standard | No | |
| Series | MH | |
| Select all | ||
|---|---|---|
Brand Bourns | ||
Package Type 0402 | ||
Product Type Ferrite Bead | ||
Impedance at 25 MHz 55Ω | ||
Impedance at 50 MHz 80Ω | ||
Impedance at 100 MHz 120Ω | ||
Packaging Reel | ||
Impedance at 300 MHz 158Ω | ||
Mount Type Surface | ||
Sub Type EMI Filter & Protection | ||
Minimum Operating Temperature -25°C | ||
Pin Count 2 | ||
Maximum Operating Temperature 125°C | ||
Depth 0.55mm | ||
Height 0.5mm | ||
Standards/Approvals RoHS | ||
Length 1mm | ||
Maximum DC Resistance 50mΩ | ||
Material Ferrite | ||
Application Signal Line, Power Supplies, Ic Power Line | ||
Automotive Standard No | ||
Series MH | ||
- COO (Country of Origin):
- CN
The Bourns Electronics MH1005 series high current chip ferrite bead has 1 x 0.5 x 0.5 mm dimensions and 3.0 ampere maximum IDC.
Compact size
High current
Wide impedance range
RoHS compliant and halogen free
