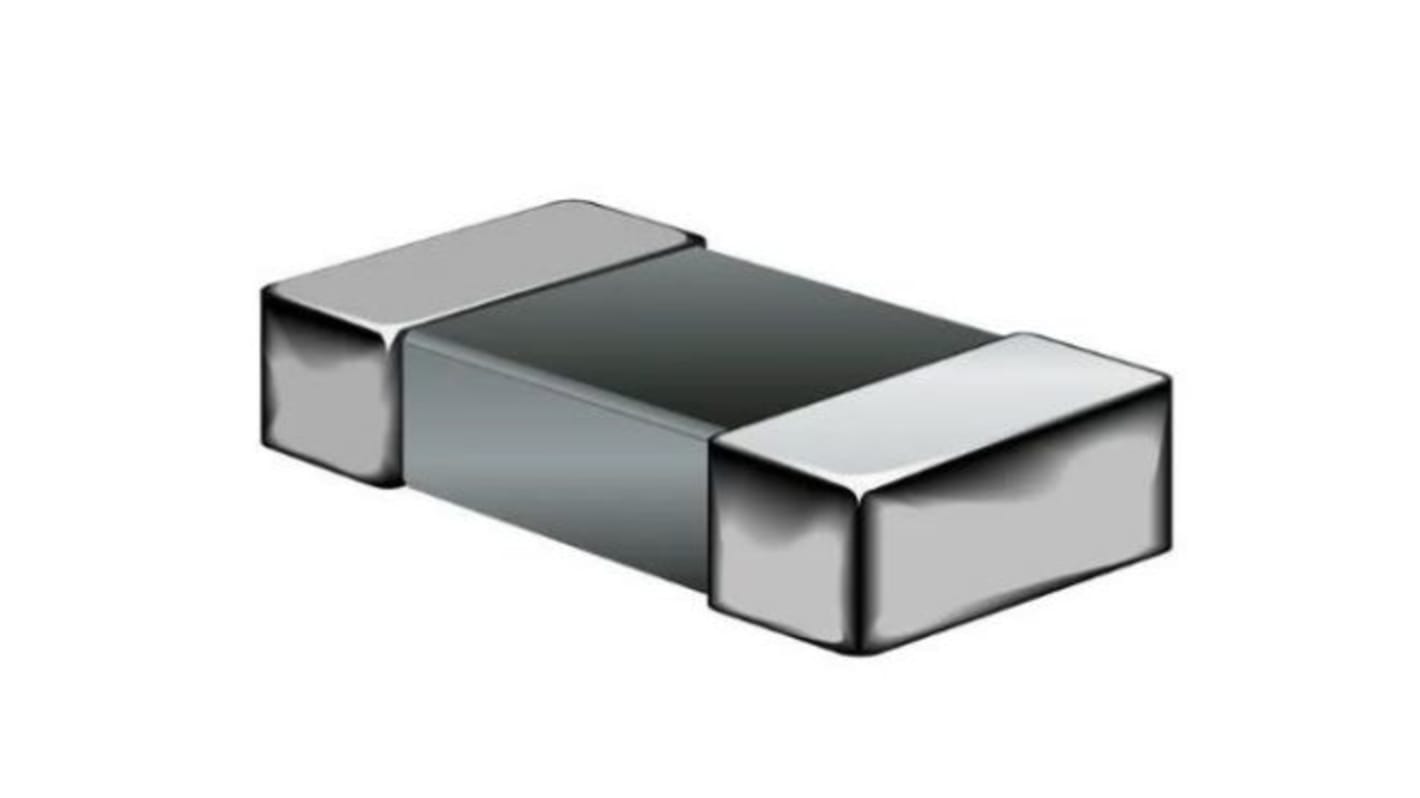

Bourns Ferrite Bead 0.7 mm (Surface) (0805) (EMI Filter & Protection), 30 Ω impedance at 25 MHz, 60 Ω impedance at 100
- RS Stock No.:
- 246-3244
- Mfr. Part No.:
- MH2029-600Y
- Brand:
- Bourns
Subtotal (1 reel of 4000 units)*
£80.00
(exc. VAT)
£80.00
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- 8,000 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Reel* |
|---|---|---|
| 4000 + | £0.02 | £80.00 |
*price indicative
- RS Stock No.:
- 246-3244
- Mfr. Part No.:
- MH2029-600Y
- Brand:
- Bourns
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Bourns | |
| Product Type | Ferrite Bead | |
| Package Type | 0805 | |
| Impedance at 25 MHz | 30Ω | |
| Impedance at 50 MHz | 42Ω | |
| Packaging | Reel | |
| Impedance at 100 MHz | 60Ω | |
| Impedance at 300 MHz | 80Ω | |
| Sub Type | EMI Filter & Protection | |
| Mount Type | Surface | |
| Pin Count | 2 | |
| Minimum Operating Temperature | -25°C | |
| Maximum Operating Temperature | 125°C | |
| Depth | 1mm | |
| Maximum DC Resistance | 20mΩ | |
| Height | 0.7mm | |
| Length | 3.2mm | |
| Standards/Approvals | RoHS | |
| Automotive Standard | No | |
| Series | MH | |
| Application | Ic Power Line, Power Supplies, Signal Line | |
| Material | Ferrite | |
| Select all | ||
|---|---|---|
Brand Bourns | ||
Product Type Ferrite Bead | ||
Package Type 0805 | ||
Impedance at 25 MHz 30Ω | ||
Impedance at 50 MHz 42Ω | ||
Packaging Reel | ||
Impedance at 100 MHz 60Ω | ||
Impedance at 300 MHz 80Ω | ||
Sub Type EMI Filter & Protection | ||
Mount Type Surface | ||
Pin Count 2 | ||
Minimum Operating Temperature -25°C | ||
Maximum Operating Temperature 125°C | ||
Depth 1mm | ||
Maximum DC Resistance 20mΩ | ||
Height 0.7mm | ||
Length 3.2mm | ||
Standards/Approvals RoHS | ||
Automotive Standard No | ||
Series MH | ||
Application Ic Power Line, Power Supplies, Signal Line | ||
Material Ferrite | ||
- COO (Country of Origin):
- CN
The Bourns high current chip ferrite beads mainly used to take accurate dimensions for automatic surface mounting. It has high resistance to mechanical shock and pressure. It is used in power supply lines, IC power lines and signal lines.
High resistance to heat and humidity
Wide impedance range
RoHS compliant
Halogen free
