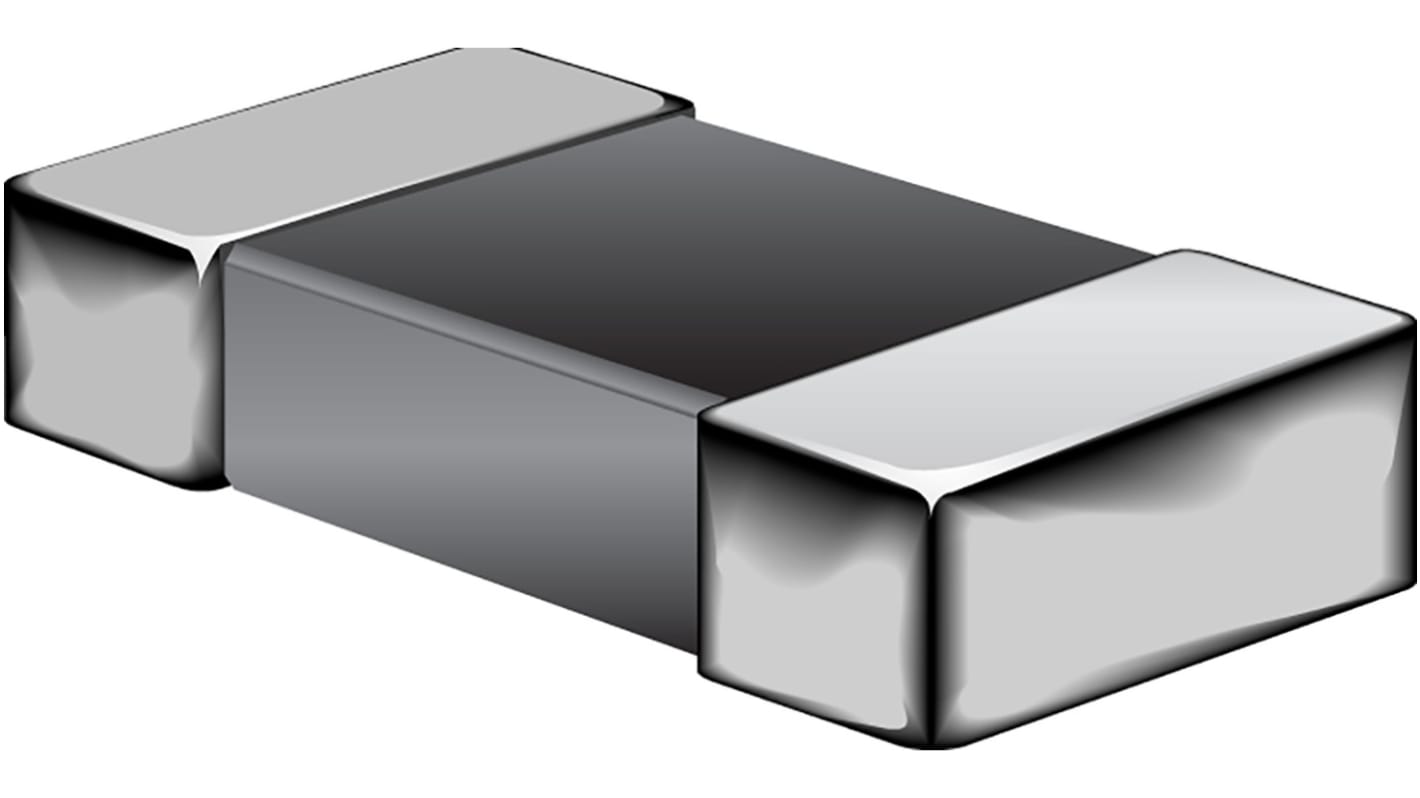

Bourns Ferrite Bead 1.1 mm (Surface) (1206) (EMI Filter & Protection), 30 Ω impedance at 25 MHz, 60 Ω impedance at 100
- RS Stock No.:
- 262-9187
- Mfr. Part No.:
- MU3261-600Y
- Brand:
- Bourns
Subtotal (1 reel of 3000 units)*
£69.00
(exc. VAT)
£84.00
(inc. VAT)
FREE delivery for orders over £60.00
Temporarily out of stock
- Shipping from 14 September 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Reel* |
|---|---|---|
| 3000 + | £0.023 | £69.00 |
*price indicative
- RS Stock No.:
- 262-9187
- Mfr. Part No.:
- MU3261-600Y
- Brand:
- Bourns
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Bourns | |
| Product Type | Ferrite Bead | |
| Package Type | 1206 | |
| Impedance at 25 MHz | 30Ω | |
| Impedance at 50 MHz | 49Ω | |
| Impedance at 100 MHz | 60Ω | |
| Packaging | Reel | |
| Impedance at 300 MHz | 85Ω | |
| Current Rating | 400mA | |
| Mount Type | Surface | |
| Sub Type | EMI Filter & Protection | |
| Minimum Operating Temperature | -55°C | |
| Pin Count | 2 | |
| Maximum Operating Temperature | 125°C | |
| Height | 1.1mm | |
| Depth | 1.8mm | |
| Maximum DC Resistance | 0.2Ω | |
| Length | 3.2mm | |
| Standards/Approvals | RoHS | |
| Series | MU | |
| Automotive Standard | No | |
| Application | Signal Line, Power Supplies, Ic Power Line | |
| Material | Ferrite | |
| Select all | ||
|---|---|---|
Brand Bourns | ||
Product Type Ferrite Bead | ||
Package Type 1206 | ||
Impedance at 25 MHz 30Ω | ||
Impedance at 50 MHz 49Ω | ||
Impedance at 100 MHz 60Ω | ||
Packaging Reel | ||
Impedance at 300 MHz 85Ω | ||
Current Rating 400mA | ||
Mount Type Surface | ||
Sub Type EMI Filter & Protection | ||
Minimum Operating Temperature -55°C | ||
Pin Count 2 | ||
Maximum Operating Temperature 125°C | ||
Height 1.1mm | ||
Depth 1.8mm | ||
Maximum DC Resistance 0.2Ω | ||
Length 3.2mm | ||
Standards/Approvals RoHS | ||
Series MU | ||
Automotive Standard No | ||
Application Signal Line, Power Supplies, Ic Power Line | ||
Material Ferrite | ||
- COO (Country of Origin):
- CN
The Bourns high impedance chip ferrite beads has high resistance to heat and humidity. It is used in power supply lines, IC power lines and signal lines.
Resistance to mechanical shock and pressure
Accurate dimensions for automatic surface mounting
RoHS compliant
