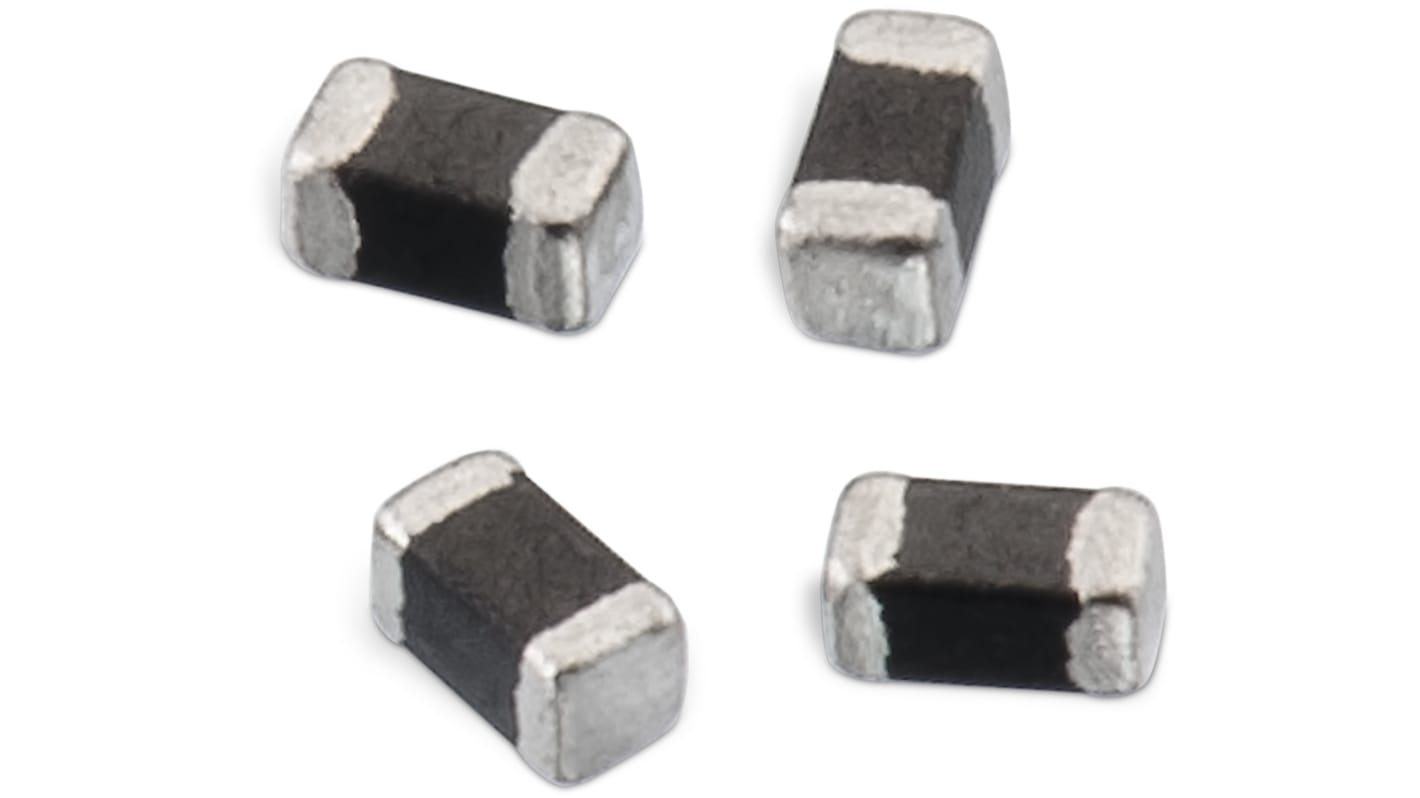

Wurth Elektronik Ferrite Bead 0.5 mm (Surface) (Wide Band) (Ferrite Bead), 110 Ω impedance at 100 MHz, 188 Ω impedance
- RS Stock No.:
- 245-8292
- Distrelec Article No.:
- 304-41-009
- Mfr. Part No.:
- 74269242111
- Brand:
- Wurth Elektronik
Bulk discount available
Subtotal (1 tape of 10 units)*
£1.00
(exc. VAT)
£1.20
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- 18,800 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Tape* |
|---|---|---|
| 10 - 40 | £0.10 | £1.00 |
| 50 - 90 | £0.099 | £0.99 |
| 100 - 490 | £0.096 | £0.96 |
| 500 - 990 | £0.095 | £0.95 |
| 1000 + | £0.091 | £0.91 |
*price indicative
- RS Stock No.:
- 245-8292
- Distrelec Article No.:
- 304-41-009
- Mfr. Part No.:
- 74269242111
- Brand:
- Wurth Elektronik
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Wurth Elektronik | |
| Package Type | Wide Band | |
| Product Type | Ferrite Bead | |
| Packaging | Tape & Reel | |
| Impedance at 100 MHz | 110Ω | |
| Impedance at 1 GHz | 188Ω | |
| Current Rating | 1.2A | |
| Mount Type | Surface | |
| Sub Type | Ferrite Bead | |
| Minimum Operating Temperature | -55°C | |
| Pin Count | 2 | |
| Maximum Operating Temperature | 125°C | |
| Standards/Approvals | RoHS, IEC 61249-2-21, REACH | |
| Height | 0.5mm | |
| Depth | 0.5mm | |
| Length | 1mm | |
| Maximum DC Resistance | 0.09Ω | |
| Automotive Standard | No | |
| Material | Ferrite | |
| Series | WE-TM SB | |
| Application | EMI Suppression | |
| Select all | ||
|---|---|---|
Brand Wurth Elektronik | ||
Package Type Wide Band | ||
Product Type Ferrite Bead | ||
Packaging Tape & Reel | ||
Impedance at 100 MHz 110Ω | ||
Impedance at 1 GHz 188Ω | ||
Current Rating 1.2A | ||
Mount Type Surface | ||
Sub Type Ferrite Bead | ||
Minimum Operating Temperature -55°C | ||
Pin Count 2 | ||
Maximum Operating Temperature 125°C | ||
Standards/Approvals RoHS, IEC 61249-2-21, REACH | ||
Height 0.5mm | ||
Depth 0.5mm | ||
Length 1mm | ||
Maximum DC Resistance 0.09Ω | ||
Automotive Standard No | ||
Material Ferrite | ||
Series WE-TM SB | ||
Application EMI Suppression | ||
- COO (Country of Origin):
- TW
The Wurth Elektroniks wide band type, tiny multi-layer suppression ferrite bead is perfect for general signal and low power lines, audio/video/clock lines and small handhelds.
Perfect for miniaturization of EMI solutions
Operating temperature of -55 °C to +125 °C
It is a wide band type ferrite bead
