TE Connectivity Ferrite Bead 0.3 mm (Surface) (0201), 150 Ω impedance at 100 MHz
- RS Stock No.:
- 245-5674P
- Mfr. Part No.:
- BMC1HY0150AN
- Brand:
- TE Connectivity
Bulk discount available
View bulk pricing optionsSubtotal 1000 units (supplied on a reel)*
£60.00
(exc. VAT)
£70.00
(inc. VAT)
FREE delivery for orders over £60.00
Last RS stock
- Final 11,100 unit(s), ready to ship
Units | Per unit |
|---|---|
| 1000 - 4900 | £0.06 |
| 5000 - 9900 | £0.053 |
| 10000 - 49900 | £0.047 |
| 50000 + | £0.04 |
*price indicative
- RS Stock No.:
- 245-5674P
- Mfr. Part No.:
- BMC1HY0150AN
- Brand:
- TE Connectivity
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | TE Connectivity | |
| Product Type | Ferrite Bead | |
| Package Type | 0201 | |
| Packaging | Tape & Reel | |
| Impedance at 100 MHz | 150Ω | |
| Current Rating | 200mA | |
| Mount Type | Surface | |
| Minimum Operating Temperature | -55°C | |
| Maximum Operating Temperature | 125°C | |
| Height | 0.3mm | |
| Length | 0.6mm | |
| Depth | 0.3mm | |
| Standards/Approvals | RoHS | |
| Maximum DC Resistance | 0.5Ω | |
| Automotive Standard | No | |
| Material | Ferrite Bead | |
| Series | BMC | |
| Select all | ||
|---|---|---|
Brand TE Connectivity | ||
Product Type Ferrite Bead | ||
Package Type 0201 | ||
Packaging Tape & Reel | ||
Impedance at 100 MHz 150Ω | ||
Current Rating 200mA | ||
Mount Type Surface | ||
Minimum Operating Temperature -55°C | ||
Maximum Operating Temperature 125°C | ||
Height 0.3mm | ||
Length 0.6mm | ||
Depth 0.3mm | ||
Standards/Approvals RoHS | ||
Maximum DC Resistance 0.5Ω | ||
Automotive Standard No | ||
Material Ferrite Bead | ||
Series BMC | ||
- COO (Country of Origin):
- TW

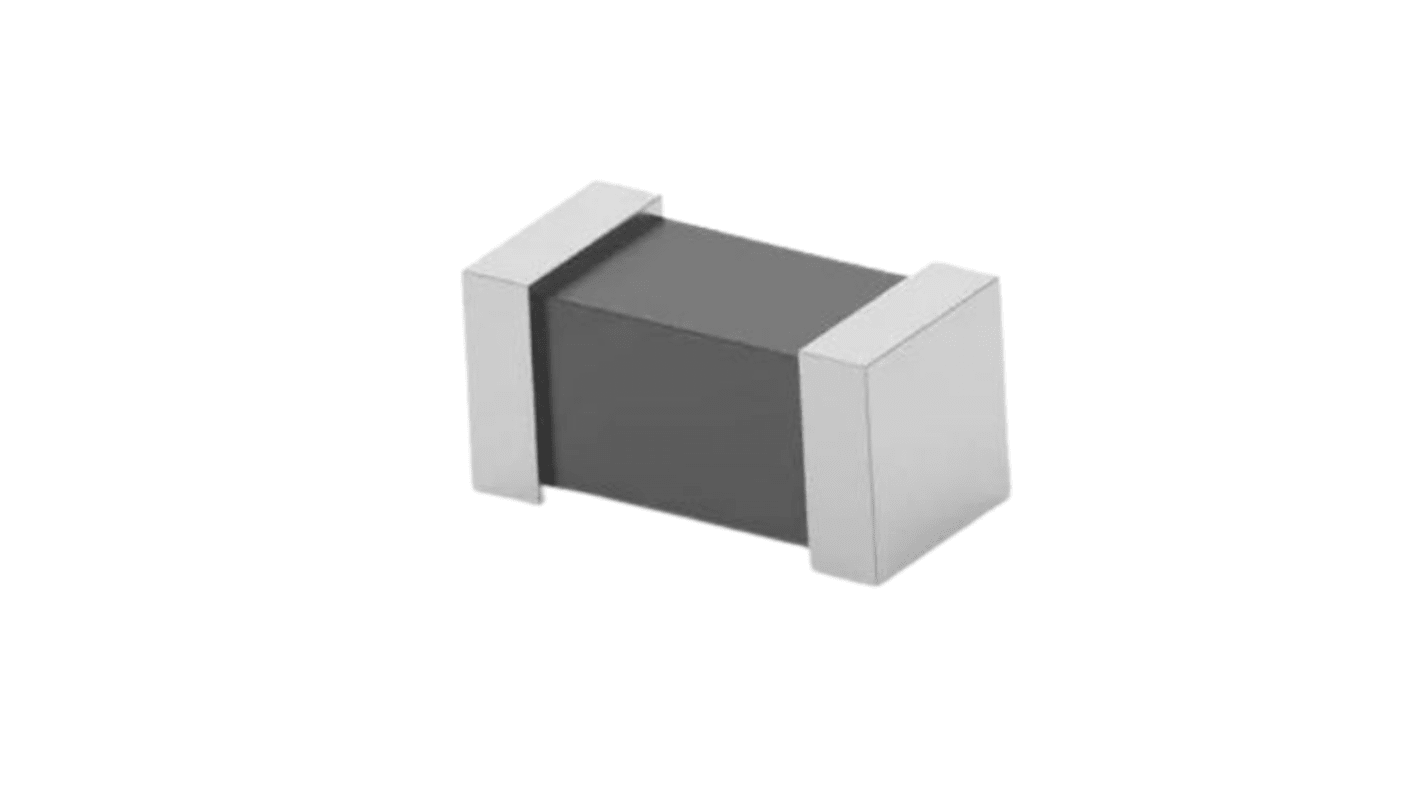

The TE Connectivity BMC series ferrite bead having 150Ω of impedance characteristics. The chip bead have a monolithic inorganic material construction that minimizes the effect of electromagnetic interference. It has tolerance of ±25%.
Effective EMI protection
Low DC resistance
High soldering heat resistance
