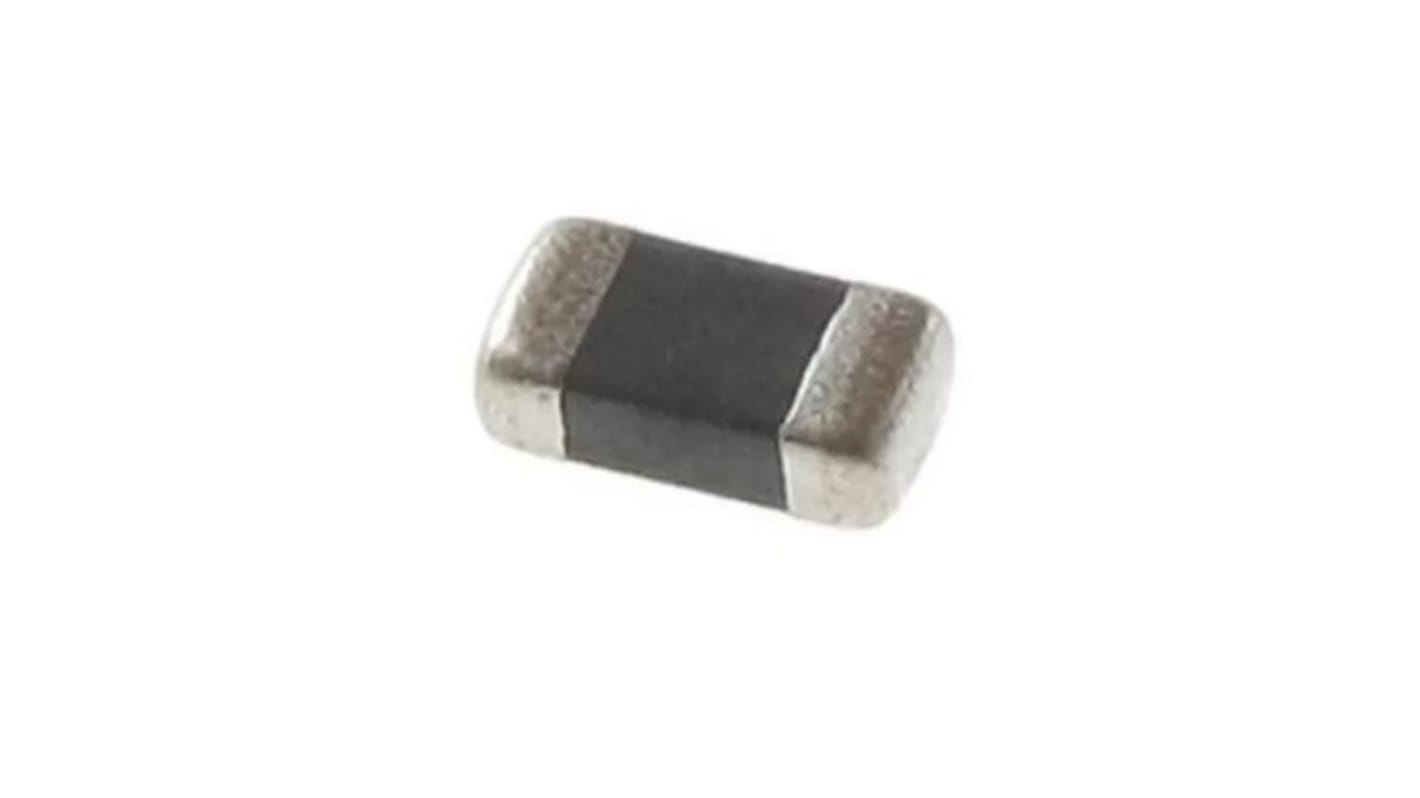

Murata Ferrite Bead (Chip Ferrite Bead), 0.6 x 0.3 x 0.3mm (0201), 55.6Ω impedance at 25 MHz, 120Ω impedance at 100
- RS Stock No.:
- 223-4853
- Mfr. Part No.:
- BLM03PX121SZ1D
- Brand:
- Murata
Subtotal (1 reel of 15000 units)*
£90.00
(exc. VAT)
£105.00
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- 999,990,000 unit(s) shipping from 04 December 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Reel* |
|---|---|---|
| 15000 + | £0.006 | £90.00 |
*price indicative
- RS Stock No.:
- 223-4853
- Mfr. Part No.:
- BLM03PX121SZ1D
- Brand:
- Murata
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Murata | |
| Package Type | 0201 | |
| Impedance at 25 MHz | 55.6Ω | |
| Impedance at 50 MHz | 87.5Ω | |
| Impedance at 100 MHz | 120Ω | |
| Impedance at 300 MHz | 178Ω | |
| Impedance at 1 GHz | 187Ω | |
| Type | Chip Ferrite Bead | |
| Dimensions | 0.6 x 0.3 x 0.3mm | |
Select all | ||
|---|---|---|
Brand Murata | ||
Package Type 0201 | ||
Impedance at 25 MHz 55.6Ω | ||
Impedance at 50 MHz 87.5Ω | ||
Impedance at 100 MHz 120Ω | ||
Impedance at 300 MHz 178Ω | ||
Impedance at 1 GHz 187Ω | ||
Type Chip Ferrite Bead | ||
Dimensions 0.6 x 0.3 x 0.3mm | ||
- COO (Country of Origin):
- JP
The Murata BLM03PX series chip ferrite bead is designed to function nearly as a resistor at noise frequencies, which greatly reduces the possibility of resonance and leaves signal wave forms undistorted. It is effective in circuits without stable ground lines. It can be used in high current circuits due to its low DC resistance. It has impedance of 120 ohm.
Nickel barrier structure of the external electrodes provides excellent solder heat resistance
Operating temperature range from -55 °C to 125 °C
Does not need a connection to ground
Operating temperature range from -55 °C to 125 °C
Does not need a connection to ground
