Wurth Elektronik Ferrite Bead, 3.2 x 1.6 x 1.1mm (1206), 80Ω impedance at 100 MHz
- RS Stock No.:
- 144-9806
- Mfr. Part No.:
- 74279215
- Brand:
- Wurth Elektronik
Available to back order for despatch 16/07/2024
Added
Price Each (On a Reel of 3000)
£0.12
(exc. VAT)
£0.14
(inc. VAT)
| Units | Per unit | Per Reel* |
| 3000 - 3000 | £0.12 | £360.00 |
| 6000 + | £0.117 | £351.00 |
| *price indicative | ||
- RS Stock No.:
- 144-9806
- Mfr. Part No.:
- 74279215
- Brand:
- Wurth Elektronik
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- TW
Product Details

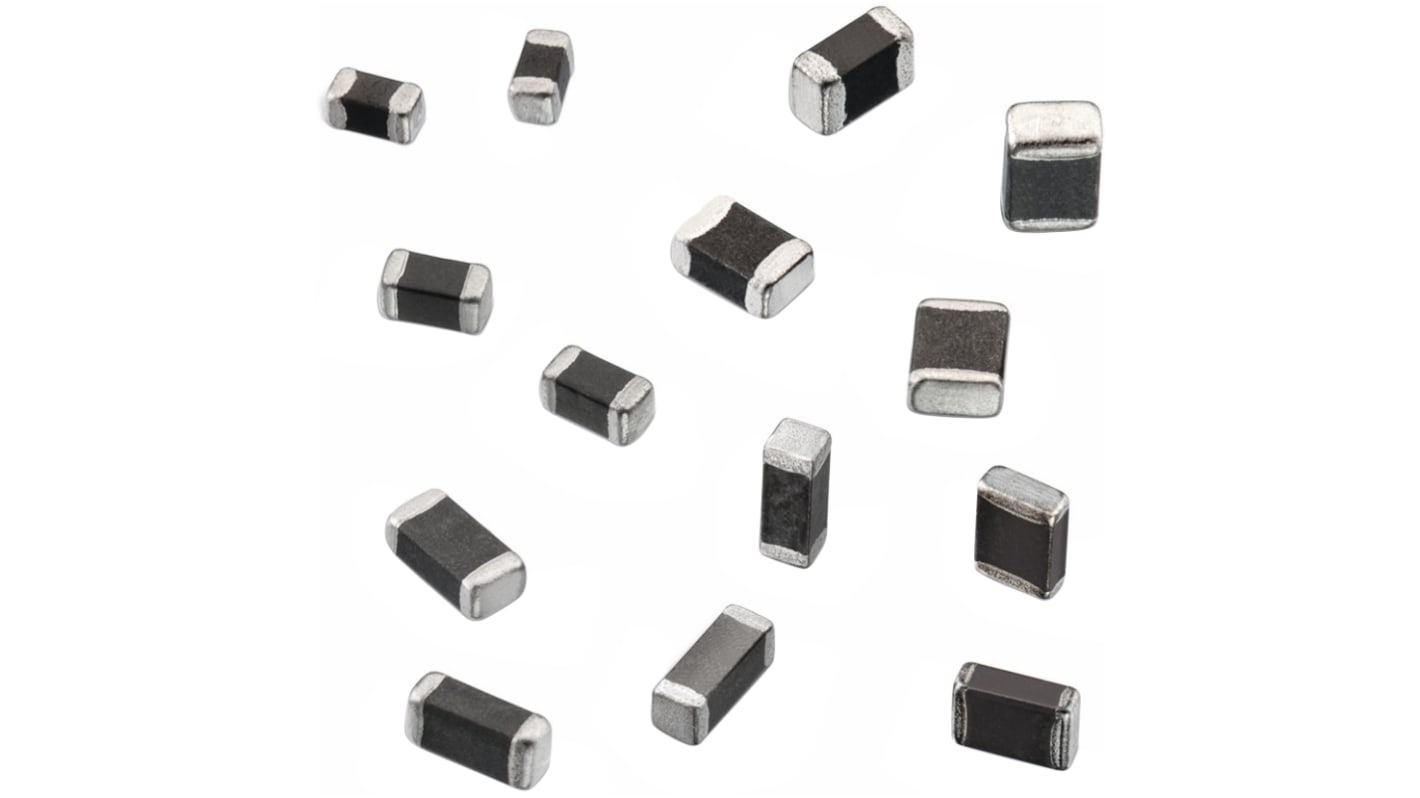

High-Speed Multilayer Ferrite SMD - WE-CBF Series
Excellent anti-EMI properties and low DC resistance
Placed very close next to the interference source even with smallest size 0402, maximum impedance 1000Ω
Reliable Ni-Sn electrodes
Ideal for data line filtering and voltage de-coupling
High rated current up to 6A
Recommended for reflow soldering
Placed very close next to the interference source even with smallest size 0402, maximum impedance 1000Ω
Reliable Ni-Sn electrodes
Ideal for data line filtering and voltage de-coupling
High rated current up to 6A
Recommended for reflow soldering
Applications:
High Speed: USB 2.0, IEEE 1394, LVDS
Wide Band: Control signals, RS232, RS422, DC/DC converter, etc.
High Current: Current supply, DC/DC converter etc.
Wide Band: Control signals, RS232, RS422, DC/DC converter, etc.
High Current: Current supply, DC/DC converter etc.
Reliable Ni-Sn electrodes
High rated current up to 6 A
Operating temperature: –55 ºC to +125 ºC
Perfect as data line filter and for uncoupling of distribution voltage
High rated current up to 6 A
Operating temperature: –55 ºC to +125 ºC
Perfect as data line filter and for uncoupling of distribution voltage
Specifications
Attribute | Value |
|---|---|
| Package Type | 1206 |
| Impedance at 100 MHz | 80Ω |
| Current Rating | 3A |
| Type | Ferrite Bead |
| Dimensions | 3.2 x 1.6 x 1.1mm |
| Length | 3.2mm |
| Depth | 1.6mm |
| Maximum DC Resistance | 0.03Ω |
| Height | 1.1mm |
| Application | Anti EMI, Control Signals, DC/DC Converter, Fast Bus Signals, HDD, High Current, High Frequency, High Speed, Line Filter, LVDS, Power Supply, RS232, RS422, USB 2.0 |
| Material | Ferrite |
| Series | WE-CBF |
