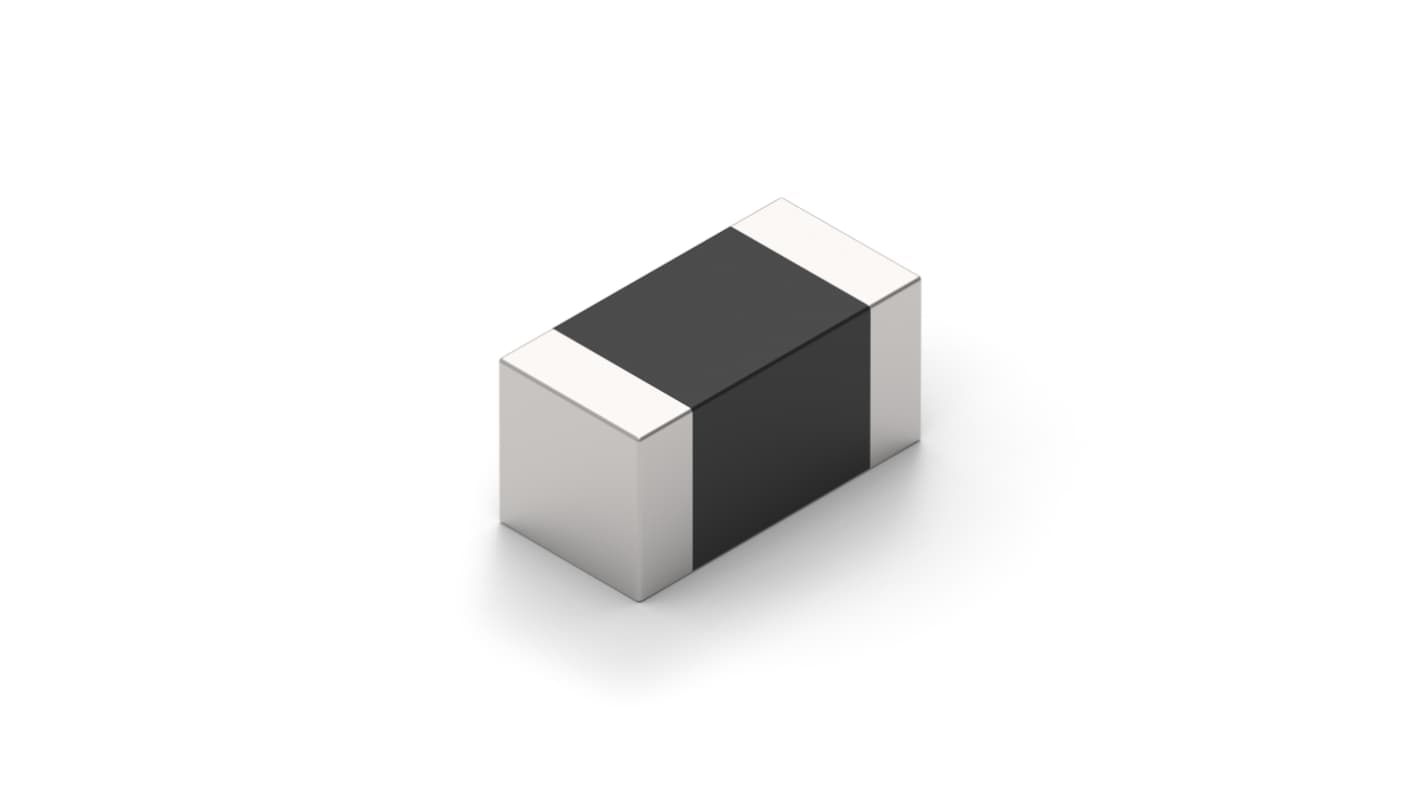

Wurth Elektronik Ferrite Bead 1.5 mm (1812), 70 Ω impedance at 100 MHz, 120 Ω impedance at 1 GHz
- RS Stock No.:
- 332-241
- Mfr. Part No.:
- 782965700
- Brand:
- Wurth Elektronik
Bulk discount available
Subtotal (1 reel of 50 units)*
£14.75
(exc. VAT)
£17.70
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 16 June 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Reel* |
|---|---|---|
| 50 - 450 | £0.295 | £14.75 |
| 500 - 950 | £0.28 | £14.00 |
| 1000 + | £0.259 | £12.95 |
*price indicative
- RS Stock No.:
- 332-241
- Mfr. Part No.:
- 782965700
- Brand:
- Wurth Elektronik
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Wurth Elektronik | |
| Product Type | Ferrite Bead | |
| Package Type | 1812 | |
| Impedance at 100 MHz | 70Ω | |
| Packaging | Tape & Reel | |
| Impedance at 1 GHz | 120Ω | |
| Current Rating | 6000 mA | |
| Minimum Operating Temperature | -55°C | |
| Maximum Operating Temperature | 125°C | |
| Standards/Approvals | RoHS Approval (2011/65/EU&2015/863), REACh Approval Conform or declared ((EC)1907/2006) | |
| Depth | 3.2mm | |
| Height | 1.5mm | |
| Length | 4.5mm | |
| Maximum DC Resistance | 0.008Ω | |
| Material | Polystyrene | |
| Automotive Standard | AEC-Q200 Grade 1 | |
| Select all | ||
|---|---|---|
Brand Wurth Elektronik | ||
Product Type Ferrite Bead | ||
Package Type 1812 | ||
Impedance at 100 MHz 70Ω | ||
Packaging Tape & Reel | ||
Impedance at 1 GHz 120Ω | ||
Current Rating 6000 mA | ||
Minimum Operating Temperature -55°C | ||
Maximum Operating Temperature 125°C | ||
Standards/Approvals RoHS Approval (2011/65/EU&2015/863), REACh Approval Conform or declared ((EC)1907/2006) | ||
Depth 3.2mm | ||
Height 1.5mm | ||
Length 4.5mm | ||
Maximum DC Resistance 0.008Ω | ||
Material Polystyrene | ||
Automotive Standard AEC-Q200 Grade 1 | ||
- COO (Country of Origin):
- TW
The Wurth Elektronik SMT EMI Suppression Ferrite Bead is a surface-mount component designed for high-speed and high-current applications. Its robust design and excellent electrical properties make it Ideal for suppressing EMI in a variety of circuits, ensuring reliable performance in demanding environments.
Optimized for efficient board layout and integration
Automotive grade AEC Q200 qualified
Halogen Free and REACH approved
Stable storage under controlled conditions with a moisture sensitivity level of 1
