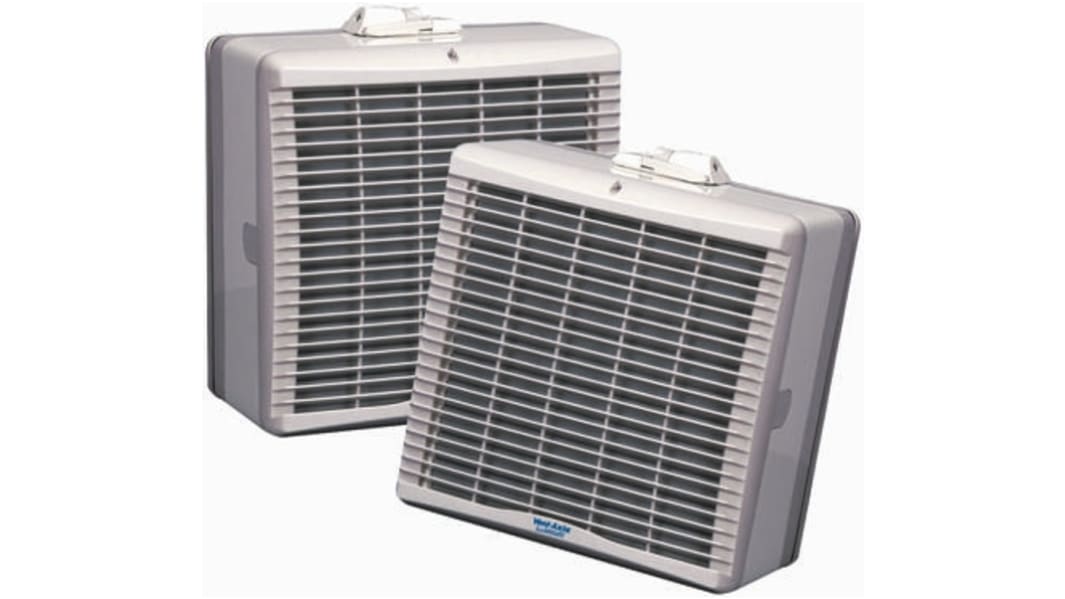

Vent-Axia TX12WW T-Series Square Window Mounted Extractor Fan, Intake, 1615m³/h, 48dB(A), Duct Size 315mm

Image representative of range

Subtotal (1 unit)*

£1,004.46

(exc. VAT)

£1,205.35

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • 2 unit(s) ready to ship
  • Plus 999,999,997 unit(s) shipping from 19 November 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
1 +£1,004.46

*price indicative

RS Stock No.:
272-766
Mfr. Part No.:
TX12WW
Brand:
Vent-Axia
Find similar products by selecting one or more attributes.
Select all

Brand

Vent-Axia

Function

Extraction, Intake

Fan Type

Extractor

Air Flow

1615m³/h

Noise Level

48dB(A)

Mounting

Window Mounted

Face Dimensions

378 x 381mm

Depth

177mm

Face Height

378mm

Face Width

381mm

Duct Size

315mm

Supply Voltage

230 V ac

Configuration

Square

Series

T-Series

RoHS Status: Exempt

COO (Country of Origin):
GB

Square Design Window Fans


High performance extract/intake fans for use in single and double glazing, and most types of materials up to 32mm thick. A unique speed control pack enables high, medium or low speeds to be preset to suit room size or specific requirements.

Can be mounted at any angle
Low density 5 blade impeller
Operating temperature range -40 to +50°C
Quiet running motor with overload protection
No special tools required to dismantle
Made in weather resistant polymeric materials
6in. fan BEAB approved for residential use
230 Vac mains powered.
