TE Connectivity, HPC Electric vehicle connector Plug, 200A, 66.8mm Cable
- RS Stock No.:
- 273-9928
- Mfr. Part No.:
- H101100030A-000
- Brand:
- TE Connectivity
Save 11% when you buy 240 units
Subtotal (1 tray of 30 units)*
£240.09
(exc. VAT)
£288.12
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 90 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Tray* |
|---|---|---|
| 30 - 30 | £8.003 | £240.09 |
| 60 - 90 | £7.701 | £231.03 |
| 120 - 210 | £7.355 | £220.65 |
| 240 + | £7.122 | £213.66 |
*price indicative
Better World
Our Better World range features products that make it easy for you to make a greener product choice you can trust. Click here to find out more.
- RS Stock No.:
- 273-9928
- Mfr. Part No.:
- H101100030A-000
- Brand:
- TE Connectivity
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | TE Connectivity | |
| Range | HPC | |
| Series | HPC | |
| Connector Type | Assembly | |
| Number of Rows | 1 | |
| Number of Contacts | 1 | |
| Current Rating | 200A | |
| Operating Voltage | 1500V | |
| Connector Gender | Male | |
| Contact Gender | Male | |
| Termination Method | Crimp | |
| Key Type | R | |
| Better World Product | Yes | |
| Better World Claim | Renewable energy solution | |
| Mounting Type | Panel Mount | |
| Cable Length | 66.8mm | |
| Colour | Orange | |
| Maximum Operating Temperature | +125°C | |
| Housing Material | Nylon 66 | |
| Standards Met | UL 94V-0 | |
| Minimum Operating Temperature | -40°C | |
| Latching Type | Quick Lock | |
Select all | ||
|---|---|---|
Brand TE Connectivity | ||
Range HPC | ||
Series HPC | ||
Connector Type Assembly | ||
Number of Rows 1 | ||
Number of Contacts 1 | ||
Current Rating 200A | ||
Operating Voltage 1500V | ||
Connector Gender Male | ||
Contact Gender Male | ||
Termination Method Crimp | ||
Key Type R | ||
Better World Product Yes | ||
Better World Claim Renewable energy solution | ||
Mounting Type Panel Mount | ||
Cable Length 66.8mm | ||
Colour Orange | ||
Maximum Operating Temperature +125°C | ||
Housing Material Nylon 66 | ||
Standards Met UL 94V-0 | ||
Minimum Operating Temperature -40°C | ||
Latching Type Quick Lock | ||

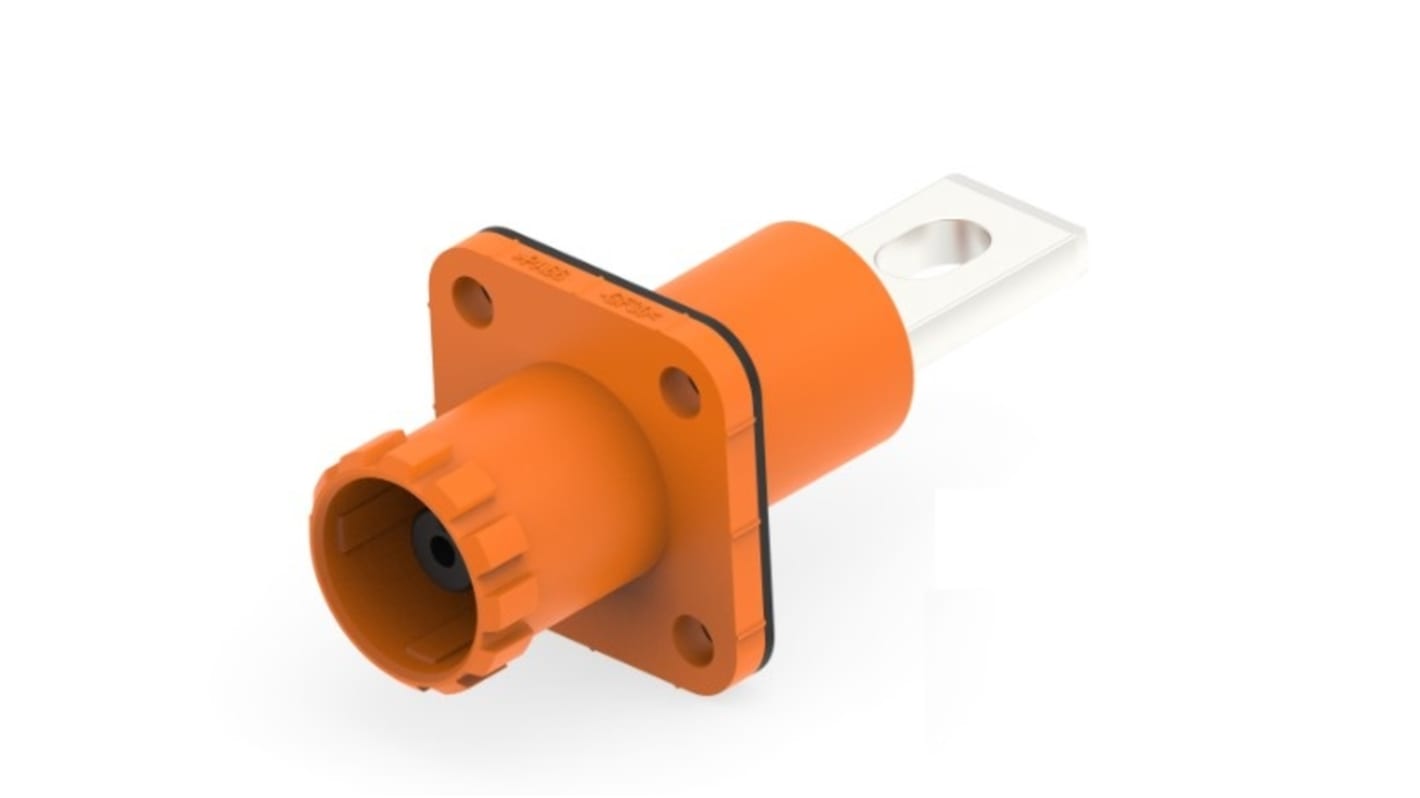

The TE Connectivity Circular Power Connectors has receptacle type housing. It is a HPC 200A series connector. The HPC series focuses on Battery Energy Storage System to provide the high safety and reliability solution with one pole 200A and 1500V high current connector. Bringing the one piece moulding contact, HPC 200A Connector provides excellent temperature rise control capability. Meanwhile, HPC 200A connector installs with high performance temperature sensor to enable 24 Hrs system safety monitor. The smart locking system with 180 degree in line design, provides 360 degree rotation, 12 angles of locking with each 30 degrees, quick lock and press to release function to enable convenient and fast assembly of large volume connectors on site.
Simple field unlocking
Flexible cable assembly
IP67 Safety and reliability
Compliance RoHS with REACH
Excellent temperature rise control
Enable intelligent safety monitoring
Visualization to avoid wrong plugging
Finger proof prevents error finger touch
Flexible direction select and fixed matching
Flexible cable assembly
IP67 Safety and reliability
Compliance RoHS with REACH
Excellent temperature rise control
Enable intelligent safety monitoring
Visualization to avoid wrong plugging
Finger proof prevents error finger touch
Flexible direction select and fixed matching
