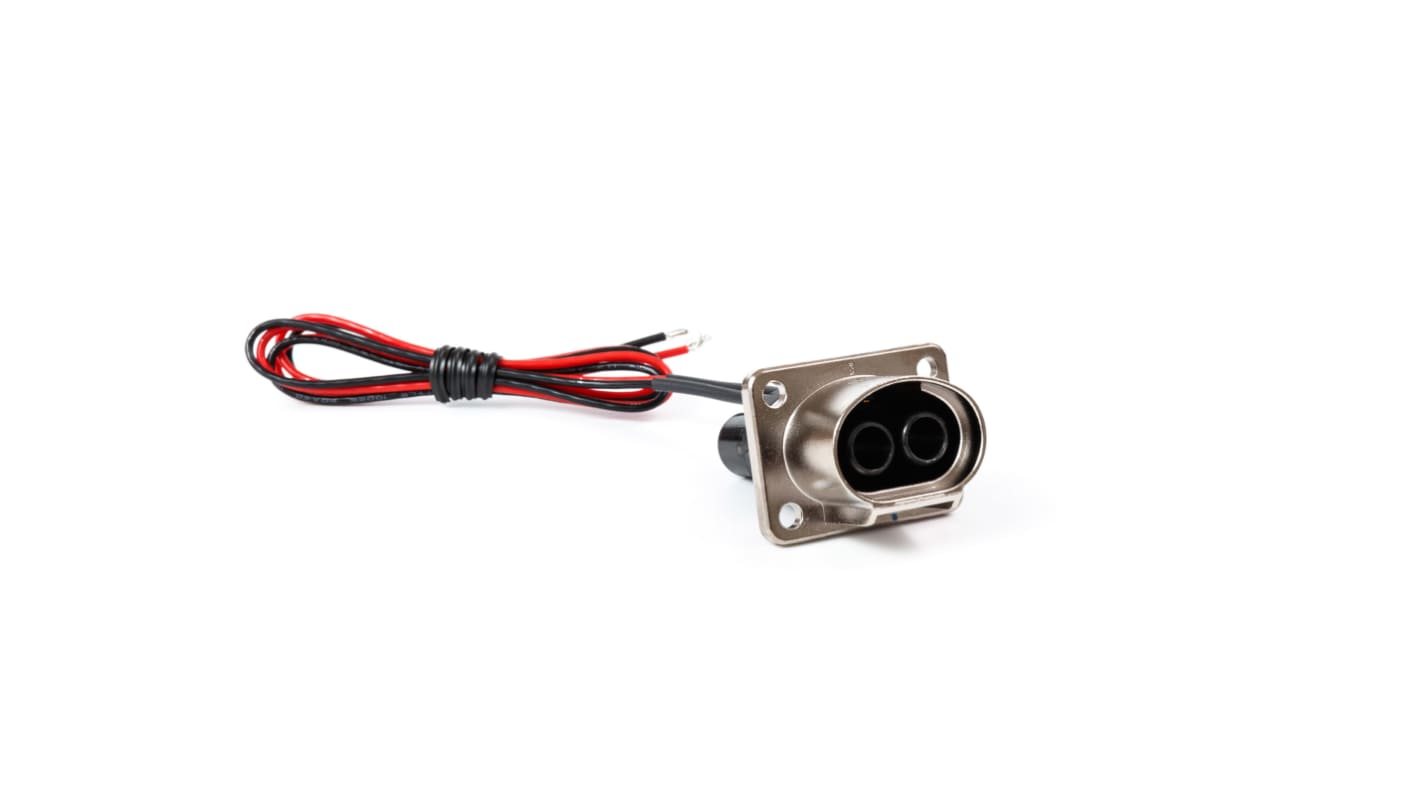

Amphenol Industrial, PL082U Electric Vehicle Connector Male, 10 mm Cable, 60A
- RS Stock No.:
- 560-777
- Mfr. Part No.:
- PL082U-61-10
- Brand:
- Amphenol Industrial
Bulk discount available
Subtotal (1 unit)*
£21.69
(exc. VAT)
£26.03
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- Plus 98 unit(s) shipping from 27 April 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 9 | £21.69 |
| 10 + | £19.96 |
*price indicative
- RS Stock No.:
- 560-777
- Mfr. Part No.:
- PL082U-61-10
- Brand:
- Amphenol Industrial
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Amphenol Industrial | |
| Product Type | Electric Vehicle Connector | |
| Series | PL082U | |
| Current | 60A | |
| Number of Contacts | 2 | |
| Wire Size | 10, 2mm² | |
| Operating Voltage | 1000V | |
| Minimum Operating Temperature | -40°C | |
| Connector Gender | Male | |
| Termination Type | Crimp | |
| Maximum Operating Temperature | 125°C | |
| Contact Gender | Male | |
| Standards/Approvals | No | |
| Width | 26mm | |
| Height | 20.6mm | |
| Depth | 34mm | |
| Cable Length | 10mm | |
| IP Rating | IP67 | |
| Mount Type | Through Hole, Screw | |
| Colour | Orange, Grey | |
| Pin Diameter | 4.5mm | |
| Select all | ||
|---|---|---|
Brand Amphenol Industrial | ||
Product Type Electric Vehicle Connector | ||
Series PL082U | ||
Current 60A | ||
Number of Contacts 2 | ||
Wire Size 10, 2mm² | ||
Operating Voltage 1000V | ||
Minimum Operating Temperature -40°C | ||
Connector Gender Male | ||
Termination Type Crimp | ||
Maximum Operating Temperature 125°C | ||
Contact Gender Male | ||
Standards/Approvals No | ||
Width 26mm | ||
Height 20.6mm | ||
Depth 34mm | ||
Cable Length 10mm | ||
IP Rating IP67 | ||
Mount Type Through Hole, Screw | ||
Colour Orange, Grey | ||
Pin Diameter 4.5mm | ||
RoHS Status: Exempt
- COO (Country of Origin):
- CN
The Amphenol Industrial Powerlok 300 Series 2 position Rectangular Connector within a temperature range of -40°C to +125°C. It has a current rating of 60 A and an operating voltage of 1000 VDC. The connector features a dielectric withstanding voltage of 5000 VDC and supports a minimum of 500 mating cycles, making it reliable for high performance electrical applications.
Shielded
IP67 protection rated
Automatic secondary lock
Electrical interlock
