RS Better World
ABB 1 22kW EV Charging Point, 32 A O/P, 320 V ac → 480V
- RS Stock No.:
- 206-9801
- Mfr. Part No.:
- 6AGC081281
- Brand:
- ABB
Currently unavailable
We don't know if this item will be back in stock, RS intend to remove it from our range soon.
Our Better World range features products that make it easy for you to make a greener product choice you can trust.
- RS Stock No.:
- 206-9801
- Mfr. Part No.:
- 6AGC081281
- Brand:
- ABB
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | ABB | |
| Product Type | EV Charging Point | |
| Output Current | 32A | |
| Output Power | 22kW | |
| Maximum Output Voltage | 480V | |
| Number of Sockets | 1 | |
| Electrical Phase | 3 | |
| Length | 320mm | |
| Width | 195mm | |
| Height | 110mm | |
| Standards/Approvals | EN 61000-3-3, UL 2231-2, EN 61000-6-1, IEC/EN 62311, EN 61000-3-11, UL, EN 300 330 V2.1.1, CSA C22.2. NO.280, EN 61000-3-2, EN 61000-6-3, IEC/UL 62479, CB, CE RED- WLAN / RFID / E-UTRA: EN 300 328 V2.1.1, EN 61000-6-4, IEC/UL 62955 TuV conforming to UL 2594, EN 301 908-13 EN 50470-1, UL 1998, IEC/EN 61851-1, EN 61000-3-12, EN 50470-3, EN 301 908-1 V11.1.2, FCC Part 15 Class B ENERGY STAR, Certification CE, MID, IEC 61851-21-2, EN 61000-6-2, UL 2231-1 | |
| Better World Claim | Renewable Energy Solution | |
| Better World Product | Yes | |
| Minimum Output Voltage | 320V ac | |
| Select all | ||
|---|---|---|
Brand ABB | ||
Product Type EV Charging Point | ||
Output Current 32A | ||
Output Power 22kW | ||
Maximum Output Voltage 480V | ||
Number of Sockets 1 | ||
Electrical Phase 3 | ||
Length 320mm | ||
Width 195mm | ||
Height 110mm | ||
Standards/Approvals EN 61000-3-3, UL 2231-2, EN 61000-6-1, IEC/EN 62311, EN 61000-3-11, UL, EN 300 330 V2.1.1, CSA C22.2. NO.280, EN 61000-3-2, EN 61000-6-3, IEC/UL 62479, CB, CE RED- WLAN / RFID / E-UTRA: EN 300 328 V2.1.1, EN 61000-6-4, IEC/UL 62955 TuV conforming to UL 2594, EN 301 908-13 EN 50470-1, UL 1998, IEC/EN 61851-1, EN 61000-3-12, EN 50470-3, EN 301 908-1 V11.1.2, FCC Part 15 Class B ENERGY STAR, Certification CE, MID, IEC 61851-21-2, EN 61000-6-2, UL 2231-1 | ||
Better World Claim Renewable Energy Solution | ||
Better World Product Yes | ||
Minimum Output Voltage 320V ac | ||
- COO (Country of Origin):
- CN

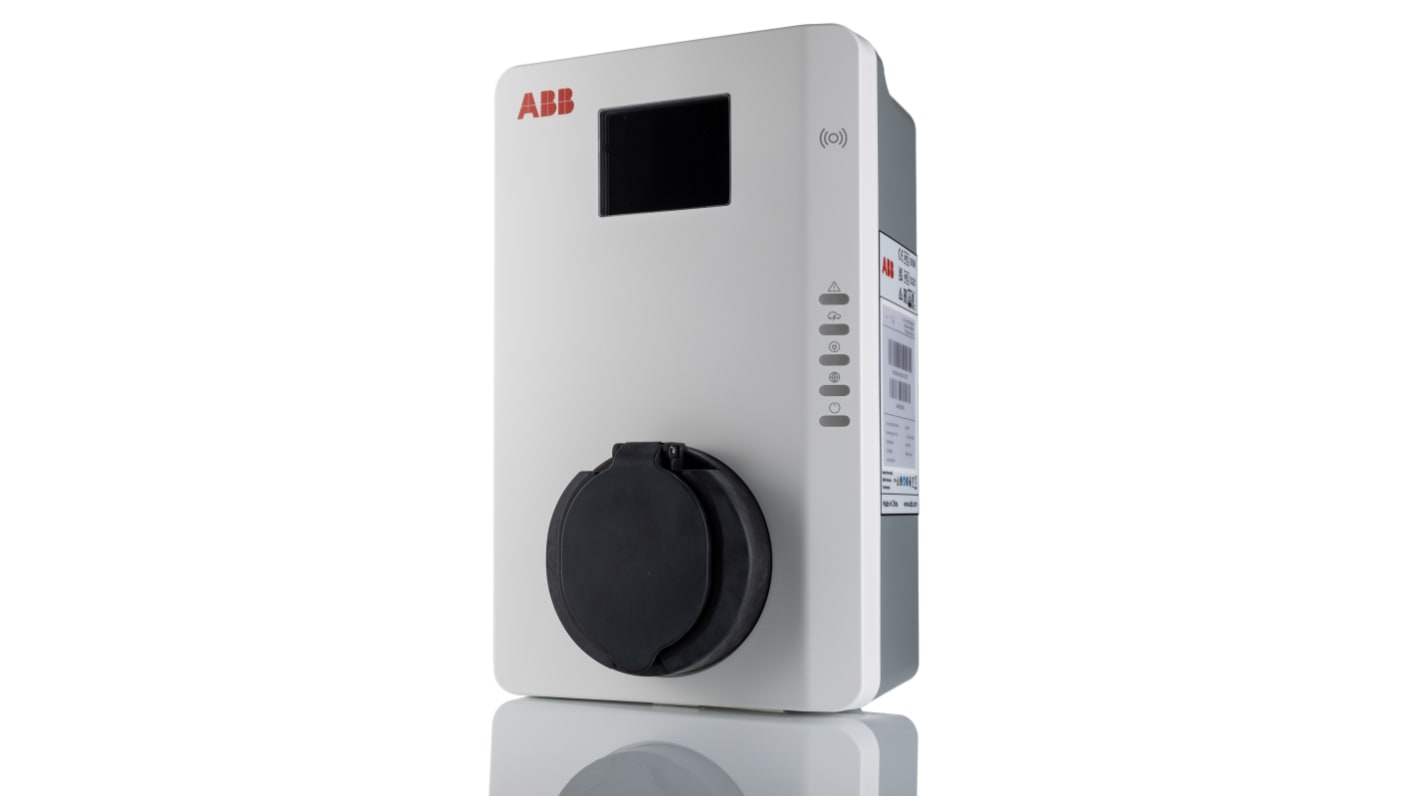

ABB EV Charging Point, 22kW Output Power, 32A Output Current - 6AGC081281
This EV charging point is a high-performance AC charging solution, specifically designed for the efficient charging of electric vehicles. It features a robust wall-mounted design with dimensions of 320mm in length, 195mm in width, and 110mm in height. This unit is equipped with a Type 2 socket and operates at 22 kW output power, making it suitable for a wide range of applications.
Features & Benefits
• Enables fast charging with a 22 kW output power
• Supports three-phase power for effective energy distribution
• Integrated RFID technology for enhanced security and monitoring
• Offers multiple connectivity options including WiFi and 4G
• Designed for dynamic and static load management
• Built to withstand various weather conditions with IP54 protection
Applications
• Ideal for installation in commercial car parks
• Suitable for use with renewable energy sources
• Utilised in homes for convenient EV charging solutions
• Effective for fleet operations requiring frequent vehicle charging
What are the communication methods supported by this charging unit?
This unit supports several communication protocols including Wi-Fi, Ethernet, Bluetooth, and Modbus, allowing for flexible remote monitoring and control.
How is the charging point designed to manage electrical safety?
It includes integrated overload protection, a residual current device, and surge suppression features to ensure safe operation during charging.
What is the operational temperature range for this charging point?
The device can operate effectively in ambient temperatures ranging from -30°C to +50°C, making it versatile for different environments.
Can this unit support outdoor installations?
Yes, with its IP54 rating, it is designed to protect against water spray and dust, making it suitable for outdoor use.
