ABB 1 22kW EV Charging Point, 32 A O/P, 320 V ac → 415V
- RS Stock No.:
- 206-9799
- Mfr. Part No.:
- 6AGC081279 TAC-W22-T-0
- Brand:
- ABB
Subtotal (1 unit)*
£622.43
(exc. VAT)
£746.92
(inc. VAT)
FREE delivery for orders over £60.00
Last RS stock
- Final 1 unit(s), ready to ship
Units | Per unit |
|---|---|
| 1 + | £622.43 |
*price indicative
Better World
Our Better World range features products that make it easy for you to make a greener product choice you can trust. Click here to find out more.
- RS Stock No.:
- 206-9799
- Mfr. Part No.:
- 6AGC081279 TAC-W22-T-0
- Brand:
- ABB
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | ABB | |
| Product Type | EV Charging Point | |
| Output Current | 32A | |
| Maximum Output Voltage | 415V | |
| Output Power | 22kW | |
| Number of Sockets | 1 | |
| Electrical Phase | 3 | |
| Length | 195mm | |
| Width | 110mm | |
| Height | 320mm | |
| Standards/Approvals | CE Declaration, EN 61851-23, RoHS, EN 301 908-2, EN 61000-6-2, IEC 60721-3-2: IE23, EN 61851-1, EN 61000-6-3 | |
| Better World Claim | Renewable Energy Solution | |
| Better World Product | Yes | |
| Minimum Output Voltage | 320V ac | |
| Select all | ||
|---|---|---|
Brand ABB | ||
Product Type EV Charging Point | ||
Output Current 32A | ||
Maximum Output Voltage 415V | ||
Output Power 22kW | ||
Number of Sockets 1 | ||
Electrical Phase 3 | ||
Length 195mm | ||
Width 110mm | ||
Height 320mm | ||
Standards/Approvals CE Declaration, EN 61851-23, RoHS, EN 301 908-2, EN 61000-6-2, IEC 60721-3-2: IE23, EN 61851-1, EN 61000-6-3 | ||
Better World Claim Renewable Energy Solution | ||
Better World Product Yes | ||
Minimum Output Voltage 320V ac | ||
- COO (Country of Origin):
- CN

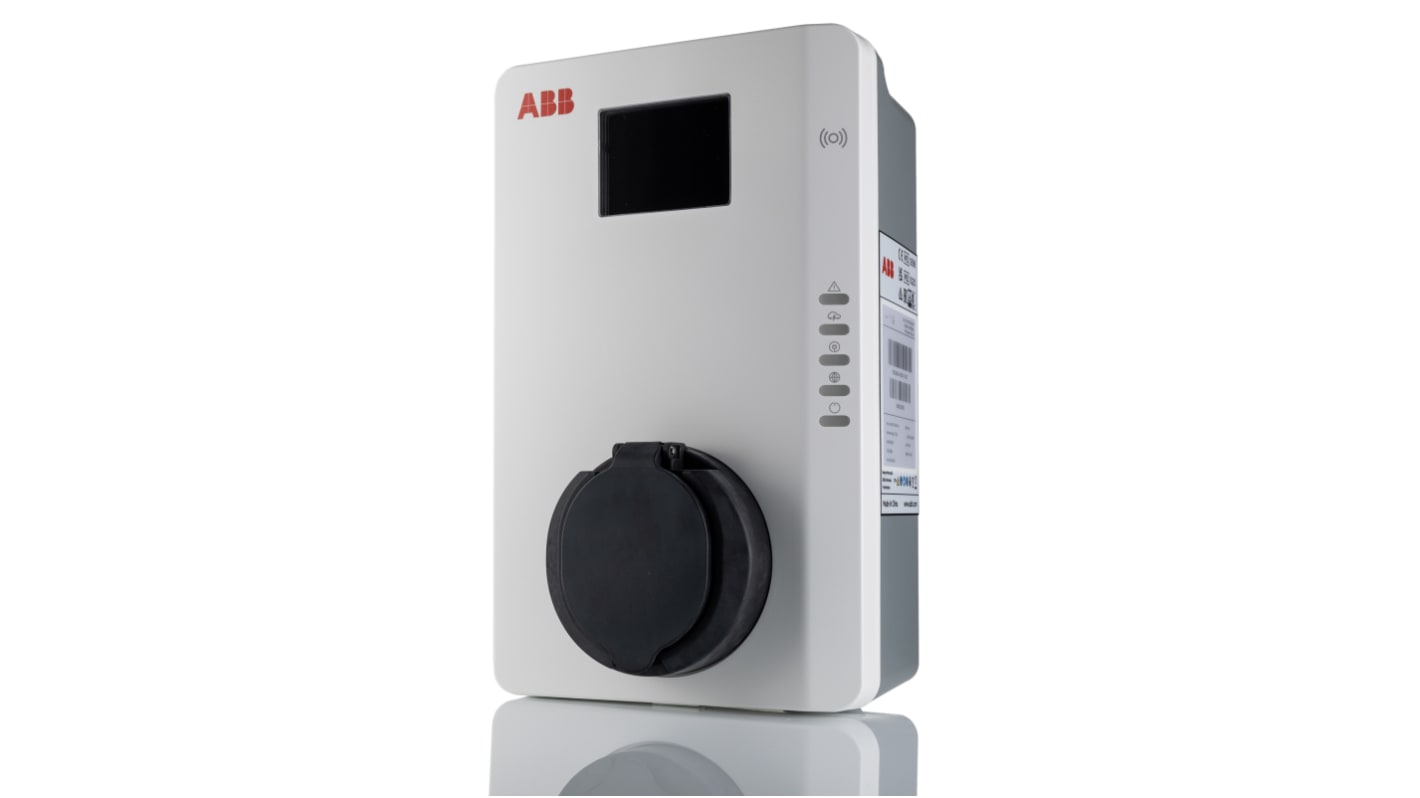

ABB EV Charging Point, 32A Output Current, 22kW Output Power - 6AGC081279 TAC-W22-T-0
This EV charging point is designed for efficient charging of electric vehicles. With a compact height of 320mm and a length of 195mm, it meets various installation requirements. This three-phase EV charger offers fast charging capabilities, suitable for both commercial and residential applications. The output voltage ranges from 320 to 480V AC, delivering up to 22kW of power for effective vehicle charging.
Features & Benefits
• Supports three-phase connections for efficient power delivery
• Incorporates smart EV charging connectivity options
• Compatible with WiFi, Ethernet, Bluetooth, and Modbus
• Designed for wall mounting to optimise space
• Enables renewable energy integration for sustainability
Applications
• Suitable for commercial electric vehicle charging stations
• Compatible with a variety of electric vehicles
• Supports fleet vehicle charging solutions
• Useful for businesses pursuing sustainable energy practices
Can it charge multiple vehicles simultaneously?
No, it has one socket for a single vehicle connection.
Will it integrate with renewable energy systems?
Yes, it is designed for compatibility with renewable energy systems.
Can it be monitored remotely?
Yes, smart connectivity enables remote monitoring options.
