MOXA RJ45, 10/100 T Ethernet Media Converter, Single Mode, 100Mbps, Full Duplex 40 km
- RS Stock No.:
- 256-3653
- Mfr. Part No.:
- IMC-101-S-SC-T
- Brand:
- MOXA
Subtotal (1 unit)*
£495.02
(exc. VAT)
£594.02
(inc. VAT)
FREE delivery for orders over £60.00
Temporarily out of stock
- 1 unit(s) shipping from 02 November 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £495.02 |
*price indicative
- RS Stock No.:
- 256-3653
- Mfr. Part No.:
- IMC-101-S-SC-T
- Brand:
- MOXA
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | MOXA | |
| Product Type | Ethernet Media Converter | |
| Number of Ports | 1 | |
| Minimum Operating Temperature | 0°C | |
| Maximum Operating Temperature | 60°C | |
| Standards/Approvals | IEC 60068-2-3, EN 62368-1, UL 508, UL 61010-2-201, IEC 60068-2-2, EN 55032/35, IEC 60068-2-1 | |
| Fibre Operating Mode | Full Duplex | |
| Maximum Transfer Distance | 40km | |
| Fibre Type | Single Mode | |
| Connection Port | RJ45, 10/100 T | |
| Maximum Data Transfer Rate | 100Mbps | |
| Network Speed | 100Mbps | |
| Select all | ||
|---|---|---|
Brand MOXA | ||
Product Type Ethernet Media Converter | ||
Number of Ports 1 | ||
Minimum Operating Temperature 0°C | ||
Maximum Operating Temperature 60°C | ||
Standards/Approvals IEC 60068-2-3, EN 62368-1, UL 508, UL 61010-2-201, IEC 60068-2-2, EN 55032/35, IEC 60068-2-1 | ||
Fibre Operating Mode Full Duplex | ||
Maximum Transfer Distance 40km | ||
Fibre Type Single Mode | ||
Connection Port RJ45, 10/100 T | ||
Maximum Data Transfer Rate 100Mbps | ||
Network Speed 100Mbps | ||
- COO (Country of Origin):
- TW

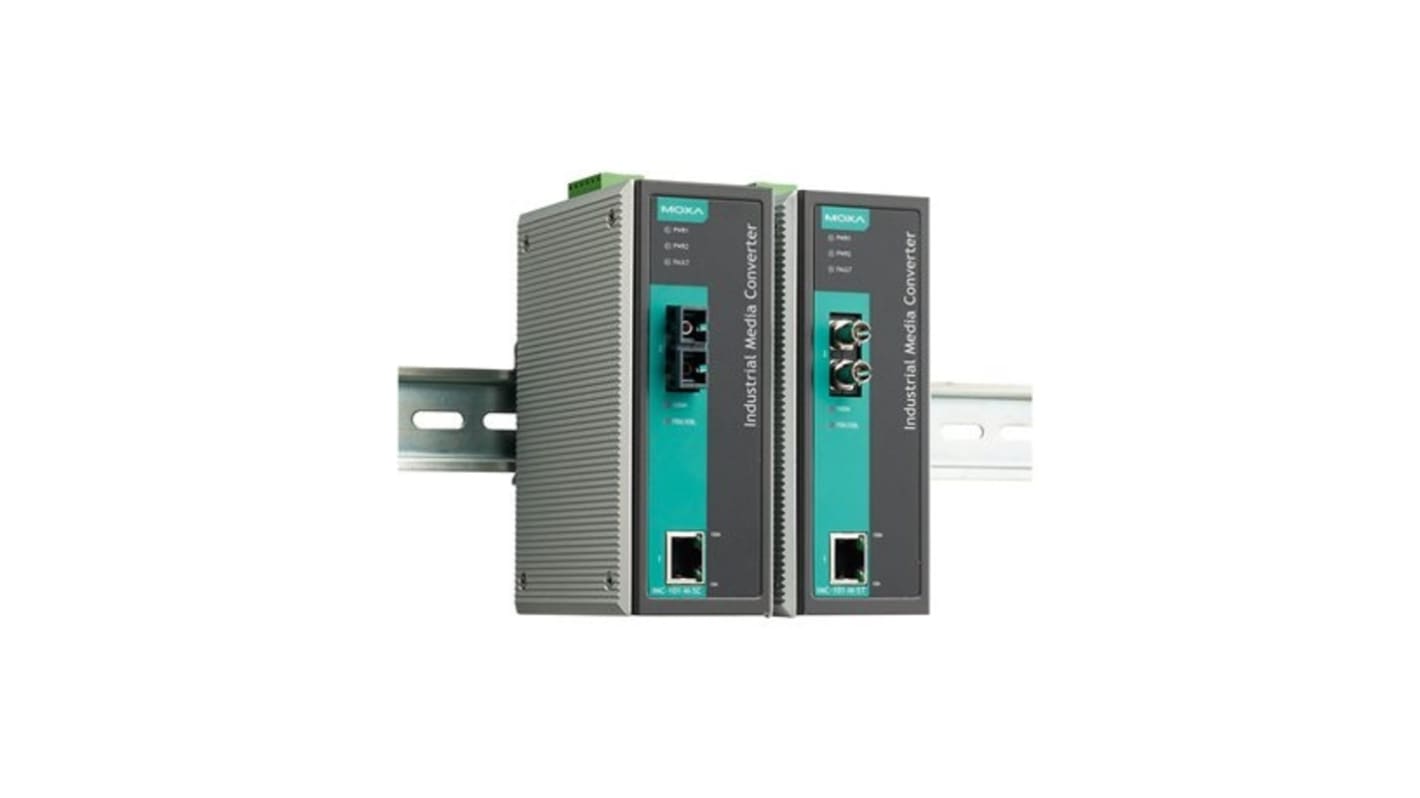

The Moxa Europe IMC-101 industrial media converters provide industrial-grade media conversion between 10/100BaseT(X) and 100BaseFX (SC/ST connectors). The IMC-101 converters’ reliable industrial design is excellent for keeping your industrial automation applications running continuously and each IMC-101 converter comes with a relay output warning alarm to help prevent damage and loss.
-40 to 75°C operating temperature range (-T models)
Designed for hazardous locations (Class 1 Div. 2/Zone 2, IECEx)
Link Fault Pass-Through (LFPT)
Redundant power inputs
