- RS Stock No.:
- 198-1198
- Mfr. Part No.:
- KSZ9131MNXI
- Brand:
- Microchip
Available to back order for despatch 25/06/2024
Added
Price Each (In a Tray of 260)
£3.22
(exc. VAT)
£3.86
(inc. VAT)
Units | Per unit | Per Tray* |
260 + | £3.22 | £837.20 |
*price indicative |
- RS Stock No.:
- 198-1198
- Mfr. Part No.:
- KSZ9131MNXI
- Brand:
- Microchip
Technical Reference
Legislation and Compliance
Product Details

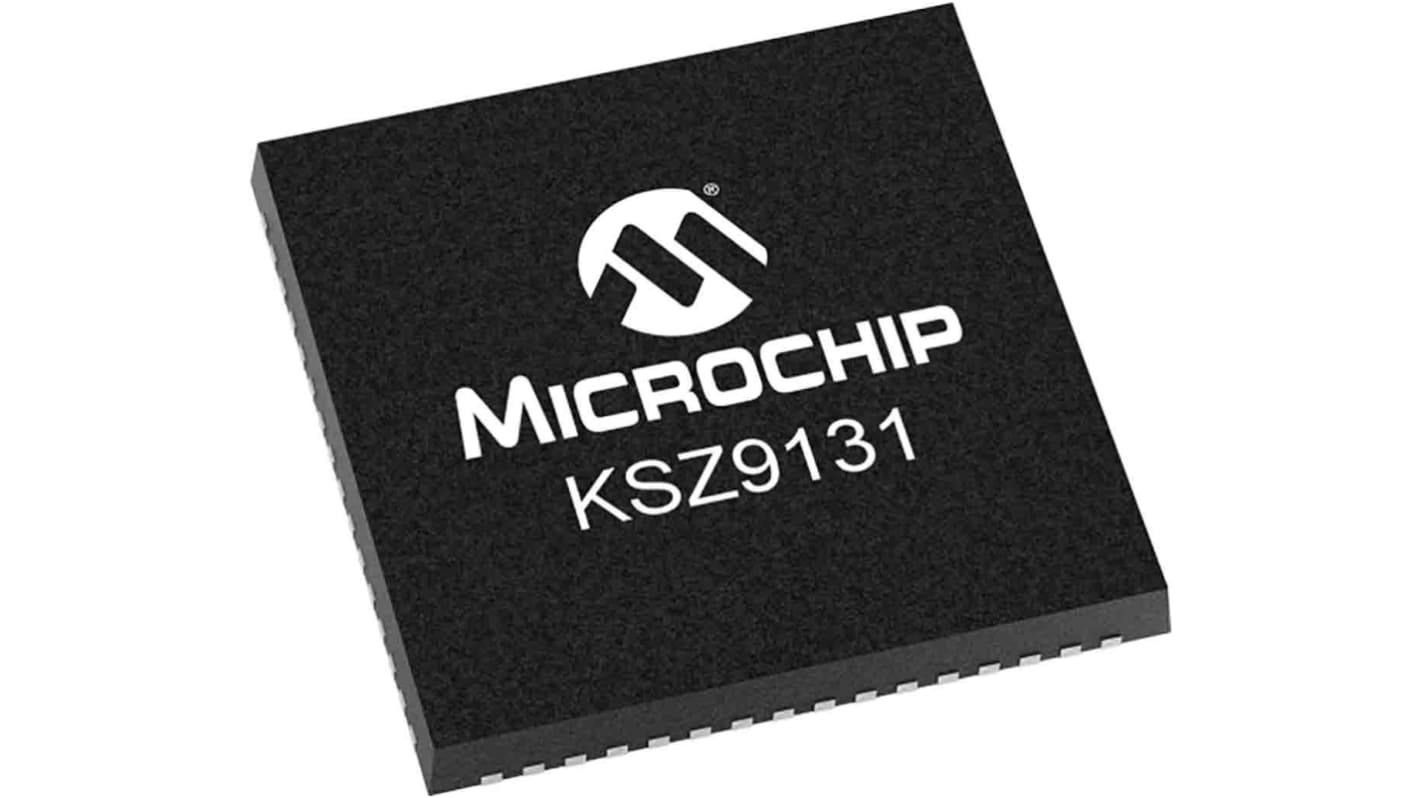

The Microchip KSZ9131 is a fully integrated Ethernet transreceiver with triple-speed (10Base-T/100Base-TX/1000Base-T) for transmission and reception of data on standard CAT-5, CAT-5e and CAT6 unshielded twisted pair (UTP) cable.
Power-down and power-saving modes
Interrupt pin option
Automatic detection and correction of pair swaps, pair skew, and pair polarity
MDC/MDIO management interface for PHY register configuration
Loopback modes for diagnostics
Baseline wander correction
Programmable LED outputs for link, activity, and speed
Wake-on-LAN (WOL) support with robust custom-packet detection
Interrupt pin option
Automatic detection and correction of pair swaps, pair skew, and pair polarity
MDC/MDIO management interface for PHY register configuration
Loopback modes for diagnostics
Baseline wander correction
Programmable LED outputs for link, activity, and speed
Wake-on-LAN (WOL) support with robust custom-packet detection
Specifications
Attribute | Value |
---|---|
IC Type | Transceiver IC |
Number of Transceivers | 1 |
Data Rate | 10 Mbps, 100 Mbps, 1000Mbps |
Mounting Type | Surface Mount |
Package Type | QFN |
Pin Count | 64 |
Typical Operating Supply Voltage | 3.3 V |
